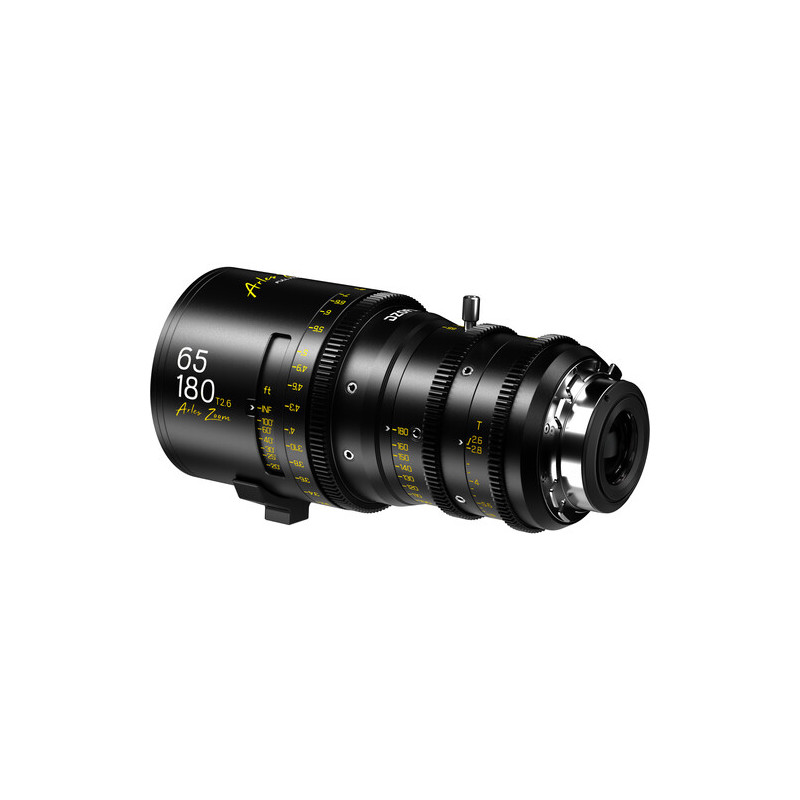

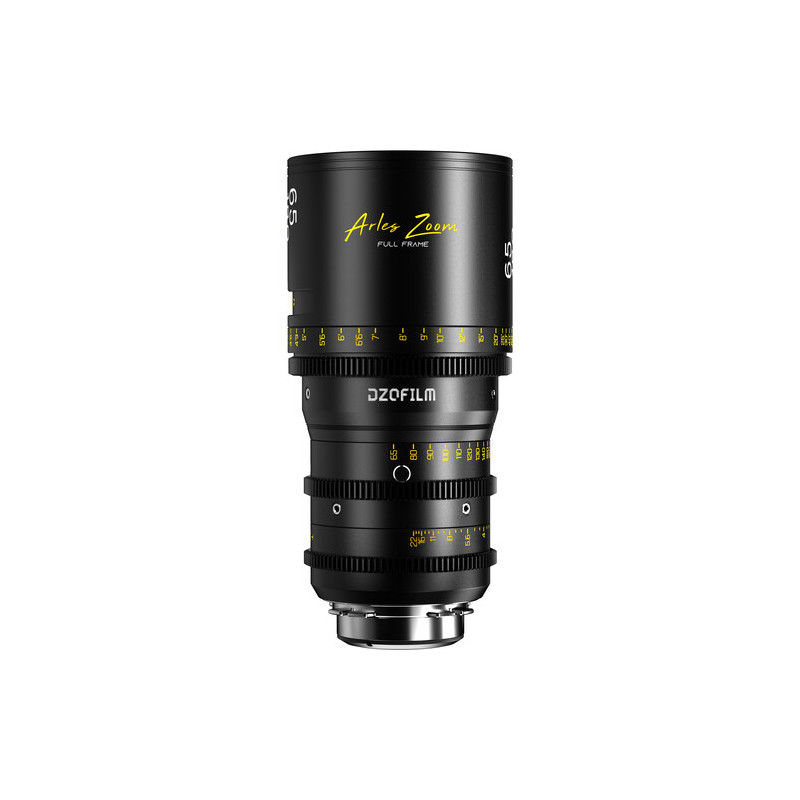

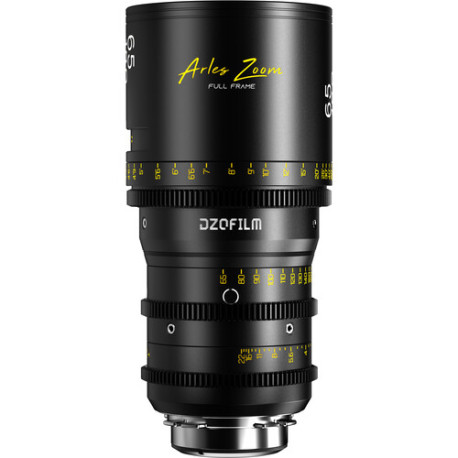

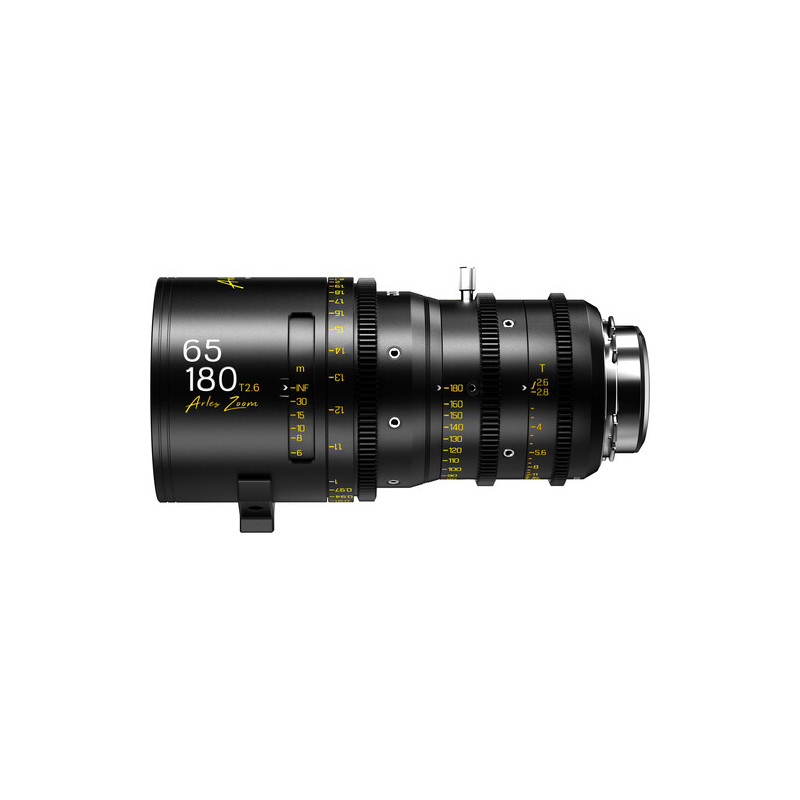

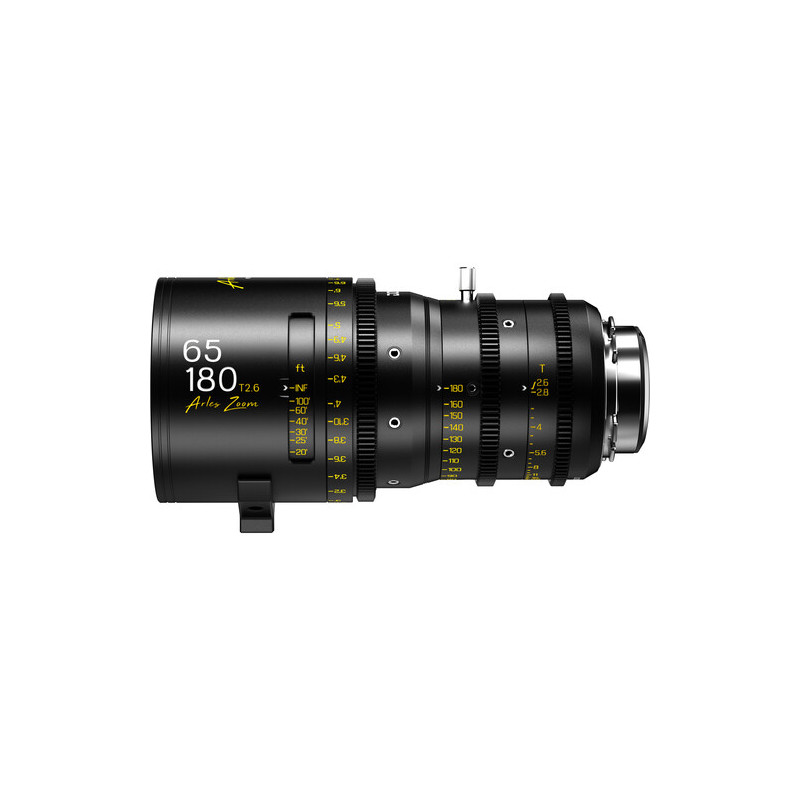

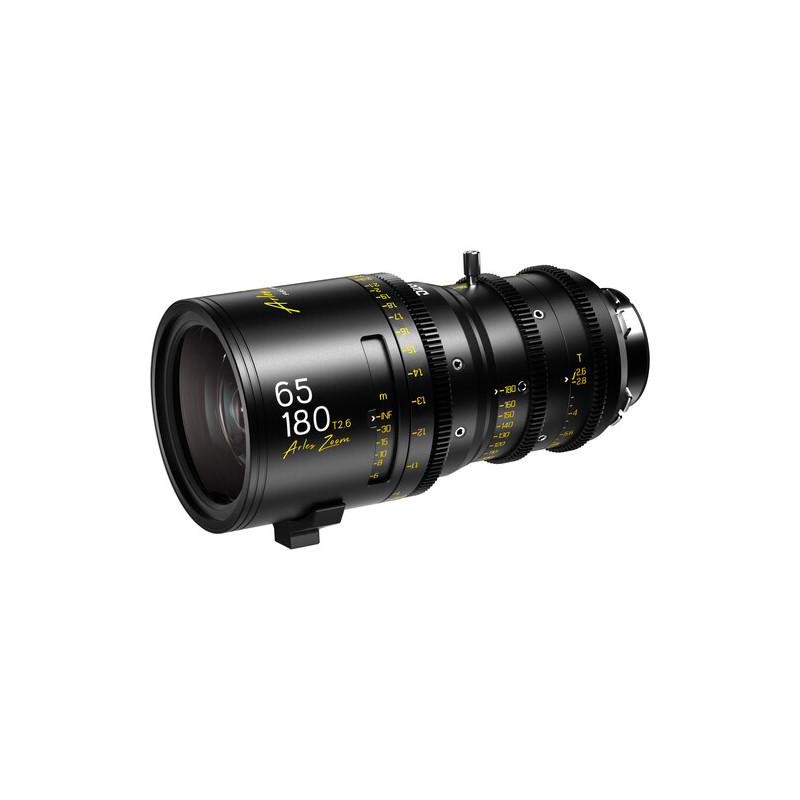

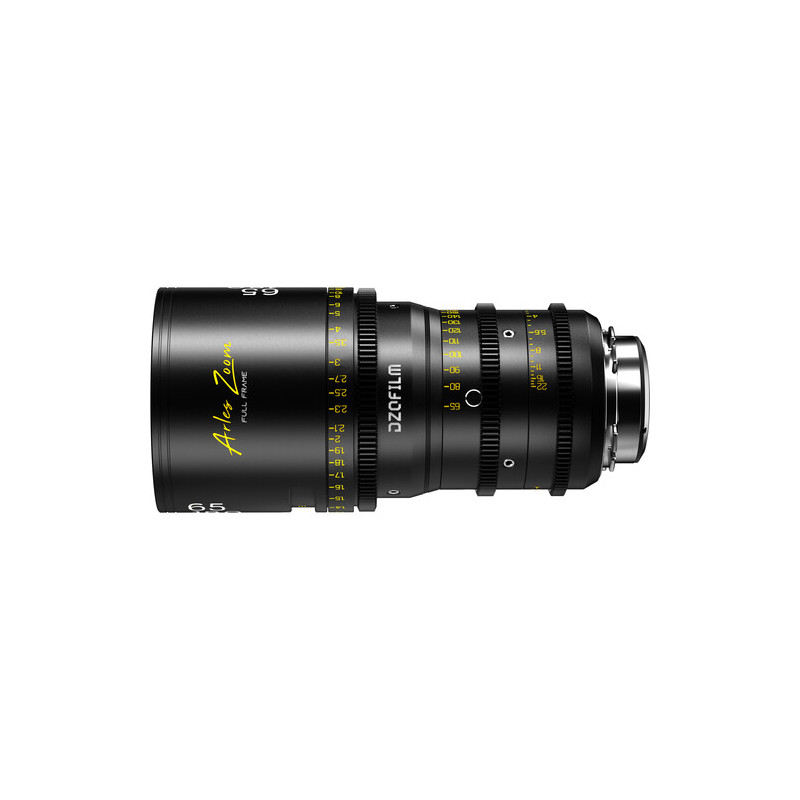

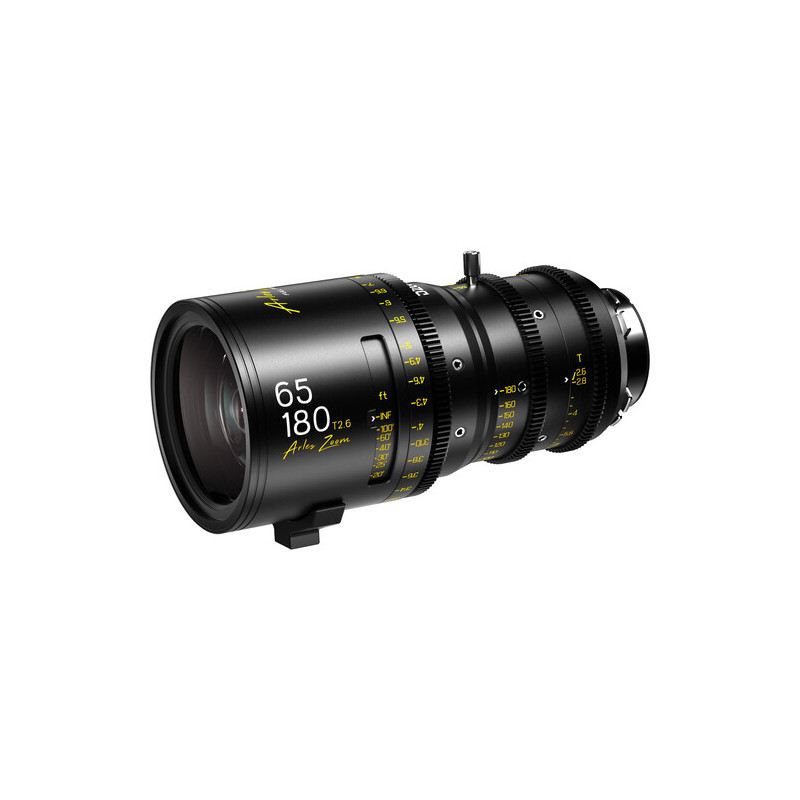

Lens Dzofilm Arles Zoom 65-180mm f/2.6 - PL Mount

Description

Constant light intensity T2.6

The maximum aperture of the lens is T2.6, and this value is available throughout the entire range from 65 to 180 mm. The constant light output makes it easier to work with zoom while shooting, as there is no need to compensate for the change in exposure when switching between different focal lengths. T2.6 allows for working with a shallower depth of field and provides the ability to separate the subject from the background, which is especially useful in portrait, dramatic and other cinematic compositions. The 16 iris blades contribute to the smooth rendering of out-of-focus areas.

Precise mechanical control

The lens is equipped with 0.8 MOD mechanical gears for focus and iris, making it suitable for use with standard cinema follow focus and other lens control systems. The focus ring offers 270° rotation, providing a wide enough range for precise focus adjustment. The zoom mechanism has 100° rotation and is manually operated, allowing controlled changes in focal length during shooting. Focus scales are available in both metric and imperial systems.

Close focus and telephoto perspective

The minimum focusing distance is 89 cm, measured from the camera sensor. This allows for relatively close positioning to the subject while retaining the characteristics of telephoto focal lengths. The 65 to 180 mm range provides the opportunity for compressed perspective and tight framing, which is useful for portraits, close-ups, sports scenes and other situations where the photographer or operator cannot or does not wish to physically get close to the subject.

ARRI PL mount and Full-Frame coverage

DZOFILM ARLES ZOOM 65-180MM F/2.6 is equipped with an interchangeable mount, with an ARRI PL mount included. This design provides flexibility in configuring the system and allows the lens to be used with professional cinema cameras compatible with the PL standard. The Full-Frame coverage with a 43.5 mm image circle allows the entire focal range to be used on full-frame sensors. The lens has no electronic communication with the camera, which means that focus, zoom and iris control are performed mechanically.

Construction suitable for professional work

The lens has a front diameter of 95 mm and a length of 19 cm, which allows its integration into professional shooting configurations. Its weight is 1.78 kg, which reflects the design of a cinema zoom lens with mechanical control and Full-Frame coating. The provided 86 mm filter thread allows the use of compatible filters according to the specific requirements of the shooting situation. The lack of optical stabilization means that image stabilization must be provided by the camera, rig, gimbal or other external system when such functionality is required.

Zoom lens for controlled cinema work
The DZOFILM ARLES ZOOM 65-180MM F/2.6 PL MOUNT combines 2.8x manual zoom, constant T2.6 aperture, Full-Frame coating, ARRI PL mount and mechanical cinema controls in one lens. The 65 to 180mm focal range allows for quick adaptation of the frame to different subjects and scenes, while the 270° focal rotation provides precise focus control. With its 0.8 MOD gearing, 16-blade iris, 86mm filter thread and 89cm minimum focusing distance, the lens is configured for professional cinema and video workflows.

Box contents
