Description

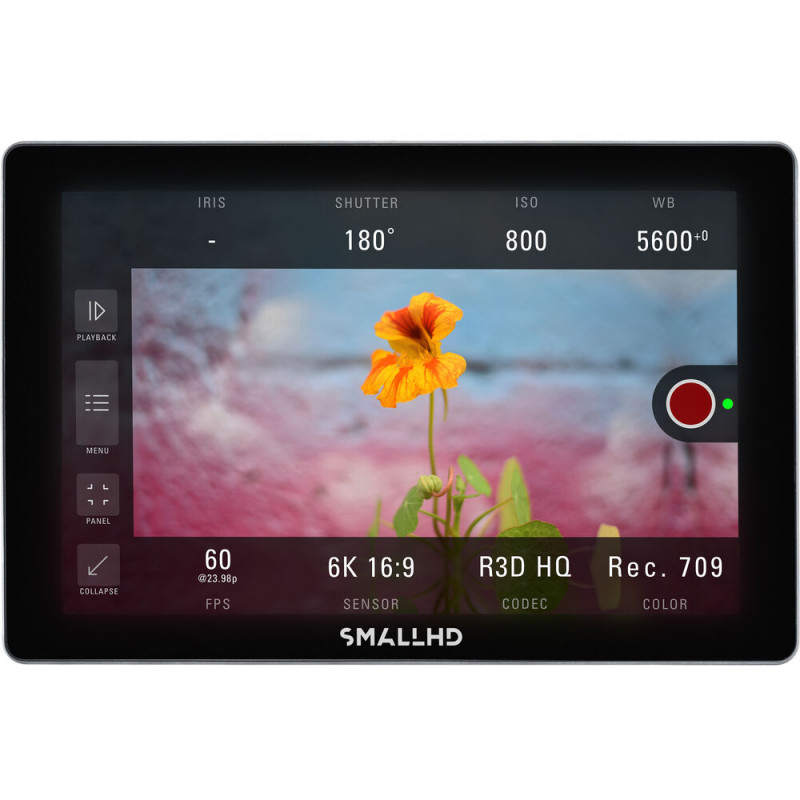

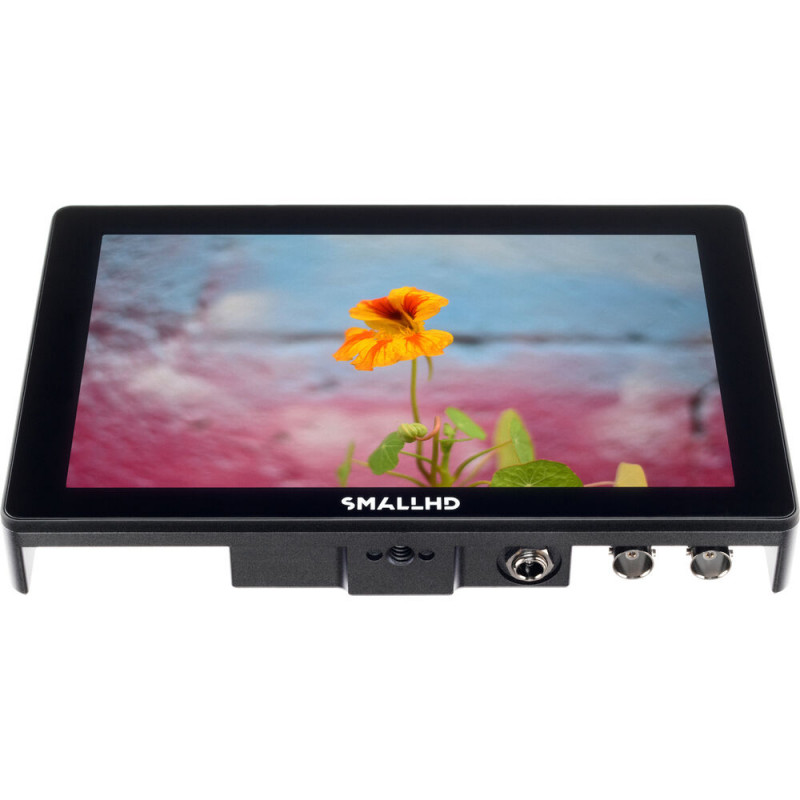

SmallHD INDIE 7 is an on-camera monitor with 7 "1920 x 1200 touch IPS LCD panel and 10-bit processing that supports up to 4K UHD video. The display has a large viewing angle without significant changes in color and contrast, and high brightness of 1000 cd / m² allows trouble-free operation in bright daylight SmallHD INDIE 7 displays 8-bit images, but internal processing is 10-bit.

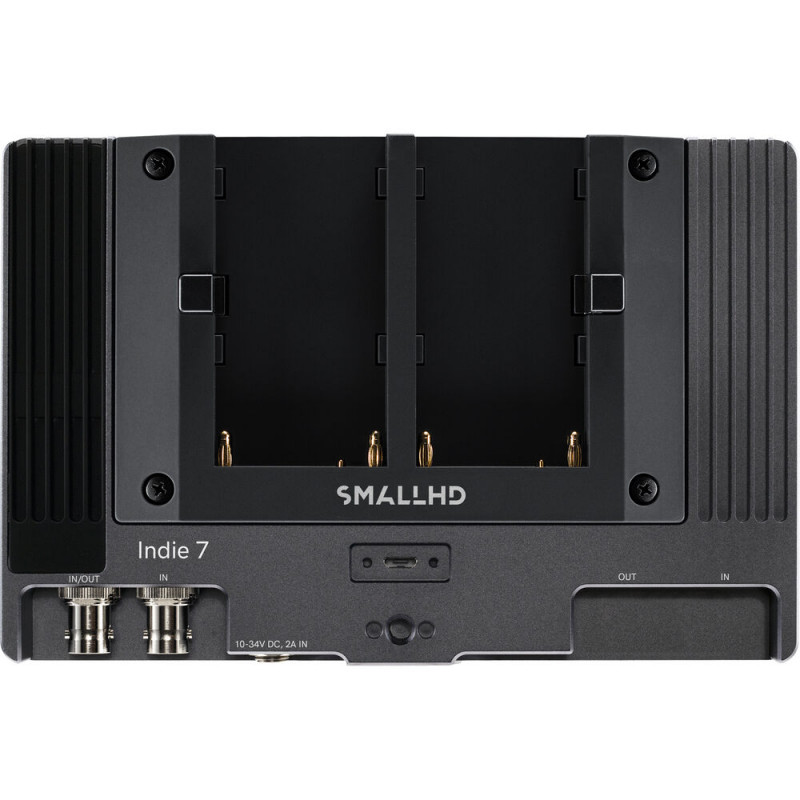

The rugged aluminum body of the SmallHD 702 Touch 7 "allows replacement of the battery board and can be powered by optional batteries (L-Series, V-Mount, Gold Mount). The standard slots are for Sony L. has 3G-SDI and HDMI inputs and outputs, 3.5mm headphone jack, SD card slot and 4 1/4 "-20 sockets for mounting accessories.
The firmware retains all the benefits of OS3 and develops them by offering an intuitive interface that, combined with the touchscreen, allows for seamless navigation. Instead of using standard menus, different functions can be applied to different pages and tabs with easy switching, easy settings, etc.
Features of the SmallHD 702 Touch include:
2x and 4x pixel zoom with pinch zoom
Set and customized ratios of the parties
Custom scale (underscan only)
Anamorphic correction 1.33x, 1.5x, 1.66x, 2.0x
Automatically / manually rotate and rotate the image
Cross-conversion
Focus assistant (colors) and focus picking with adjustment
False Color: Spectrum, ARRI-style and with tinctures
Zebra: Dual, with setting
Waveform
RGB parade
Histogram: Luma and RGB
Static image
Custom LUTs, LUT import
Audio metrics up to 8 channels
and others.
Display diagonal: 7.0 "/ 17.8 cm
Ratio: 16: 9
Viewing angle: 160 °
Max. brightness: 1000 cd / m2
Contrast: 1000: 1
Color: 10-Bit (1.07 billion colors)
PPI: 323 ppi
Color Gamut: 100% Rec. 709
Functions: Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra and others.

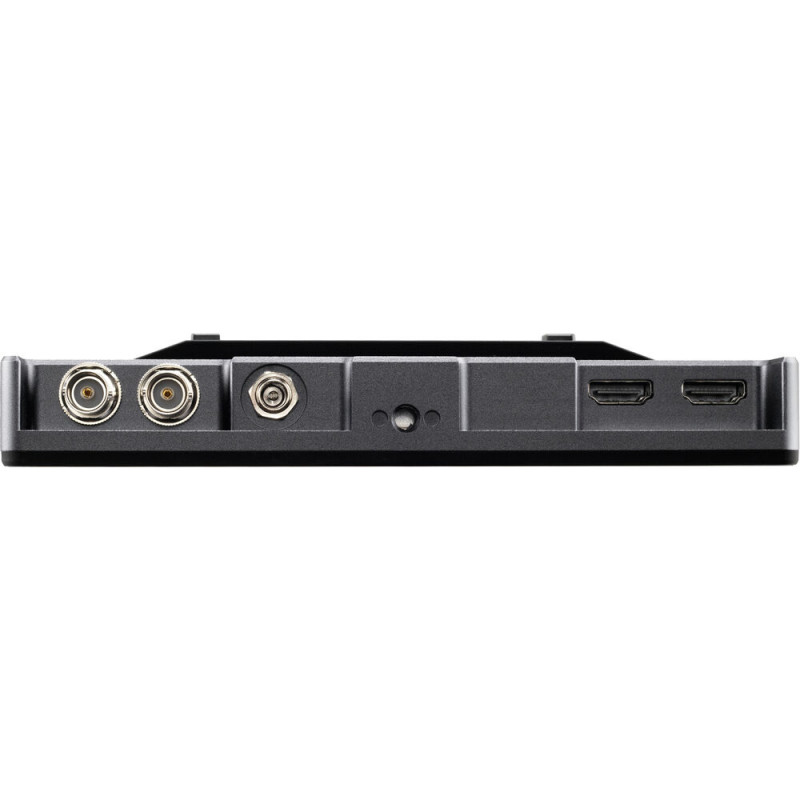

I / O
Video: 1x BNC (3G-SDI) input, 1x BNC (3G-SDI) output, 1x HDMI Type A input, 1x HDMI Type A output
Audio: SDI, built-in HDMI; 1x 1/8 "/ 3.5mm Headphone output
Power supply: 1x Barrel Out
Other: 1x USB 2.0 (Micro-USB)
Supported formats:
Video:
HDMI (10-Bit 4: 4: 4 RGB, YCC)
UHD 4K: 30 / 29.97 / 24 / 23.98
1080p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
1080i: 120 / 119.88 / 100/60 / 59.94 / 50
720p: 120 / 119.88 / 100/60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
576p: 200/100/50
480p: 240 / 239.76 / 120 / 119.88 / 100/60 / 59.94
480i: 240 / 239.76 / 120 / 119.88 / 100/60 / 59.94
576i: 200/100/50
SDI (10-Bit 4: 2: 2 YCC)
1080p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50
576p: 50/25
480p: 60
576i: 50
480i: 59.94
Dimensions: 18.01 x 11.86 x 3.35 cm
Weight: 737 g
