Description
Discover your creativity with the Canon EOS 80D - a powerful camera suitable for sports, portrait, landscape and street photography as well as video production. The camera offers exceptional image quality full of detail, color and atmosphere thanks to its 24.2 megapixel APS-C CMOS sensor and DIGIC 6 processor. The smart viewfinder has almost 100% coverage, and the Vari-Angle Clear View LCD II display lets you compose at any angle. Dual Pixel CMOS AF gives you accurate autofocus and smooth video transition with up to 1080p resolution and 60fps. The Wi-Fi and NFC connectivity of the EOS 80D with compatible smart devices lets you easily and quickly share your photos and videos.
Lens Canon EF 70-300mm f / 4-5.6L IS USM
EF 70-300mm f / 4-5.6L IS USM
The EF 70-300mm f / 4-5.6L IS USM is part of Canon's prestigious L Series, combining top features with a flexible zoom range and superb image quality in a robust, compact design.
Benefits
• High-performance zoom lens
• Representative of Canon's established L Series
• Image stabilizer for 4 steps slower shutter speed
• Two UD elements
• High resistance to dust and water
• Round diaphragm with 8 elements
• Quiet and fast autofocus
• Compatible with tripod bracket
High-performance zoom lens
With a focal length range of 70-300mm, the EF 70-300mm f4-5.6L IS USM is a compact and versatile zoom lens that delivers exceptional image quality. Ideal for wildlife and sports photography as well as photojournalism and portrait photography.
Quality of the L Series
Canon's Professional L Series offers the best in precision EF optics. The L Series lenses combine excellent performance, superior ease of operation and high dust and moisture resistance.
Image stabilizer for 4 steps slower shutter speed
Image stabilizer (4 steps lower shutter speed) - Designed specifically for the lens focal length range - prevents blurry images that may occur during shooting without a tripod or at a slow shutter speed. Auto Panorama recognition of the camera provides effective tracking of moving subjects and since the image stabilization system is built into the lens, the results are visible through the viewfinder during frame composing.
Two UD elements
Chromatic distortion is almost completely eliminated by using two UD elements for optimum image quality and sharpness.
Creative background defocus
The 8-element EF 70-300mm f4-5.6L IS USM circular aperture creates beautifully defocused backgrounds, focusing on the subject with dramatic effect.
Fast and quiet autofocus
The ultrasonic annular USM motor uses vibration with ultrasonic frequency to ensure extremely fast and almost silent autofocus. High-speed processor and optimized AF algorithms make autofocus even faster. The excellent holding torque ensures precise reaching of the focus point without going beyond it. Manual electronic focus is available at any time without the need to turn off the autofocus mode.
Characteristics

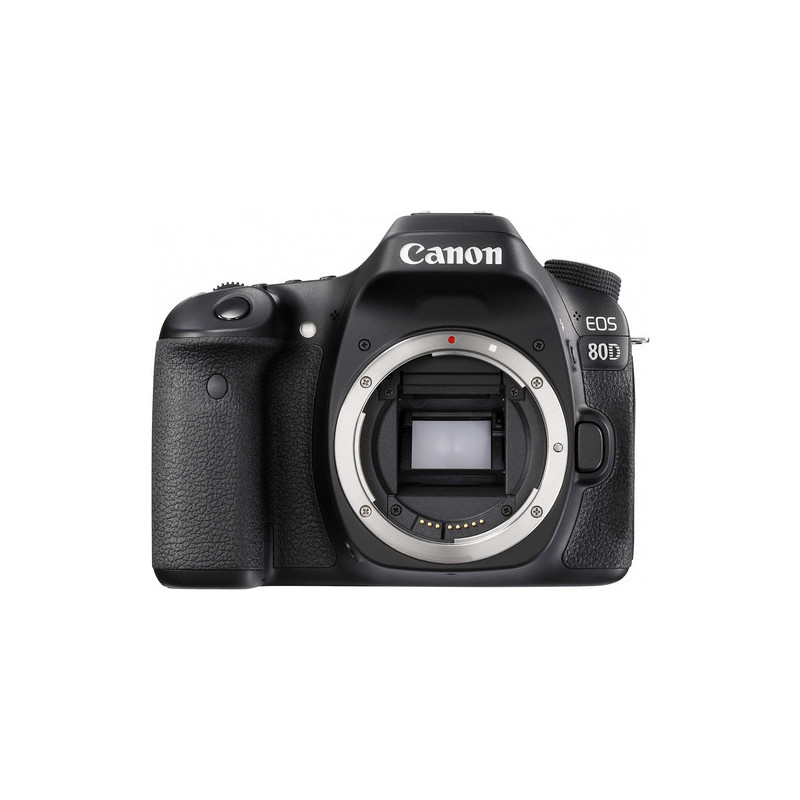

DSLR camera Canon EOS 80D
| Image | |
| Sensor | 24 MP (CMOS Bayer RGB) 1.6x crop (22.3 x 14.9mm) sensor |
| Effective Pixels | Approx. 24.20 megapixels |
| Picture Resolution | JPEG 3: 2: (L) 6000 x 4000, (M) 3984 x 2656, (S1) 2976 x 1984, (S2) 1920 x 1280, (S3) 720 x 480 JPEG 4: 3: (L) 5328x4000 , (M) 3552x2664, (S1) 2656x1992, (S2) 1696x1280, (S3) 640x480 JPEG 16: 9: (L) 6000 x 3368, (M) 3984 x 2240, (S1) 2976 x 1680, (S2) 1920 x 1080, (S3) 720 x 408 JPEG 1: 1: (L) 4000x4000, (M) 2656x2656, (S1) 1984x1984, (S2) 1280x1280, (S3) 480x480 RAW: (RAW) 6000 x 4000, (M- RAW) 4500 x 3000, (S-RAW) 3000 x 2000 |
| File Formats | JPEG: fine, normal (compatibility with Exif 2.30 [Exif Print]) / Design rule for Camera File system (2.0), RAW: RAW, M-RAW, S-RAW (14 bits, Canon original RAW 2nd edition ), Digital Print Order Format [DPOF] version 1.1 compatibility |
| Lenses | |
| Lens Mount | Canon EF |
| Compatible Lenses | Canon EF / EF-S |
| Focusing | |
| AF | TTL-CT-SIR with CMOS sensor |
| AF Mode | Intelligent AF AF with a single frame Tracking the subject AF |
| AF Zones | 45-point cross-type AF system (45-point cross-type AF system with f / 5,6, 27-point AF with f / 8 [9-point cross-type], with center point at f / 2, 8 and f / 5.6 for dual cross type) Automatic selection: 45 AF points Manual selection: One AF point Manual selection: Zone AF Manual selection: Wide zone AF AF points can be selected separately for shooting with vertical and horizontal orientation |
| Viewfinder | |
| Viewfinder Type | Pentaprism |
| Viewfinder Coverage | Approx. 100% |
| Viewfinder Magnification | Approx. 0.95x |
| Diopter Adjustment | Approx. 22 mm (from the center of the eyepiece) |
| Display | |
| Display Screen | Clear View II TFT 7.7 cm (3.0 ") 3: 2 Movable Touchscreen Display, Approx. 1040K pixels |
| Playback | (1) Single image with information (2 levels) (2) Single image (3) Group of 4 images (4) Group of 9 images (5) Group of 36 images (6) Group of 100 images (7) Skip between images (8) Edit video |
| Exposure | |
| ISO | Auto (100-16,000), 100-16,000 (1/3 step or 1 step) The ISO range can be extended to H: 25,600 When recording a video: Auto (100 - 12,800), 100 - 12,800 (1/3 step or full step), ISO can be extended to H: 25,600 |
| Shutter | Electronically controlled shutter in the focal plane |
| Shutter Speed | 30-1 / 8000 s (every 1/2 or 1/3 step), Unlimited exposure (Full shutter speed range. The available range varies depending on the shooting mode.) |
| Light Metering | 7560-pixel RGB + IR measuring sensor Measuring through 63 zones (9 × 7) (1) Evaluation measurement (at each AF point) (2) Partial measurement (approx. 6.0% of viewfinder) (3) Spot measurement measurement (approx. 3.8% of the viewfinder) (4) Averaged center-priority measurement |
| Exposure Modes | Intelligent Auto Scene Mode (Photos and Video), No Flash, Creative Auto, SCN (portrait, landscape, close-up, sports scene, night portrait, night scene without tripod, HDR backlight control, food, children, candlelight), Creative filters, Program AE, AE with speed priority, AE with aperture priority, Manual (photos and video), Unlimited exposure, Custom |
| Continuous Shooting | 7 fps at 24 MP |
| White Balance | AWB (Atmospheric priority, White priority), Daylight, Shadow, Cloudy weather, Tungsten light, White light Fluorescent light, Flash, Custom, Set color warmth. White balance correction: 1. Blue / Amber +/- 9 2. Magenta / Green +/- 9. |
| Flash | |
| Flash Control | E-TTL II |
| Flash Modes | Automatic, Handheld flash, Built-in Speedlite transmitter |
| Flash Compensation | +/- 3EV in 1/2 or 1/3 step |
| Max Sync Speed | 1 / 250s |
| Hotshoe | Yes |
| Video | |
| Video Format | MOV / MP4 (Video: H.264 in-frame / interframe compression, Sound: linear PCM / AAC, the recorded sound level can be adjusted manually by the user) |
| Compression | Video: H.264 in-frame / interframe compression |
| Video Resolution | 1920 x 1080 (59,94, 50 fps) interframe compression 1920 x 1080 (29,97, 25, 23,98 fps) intraframe or interframe compression 1920 x 1080 (29,97, 25) small interframe compression 1280 x 720 (59.94, 50 fps) interframe compression 1280 x 720 (29.97, 25) low interframe compression Max. duration 29 min. 59 sec., Max. file size 4 GB (if the file size exceeds 4 GB, a new file will be created automatically) |
| Sound | Sound: linear PCM / AAC, the recorded sound level can be adjusted manually by the user |
| Others | |
| USB | Hi-Speed USB |
| HDMI | HDMI mini output (HDMI-CEC compatibility) |
| Audio Input | External microphone (3.5 mm stereo mini jack) |
| Audio output | Headphone jack (stereo mini jack) |
| Wi-Fi | Yes |
| Battery Pack | Rechargeable lithium-ion battery LP-E6N (included), built-in battery for date and settings |
| Power Adapter | Power adapter AC-E6 (N), DC connector: DR-E6, battery charger LC-E6, car charger CBC-E6 |
| Size | 139.0 x 105.2 x 78.5mm |
| Weight | Approx. 730 g (CIPA test standard, including battery and memory card) |
| Memory Card Type | 1 x SD, SDHC or SDXC (UHS-I) card |
| Dust Reduction | EOS built-in cleaning system |

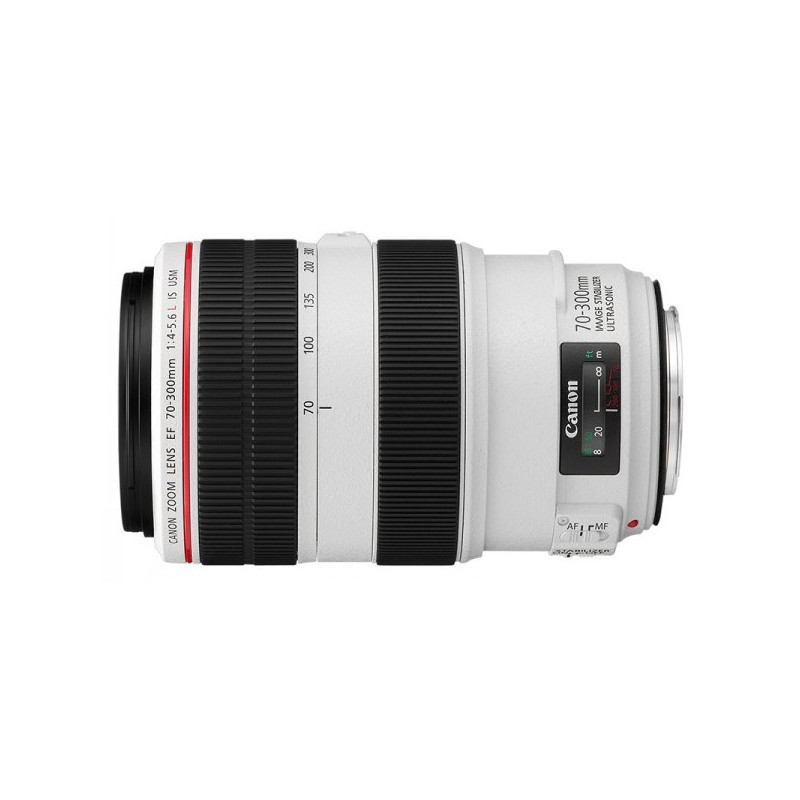

Lens Canon EF 70-300mm f / 4-5.6L IS USM
| General | |
| WEIGHT | 1.05 kg |
| General features | |
| Filter size | 67 mm |
| Aperture range | f / 4-f / 42 |
| Optical stabilization | Yes |
| Minimum subject distance | 0.15 m |
| Increase | 1: 4.76 |
| Lens construction (groups / elements) | 14 gr. / 19 pcs. |
| Viewing angle | 34 ° - 8 ° |
| Focal length equated to 35mm standard | 70-300 mm |
| Tripod socket | None |
| Length | 14.22 cm |
| Maximum diameter | 8.89 cm |
Box contents
DSLR camera Canon EOS 80D
LP-E6N Lithium-Ion Battery Pack Battery (7.2V, 1865mAh)
LC-E6 Charger charger
EW-EOS80D Wide Camera Strap Strap
Eyepiece Cup Eb
RF-3 Body Cap
Lens Canon EF 70-300mm f / 4-5.6L IS USM
Front Cover - Canon E 67mm II
Rear Cap - Canon
Shade - Canon ET-73B
Soft Case - Canon LP1424
