Description
The Blackmagic Design PYXIS 12K Cinema Box Camera combines the familiar Blackmagic PYXIS 6K box camera body with the full-frame sensor of the URSA Cine 12K, offering a host of benefits for professionals looking for uncompromising image quality, modularity, convenience, and maximum flexibility.
What are the main advantages of Blackmagic PYXIS 12K?
- Full-frame 12K RGBW sensor: The PYXIS 12K features a 36 x 24 mm RGBW sensor with a resolution of 12288 x 8040 pixels, which allows for extremely detailed images with rich colors and accurate skin tones. Its large area allows for shallow focus and the use of anamorphic lenses without cropping for a truly cinematic look.
- 16 stops of dynamic range and dual base ISO: A wide dynamic range ensures detail is preserved in both bright and dark areas of the frame, while dual base ISO minimizes noise across the entire range.
- Flexible formats and resolutions: The camera supports a variety of formats and resolution options, including 12K, 8K and 4K without cropping, 3:2 open gate, high frame rates starting at 40 frames per second at 12K and reaching 112 fps at lower resolutions, allowing adaptation to diverse production requirements.
- Modular design with multiple mounting points: The compact and lightweight aerospace aluminum body offers multiple 1/4"-20 and 3/8"-16 threads for easy mounting of accessories such as grips, monitors, and microphones.
- Blackmagic RAW for post-production: The PYXIS 12K supports Blackmagic RAW for maximum detail retention and easy post-production adjustments and editing. The camcorder can also record H.264 proxy files in real time for easy sharing.
- Direct streaming: the camcorder can stream directly via SRT and RTMP protocols, as well as to some popular platforms such as YouTube, Facebook, etc.
Sensor and image quality
At the heart of the PYXIS 12K is its full-frame 12K RGBW sensor, which allows for the capture of images with exceptional resolution and detail. This sensor not only delivers high resolution, but also delivers natural colors and accurate skin tones, which is essential for professional film productions. The wide dynamic range allows for the preservation of detail in both the brightest and darkest areas of the frame, providing greater flexibility in post-production.
Flexibility in formats and resolutions
The Blackmagic PYXIS 12K offers exceptional flexibility in terms of recording formats and resolutions. The camera supports 12K 3:2 recording at 40 frames per second, 8K and 4K at various frame rates, allowing directors and cinematographers to choose the format that best suits their production. The ability to work with different formats and resolutions makes the PYXIS 12K highly adaptable to a variety of projects and requirements.
Design and ergonomics
The PYXIS 12K housing is characterized by its strength and lightness. The modular design includes multiple mounting points (1/4"-20 and 3/8"-16 threads), which allow for easy addition of accessories such as handles, monitors, microphones and more. This makes the camera extremely flexible and easy to customize according to the needs of a specific project.
Accessory compatibility

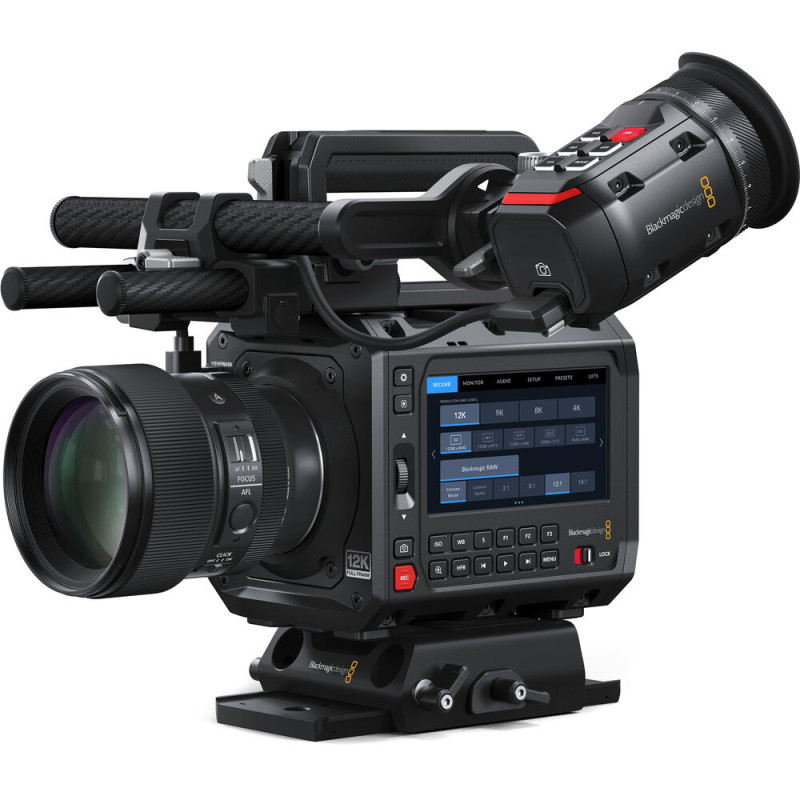

The Blackmagic Design PYXIS 12K is compatible with a wide range of accessories, including the new Pro Handle and Pro Grip. The Pro Handle offers an OLED viewfinder, stereo microphone and control buttons, while the Pro Grip provides a comfortable grip with built-in recording and zoom controls. These accessories enhance the ergonomics and functionality of the camera, making it easier for operators to work in a variety of shooting conditions, including broadcast.
Additional features
High-quality sound: Two mini XLR inputs with 48V phantom power allow direct recording of professional sound.
10G Ethernet and Mobile Data: The included 10G Ethernet port and mobile network option allow for fast file transfers and remote access to the camera.
Compatibility with professional accessories: The Blackmagic PYXIS 12K camcorder is compatible with the URSA Cine EVF, PYXIS Monitor, and other Blackmagic accessories.
Tracking autofocus: The cinema camera's autofocus system with face and object detection makes it easy to capture dynamic scenes.
Pre-Record Function: Allows you to store a few seconds of video before recording begins – ideal for capturing unpredictable events.
Characteristics
| General features | |
| Sensor | 35.64 x 23.32 mm (Large Format) 98.8MP (12288 x 8040) CMOS |
| Lens Mount | Canon EF |
| Video Format | 3:2 open gate, 16:9, 17:9, 2.4:1, 6:5 Вътрешен запис: 12K (3:2 open gate) @ 40 fps 12K (16:9) @ 45 fps 12K (17:9) @ 50 fps 12K (2.4:1) @ 60 fps 12K (6:5) @ 40 fps 9K (3:2 Super 35) @ 50 fps 9K (16:9 Super 35) @ 65 fps 9K (17:9 Super 35) @ 65 fps 9K (2.4:1 Super 35) @ 80 fps 9K (6:5 Super 35) @ 50 fps 8K/4K (3:2 open gate) @ 72 fps 8K/4K (16:9) @ 84 fps 8K/4K (17:9) @ 90 fps 8K/4K (2.4:1) @ 112 fps 8K/4K (6:5) @ 72 fps Външен запис SDI/BNC: 4096 x 2160 @ 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p @ 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps |
| ISO | 800 (опт.) / 200 - 3200 |
| Memory Card Type | 2x CFexpress Type B + USB-C Out |
| Viewfinder Type | Не |
| Display Screen | 4" 1920 x 1080 сензорен LCD |
| Connectivity | BNC (12G-SDI) видео изход XLR 3-Pin Mic/Line (+48 V Phantom Power) аудио вход 1/8" / 3.5 mm TRS Stereo аудио вход 1/8" / 3.5 mm TRRS Headphone/Mic Headphone аудио изход 2x USB-C BNC (Reference, Timecode) RJ45 (10 Gigabit Ethernet) |
| Power Adapter | 1x LEMO 2-Pin (12VDC) / Батерия Sony BP-U |
| Size | 15.09 x 11.91 x 10.59 cm |
| Weight | 1.6 kg |
Box contents
Bayonet cap
Standard mounting plate PYXIS
PYXIS SSD mounting plate
Power supply
