Description
The Canon EOS 77D delivers a wealth of features that combine advanced photo and video capabilities with intuitive design. The 24.2MP APS-C CMOS sensor and DIGIC 7 processor help achieve high image quality, and Live View mode, touchscreen interface and 45 point Phase AF are just some of the benefits of the EOS 77D. The camera shoots up to 6 fps at 24MP to capture even the most fleeting expressions. The Canon EOS 77D supports Full HD video, and with Dual Pixel CMOS AF you can keep the focus on the subject as you change your position when shooting video.

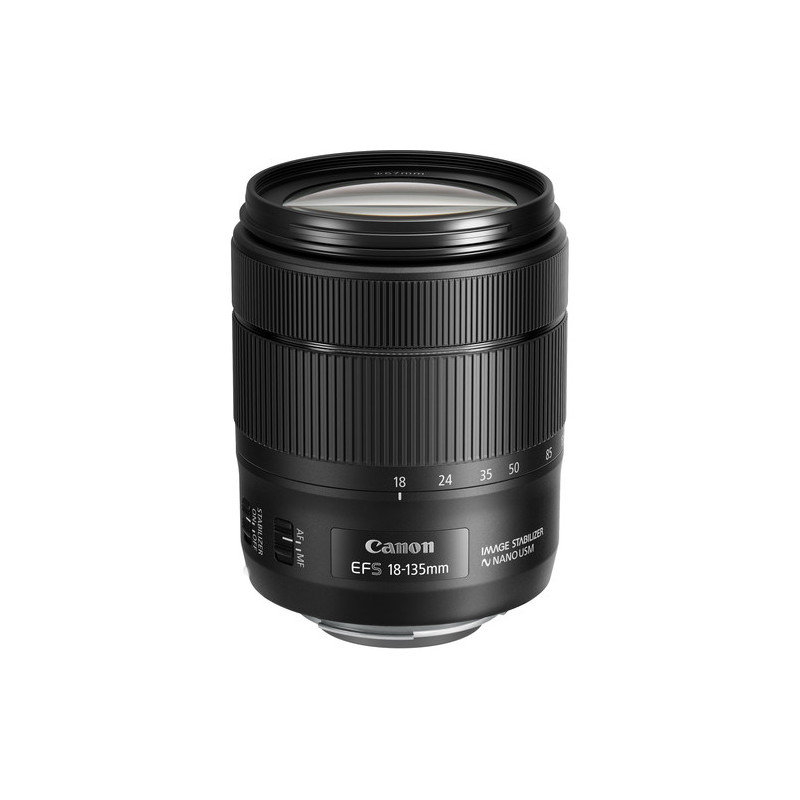

Lens Canon EF-S 18-135mm f / 3.5-5.6 IS Nano USM
Compatible with APS-C EOS * cameras, including mirrorless ones, using the EF-EOS M * adapter * Without camerasEOS 10D, EOS D60, EOS D30
Versatile EF-S lens that handles both photos and video perfectly
Enjoy incredible versatility with a lens that deserves your presence in your photography kit and delivers excellent image capture and video capture thanks to the new Nano USM technology. The EF-S 18-135mm f / 3.5-5.6 IS USM's fast, even focus allows for stunning shots while keeping its quiet motor safe for video clarity.
The EF-S 18-135mm f / 3.5-5.6 IS USM lens is perfect for:
Landscape | Portrait | Tourism | Outdoor sports |
A high-performance, compact lens for great pictures and video
Its compact and lightweight construction makes it the perfect travel lens without compromising on quality, providing you with excellent color reproduction and contrast. UD and aspherical lens elements reduce chromatic aberration across the entire focal length range for both photos and video.
Nano USM Technology - Even, fast and quiet operation
The EF-S 18-135mm f / 3.5-5.6 IS USM Nano USM Technology used for the lens enables incredibly fast focusing. Combined with the flexible focal length, it allows you to capture dramatic landscapes, beautiful shakes and dynamic action.
Professional quality video effortlessly
Nano USM focus technology delivers a natural view of your video with ultra-uniform autofocus for subject tracking. In addition, you can take control at any time thanks to the manual focus ring.
Even focus is a need for natural focus transitions
Nano USM technology provides excellent control and even tracking of an object approaching or moving away from the camera as you focus.
The Nano USM motor consists of an elastic metal element, a voltage-controlled piezo-ceramic element and a drive mechanism. The voltage regulation applied to the piezoceramic element controls the direction and speed of the actuator. The result is a focusing system that provides even focus with speed control.
Stable shots, even in the center of the action
You can easily take crystal-sharp photos thanks to the optical image stabilizer (4 steps slower shutter speed). It prevents blurry images caused by camera shake, providing high-quality results in low light or high magnification, while the special Panorama mode is automatically triggered when tracking an object on the move.
Dynamic Image Stabilizer guarantees stable video recording without a tripod, at maximum magnification or on the go.
Amazing flexibility across the entire focal length range
With the EF-S 18-135mm f / 3.5-5.6 IS USM, you can easily shoot a variety of subjects thanks to the large focal length range. With the smallest focal length, you can shoot vast landscapes. At maximum focal length, you can get close to the center of the action through telephoto zoom and high-speed auto focus. Thanks to the optical image stabilizer (4 steps slower shutter speed), images are sharp and stable at maximum zoom, low light, or video recording.
Get in touch with EF-S 18-135mm f / 3.5-5.6 IS USM
The professional quality of video recording is now much easier with the new PZ-E1 Motorized Zoom Adapter
The new motorized zoom adapter easily attaches to the electrical contacts at the bottom of the EF-S 18-135mm f / 3.5-5.6 IS USM lens, allowing the zoom to be controlled by a switch (or Wi-Fi when used with a compatible EOS camera) , ensuring accurate and even management of professional-quality video recording zooms.
Lightweight and easy to use, it's the perfect lens for professional-quality video recording wherever you are. Follow the action, record a documentary style video, or use the zoom to create creative effects.
Get closer to the action, keeping your distance
Using the PZ-E1 motorized zoom adapter further increases the flexibility of the EF-S 18-135mm f / 3.5-5.6 IS USM lens, allowing you to control the zoom remotely.
Combine the EF-S 18-135mm f / 3.5-5.6 IS USM lens and the PZ-E1 motorized zoom adapter with a compatible Wi-Fi EOS camera, and you'll be able to control the zoom wirelessly with your smart device and the Canon Camera Connect application. **
Characteristics
DSLR camera Canon EOS 77D
Image | |
Sensor | 24 MP (CMOS Bayer RGB) 1.6x crop (22.3 x 14.9mm) |
Effective Pixels | Approx. 24.20 megapixels |
Vibration Reduction | IS on 5 axes Compensates for camera shake |
Picture Resolution | JPEG 3: 2: (L) 6000 x 4000, (M) 3984 x 2656, (S1) 2976 x 1984, (S2) 2400x1600, JPEG 4: 3: (L) 5328x4000, (M) 3552x2664, (S1) ) 2656x1992, (S2) 2112x1600, JPEG 16: 9: (L) 6000x3368, (M) 3984x2240, (S1) 2976x1680, (S2) 2400x1344, JPEG 1: 1: (L) 4000x4000, (M) 2656x2656, (S1) ) 1984x1984, (S2) 1600x1600, RAW: (RAW) 6000x4000 |
File Formats | PEG: fine, normal (compatibility with Exif 2,30 [Exif Print]) / Design rule for Camera File system (2,0) RAW: 14bit, Canon original RAW 2nd edition Digital Print Order Format [DPOF] version 1.1 compatibility |
Lenses | |
Lens Mount | Canon EF |
Compatible Lenses | Canon EF / EF-S |
Focusing | |
AF | Via optical viewfinder: TTL-CT-SIR with CMOS sensor Via Live View on LCD screen: Dual Pixel CMOS AF system. Phase difference detection pixels built into the capture sensor |
AF Mode | Intelligent AF AF in single frame Tracking AF (Tracking AF II algorithm) |
AF Zones | By optical viewfinder: 45 cruciform AF points (45 cruciform AF points at f / 5.6, 27 AF points at f / 8 (9 cruciform points), the center point is double cruciform at f / 2.8 and f / 5.6) By Live View on LCD screen: Maximum 49 AF points (fixed position on 7x7 matrix) by automatic camera selection Free position 1 AF point / 1 AF zone (9 points, 3x3 matrix) by manual selection |
Viewfinder | |
Viewfinder Type | Optical, Penta Mirror |
Viewfinder Coverage | Approx. 95% |
Viewfinder Magnification | Approx. 0.82x |
Diopter Adjustment | -3 to +1 m-1 (diopter) |
Display | |
Display Screen | Movable touch 7.7 cm (3.0 ") 3: 2 Clear View II TFT display, approx. 1040 K sRGB points |
Playback | (1) Single image with information (2 levels) (2) Single image (3) Group of 4 images (4) Group of 9 images (5) Group of 36 images (6) Group of 100 images (7) Skip between images |
Exposure | |
ISO | Auto (100 - 25 600), 100 - 25 600 The ISO light sensitivity range can be extended to H: 51200 When recording a video: Auto (100 - 12 800), 100 - 12 800) The ISO range can be extended to H: 25600 |
Shutter | Electronically controlled shutter in the focal plane |
Shutter Speed | 30-1 / 4000 s (1/2 or 1/3 step), Unlimited exposure (Full shutter speed range. The available range varies depending on the shooting mode.) |
Light Metering | Via optical viewfinder: 7560-pixel RGB + IR exposure measurement sensor Measurement via 63 zones (9 × 7) (1) Evaluation measurement (at each AF point) (2) Partial measurement (Approx. 6.0% of (3) Spot metering (approx. 3.5% of the viewfinder) (4) Center-weighted averaging Through Live View on the LCD screen: (1) Evaluation metering (315 zones) (2) Partial metering. 6.0% of the LCD screen) (3) Spot metering (approx. 2.6% of the LCD screen) (4) Averaged metering with center priority |
Exposure Modes | Intelligent Auto Scene Mode (Photos and Video), No Flash, Creative Auto, SCN (Portrait Photo, Landscape Photo, Close-up, Sports Scene, Night Portrait, Night Stage Without Tripod, HDR Contour Control, Food, Kids, Candlelight), Creative filters, Program AE, AE with speed priority, AE with aperture priority, Manual (photos and video) |
Continuous Shooting | 6 fps at 24 MP |
White Balance | AWB (Atmospheric Priority / White Priority), Daylight, Shadow, Cloudy, Incandescent Light, White Light Fluorescent Light, Flash, Custom. White balance adjustment: 1. Blue / amber offset +/- 9 levels 2. Magenta / green offset +/- 9 levels |
Flash | |
Flash Control | E-TTL II |
Flash Modes | Auto, Handheld flash, Built-in Speedlite transmitter |
Flash Compensation | +/- 2 EV in 1/2 or 1/3 step |
Max Sync Speed | 1/200 sec |
Hotshoe | Yes |
Video | |
Video Format | MP4 (video: H.264 in-frame / interframe compression, sound: linear PCM / AAC, the recorded sound level can be adjusted manually by the user) |
Video Resolution | 1920 x 1080 (59,94, 50 fps) interframe compression 1920 x 1080 (29,97, 25, 23,98 fps) interframe compression 1920 x 1080 (29,97, 25) small interframe compression 1280 x 720 (59 , 94, 50 fps) interframe compression 1280 x 720 (29,97, 25) small interframe compression 640 x 480 (29,97, 25) interframe compression 640 x 480 (29,97, 25) small interframe compression Max. duration 29 min 59s, Max. file size 4GB (if the file size exceeds 4GB, a new file will be created automatically) |
Sound | Linear PCM / AAC, the recorded sound level can be adjusted manually by the user |
Others | |
USB | Hi-Speed USB |
HDMI | HDMI mini output (HDMI-CEC compatibility) |
Audio Input | External microphone (3.5 mm stereo mini jack) |
Wi-Fi | Wi-Fi (IEEE802.11b / g / n), (2.4 GHz only) with Dynamic NFC support (NFC connection is only possible with compatible Android devices) |
Bluetooth | Bluetooth® (Specification version 4.1, low power Bluetooth technology) |
Battery Pack | 1 x LP-E17 rechargeable lithium-ion battery |
Power Adapter | Power adapter AC-E6 (N), DC connector: DR-E18, Charger LC-E17E |
Size | 131.0 x 99.9 x 76.2 mm |
Weight | Approx. 540 g (including battery and card) |
Memory Card Type | 1 x SD, SDHC, SDXC (compatible with UHS Speed Class 1) |
Dust Reduction | EOS built-in cleaning system |
Lens Canon EF-S 18-135mm f / 3.5-5.6 IS Nano USM
General features | |
Viewfinder Magnification | 0.28x |
Filter Thread | 67 mm |
Aperture Max | f / 3.5 to 5.6 |
Aperture Min | f / 22 to 38 |
Image Stabilization | Yes |
Minimum Focus Distance | 39 cm |
Optical Design | 16 Elements in 12 Groups |
Angle of View | 74 ° 20 'to 11 ° 30' |
Diaphragm Blades | 7, rounded |
Size | 77.4 x 96 mm |
Weight | 515 grams |
Box contents
DSLR camera Canon EOS 77D
Батерия LP-E17 Lithium-Ion Battery Pack
Зарядно устройство LC-E17 Charger
Чашка за окуляр Ef
Капачка RF-3 Body Cap
Ремък EW-100DB V Wide Camera Strap
