Description
Discover your creativity with the Canon EOS 80D - a powerful camera suitable for sports, portrait, landscape and street photography as well as video production. The camera offers exceptional image quality full of detail, color and atmosphere thanks to its 24.2 megapixel APS-C CMOS sensor and DIGIC 6 processor. The smart viewfinder has almost 100% coverage, and the Vari-Angle Clear View LCD II display lets you compose at any angle. Dual Pixel CMOS AF gives you accurate autofocus and smooth video transition with up to 1080p resolution and 60fps. The Wi-Fi and NFC connectivity of the EOS 80D with compatible smart devices lets you easily and quickly share your photos and videos.
Lens Canon EF-S 18-135mm f / 3.5-5.6 IS Nano USM
Compatible with APS-C EOS * cameras, including mirrorless ones, using the EF-EOS M * adapter * Without camerasEOS 10D, EOS D60, EOS D30
Versatile EF-S lens that handles both photos and video perfectly
Enjoy incredible versatility with a lens that deserves your presence in your photography kit and delivers excellent image capture and video capture thanks to the new Nano USM technology. The EF-S 18-135mm f / 3.5-5.6 IS USM's fast, even focus allows for stunning shots while keeping its quiet motor safe for video clarity.
The EF-S 18-135mm f / 3.5-5.6 IS USM lens is perfect for:
Landscape | Portrait | Tourism | Outdoor sports |
A high-performance, compact lens for great pictures and video
Its compact and lightweight construction makes it the perfect travel lens without compromising on quality, providing you with excellent color reproduction and contrast. UD and aspherical lens elements reduce chromatic aberration across the entire focal length range for both photos and video.
Nano USM Technology - Even, fast and quiet operation
The EF-S 18-135mm f / 3.5-5.6 IS USM Nano USM Technology used for the lens enables incredibly fast focusing. Combined with the flexible focal length, it allows you to capture dramatic landscapes, beautiful shakes and dynamic action.
Professional quality video effortlessly
Nano USM focus technology delivers a natural view of your video with ultra-uniform autofocus for subject tracking. In addition, you can take control at any time thanks to the manual focus ring.
Even focus is a need for natural focus transitions
Nano USM technology provides excellent control and even tracking of an object approaching or moving away from the camera as you focus.
The Nano USM motor consists of an elastic metal element, a voltage-controlled piezo-ceramic element and a drive mechanism. The voltage regulation applied to the piezoceramic element controls the direction and speed of the actuator. The result is a focusing system that provides even focus with speed control.
Stable shots, even in the center of the action
You can easily take crystal-sharp photos thanks to the optical image stabilizer (4 steps slower shutter speed). It prevents blurry images caused by camera shake, providing high-quality results in low light or high magnification, while the special Panorama mode is automatically triggered when tracking an object on the move.
Dynamic Image Stabilizer guarantees stable video recording without a tripod, at maximum magnification or on the go.
Amazing flexibility across the entire focal length range
With the EF-S 18-135mm f / 3.5-5.6 IS USM, you can easily shoot a variety of subjects thanks to the large focal length range. With the smallest focal length, you can shoot vast landscapes. At maximum focal length, you can get close to the center of the action through telephoto zoom and high-speed auto focus. Thanks to the optical image stabilizer (4 steps slower shutter speed), images are sharp and stable at maximum zoom, low light, or video recording.
Get in touch with EF-S 18-135mm f / 3.5-5.6 IS USM
The professional quality of video recording is now much easier with the new PZ-E1 Motorized Zoom Adapter
The new motorized zoom adapter easily attaches to the electrical contacts at the bottom of the EF-S 18-135mm f / 3.5-5.6 IS USM lens, allowing the zoom to be controlled by a switch (or Wi-Fi when used with a compatible EOS camera) , ensuring accurate and even management of professional-quality video recording zooms.
Lightweight and easy to use, it's the perfect lens for professional-quality video recording wherever you are. Follow the action, record a documentary style video, or use the zoom to create creative effects.
Get closer to the action, keeping your distance
Using the PZ-E1 motorized zoom adapter further increases the flexibility of the EF-S 18-135mm f / 3.5-5.6 IS USM lens, allowing you to control the zoom remotely.
Combine the EF-S 18-135mm f / 3.5-5.6 IS USM lens and the PZ-E1 motorized zoom adapter with a compatible Wi-Fi EOS camera, and you'll be able to control the zoom wirelessly with your smart device and the Canon Camera Connect application. **
Characteristics

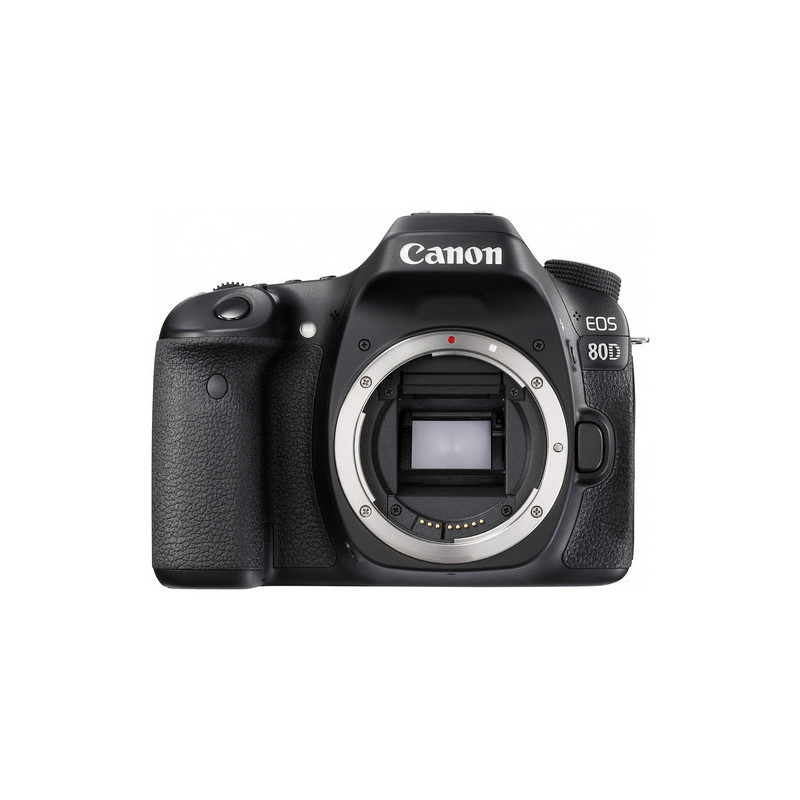

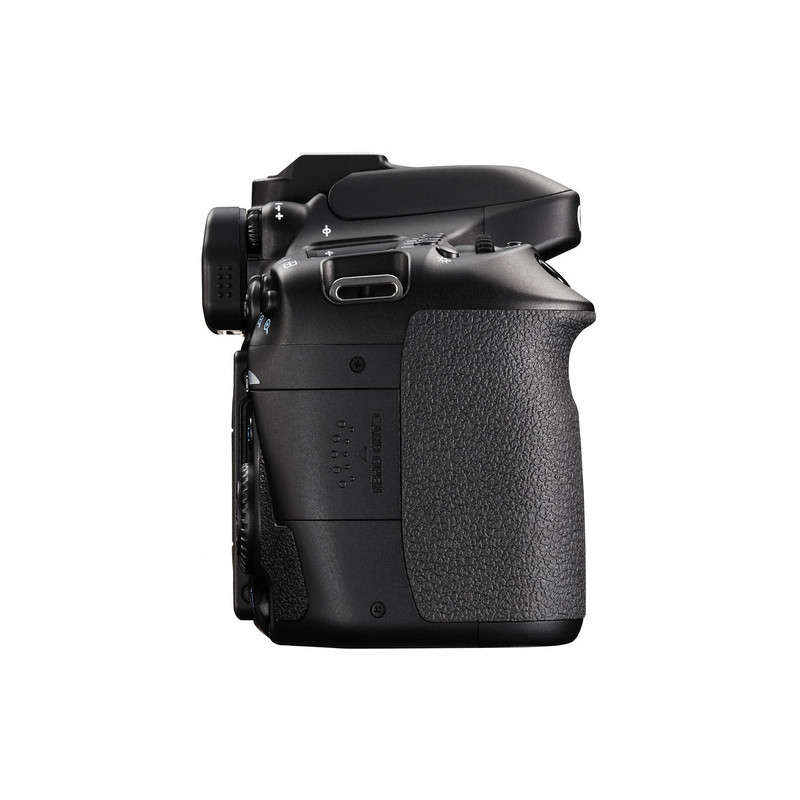

DSLR camera Canon EOS 80D
Image | |
Sensor | 24 MP (CMOS Bayer RGB) 1.6x crop (22.3 x 14.9mm) sensor |
Effective Pixels | Approx. 24.20 megapixels |
Picture Resolution | JPEG 3: 2: (L) 6000 x 4000, (M) 3984 x 2656, (S1) 2976 x 1984, (S2) 1920 x 1280, (S3) 720 x 480 JPEG 4: 3: (L) 5328x4000 , (M) 3552x2664, (S1) 2656x1992, (S2) 1696x1280, (S3) 640x480 JPEG 16: 9: (L) 6000 x 3368, (M) 3984 x 2240, (S1) 2976 x 1680, (S2) 1920 x 1080, (S3) 720 x 408 JPEG 1: 1: (L) 4000x4000, (M) 2656x2656, (S1) 1984x1984, (S2) 1280x1280, (S3) 480x480 RAW: (RAW) 6000 x 4000, (M- RAW) 4500 x 3000, (S-RAW) 3000 x 2000 |
File Formats | JPEG: fine, normal (compatibility with Exif 2.30 [Exif Print]) / Design rule for Camera File system (2.0), RAW: RAW, M-RAW, S-RAW (14 bits, Canon original RAW 2nd edition ), Digital Print Order Format [DPOF] version 1.1 compatibility |
Lenses | |
Lens Mount | Canon EF |
Compatible Lenses | Canon EF / EF-S |
Focusing | |
AF | TTL-CT-SIR with CMOS sensor |
AF Mode | Intelligent AF AF with a single frame Tracking the subject AF |
AF Zones | 45-point cross-type AF system (45-point cross-type AF system with f / 5,6, 27-point AF with f / 8 [9-point cross-type], with center point at f / 2, 8 and f / 5.6 for dual cross type) Automatic selection: 45 AF points Manual selection: One AF point Manual selection: Zone AF Manual selection: Wide zone AF AF points can be selected separately for shooting with vertical and horizontal orientation |
Viewfinder | |
Viewfinder Type | Pentaprism |
Viewfinder Coverage | Approx. 100% |
Viewfinder Magnification | Approx. 0.95x |
Diopter Adjustment | Approx. 22 mm (from the center of the eyepiece) |
Display | |
Display Screen | Clear View II TFT 7.7 cm (3.0 ") 3: 2 Movable Touchscreen Display, Approx. 1040K pixels |
Playback | (1) Single image with information (2 levels) (2) Single image (3) Group of 4 images (4) Group of 9 images (5) Group of 36 images (6) Group of 100 images (7) Skip between images (8) Edit video |
Exposure | |
ISO | Auto (100-16,000), 100-16,000 (1/3 step or 1 step) The ISO range can be extended to H: 25,600 When recording a video: Auto (100 - 12,800), 100 - 12,800 (1/3 step or full step), ISO can be extended to H: 25,600 |
Shutter | Electronically controlled shutter in the focal plane |
Shutter Speed | 30-1 / 8000 s (every 1/2 or 1/3 step), Unlimited exposure (Full shutter speed range. The available range varies depending on the shooting mode.) |
Light Metering | 7560-pixel RGB + IR measuring sensor Measuring through 63 zones (9 × 7) (1) Evaluation measurement (at each AF point) (2) Partial measurement (approx. 6.0% of viewfinder) (3) Spot measurement measurement (approx. 3.8% of the viewfinder) (4) Averaged center-priority measurement |
Exposure Modes | Intelligent Auto Scene Mode (Photos and Video), No Flash, Creative Auto, SCN (portrait, landscape, close-up, sports scene, night portrait, night scene without tripod, HDR backlight control, food, children, candlelight), Creative filters, Program AE, AE with speed priority, AE with aperture priority, Manual (photos and video), Unlimited exposure, Custom |
Continuous Shooting | 7 fps at 24 MP |
White Balance | AWB (Atmospheric priority, White priority), Daylight, Shadow, Cloudy weather, Tungsten light, White light Fluorescent light, Flash, Custom, Set color warmth. White balance correction: 1. Blue / Amber +/- 9 2. Magenta / Green +/- 9. |
Flash | |
Flash Control | E-TTL II |
Flash Modes | Automatic, Handheld flash, Built-in Speedlite transmitter |
Flash Compensation | +/- 3EV in 1/2 or 1/3 step |
Max Sync Speed | 1 / 250s |
Hotshoe | Yes |
Video | |
Video Format | MOV / MP4 (Video: H.264 in-frame / interframe compression, Sound: linear PCM / AAC, the recorded sound level can be adjusted manually by the user) |
Compression | Video: H.264 in-frame / interframe compression |
Video Resolution | 1920 x 1080 (59,94, 50 fps) interframe compression 1920 x 1080 (29,97, 25, 23,98 fps) intraframe or interframe compression 1920 x 1080 (29,97, 25) small interframe compression 1280 x 720 (59.94, 50 fps) interframe compression 1280 x 720 (29.97, 25) low interframe compression Max. duration 29 min. 59 sec., Max. file size 4 GB (if the file size exceeds 4 GB, a new file will be created automatically) |
Sound | Sound: linear PCM / AAC, the recorded sound level can be adjusted manually by the user |
Others | |
USB | Hi-Speed USB |
HDMI | HDMI mini output (HDMI-CEC compatibility) |
Audio Input | External microphone (3.5 mm stereo mini jack) |
Audio output | Headphone jack (stereo mini jack) |
Wi-Fi | Yes |
Battery Pack | Rechargeable lithium-ion battery LP-E6N (included), built-in battery for date and settings |
Power Adapter | Power adapter AC-E6 (N), DC connector: DR-E6, battery charger LC-E6, car charger CBC-E6 |
Size | 139.0 x 105.2 x 78.5mm |
Weight | Approx. 730 g (CIPA test standard, including battery and memory card) |
Memory Card Type | 1 x SD, SDHC or SDXC (UHS-I) card |
Dust Reduction | EOS built-in cleaning system |
Lens Canon EF-S 18-135mm f / 3.5-5.6 IS Nano USM
General features | |
Viewfinder Magnification | 0.28x |
Filter Thread | 67 mm |
Aperture Max | f / 3.5 to 5.6 |
Aperture Min | f / 22 to 38 |
Image Stabilization | Yes |
Minimum Focus Distance | 39 cm |
Optical Design | 16 Elements in 12 Groups |
Angle of View | 74 ° 20 'to 11 ° 30' |
Diaphragm Blades | 7, rounded |
Size | 77.4 x 96 mm |
Weight | 515 grams |
Box contents
DSLR camera Canon EOS 80D
LP-E6N Lithium-Ion Battery Pack Battery (7.2V, 1865mAh)
LC-E6 Charger charger
EW-EOS80D Wide Camera Strap Strap
Eyepiece Cup Eb
RF-3 Body Cap
