Description

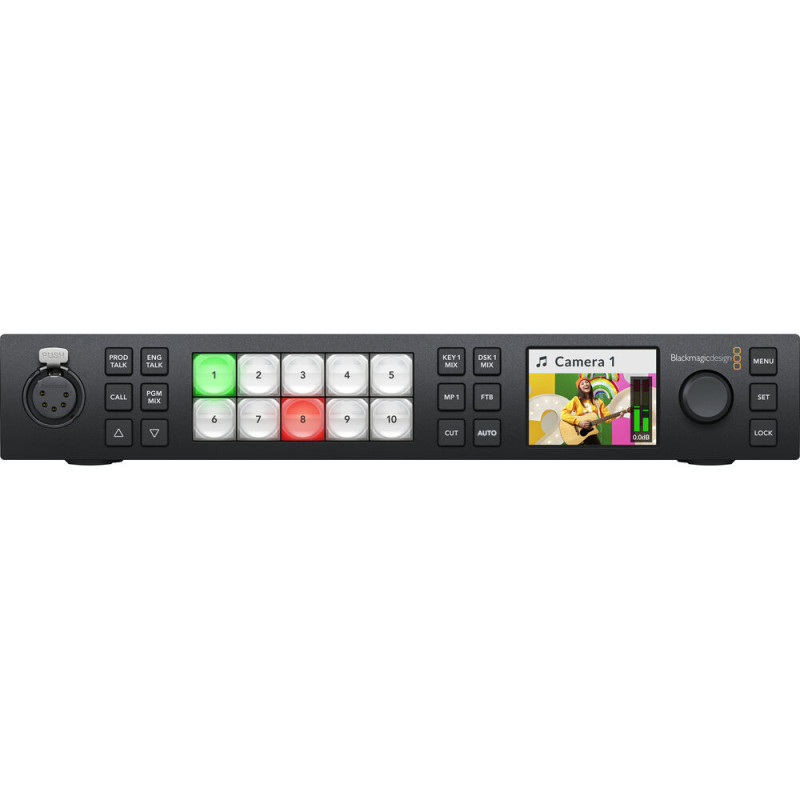

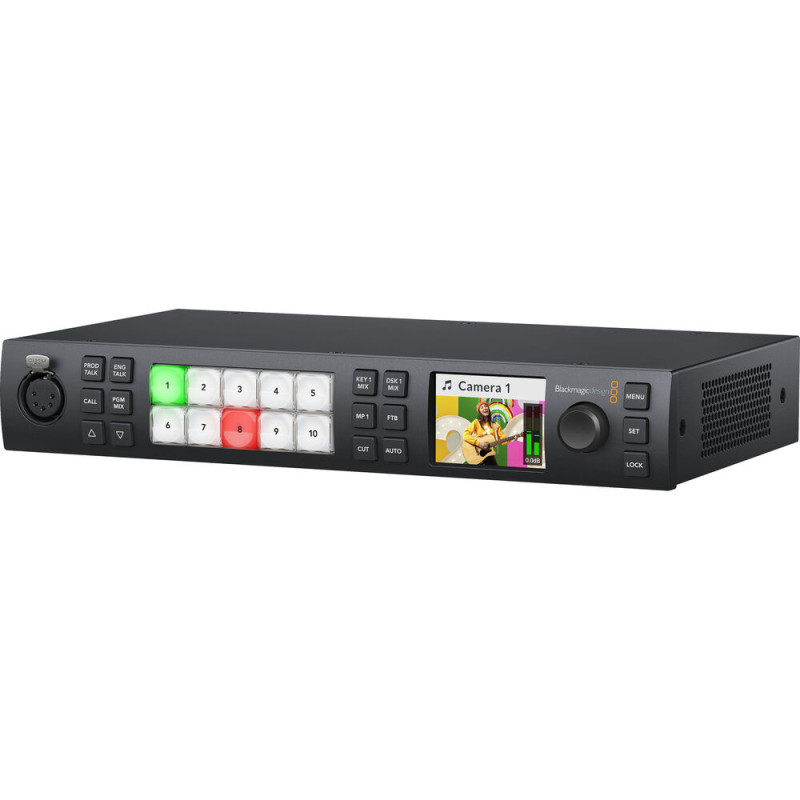

The Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher is one of the most powerful switchers for HD productions. This switch features 10 3G-SDI (BNC) inputs with full standard converters on each input and 6 3G-SDI (BNC) outputs, as well as one USB-C webcam output with built-in audio.
The Blackmagic ATEM 1 M/E Constellation HD also offers 2 analog audio inputs (1/4" TRS stereo) and a 28-channel Fairlight audio mixer with limiter, compressor, limiter, 6-band parametric EQ and expander on each input.
The switcher has advanced features such as DVEs, ATEM advanced chroma keyers, Multiview mode with up to 16 windows, SuperSource processors and more.
The Blackmagic ATEM 1 M/E Constellation HD video inputs support a variety of HD signal sources and all TV HD standards, including 720p, 1080i and 1080p, as well as freely switching between them. They support built-in audio, program outputs - talkback, tally and control information of compatible cameras.
All SDI inputs on the Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher are connected to the built-in Fairlight audio mixer, which also has additional analog audio inputs, talkback mics for voyeur and more.
The device supports broadcast transitions such as mix, dip, wipe, etc., which can be customized with control of color and frame width, position, direction, and more. etc. To avoid errors, there is the possibility to preview the transitions before they are applied.
Blackmagic Design ATEM 1 M/E Constellation HD has powerful processors for custom DVE transitions and effects.
The switch supports a talkback headset via a 5-pin XLR connector, as well as an RJ45 connector for connection to talkback systems for full talkback functionality.
Players can play RGBA graphics and animations from the media pool and act as additional sources to avoid having to use SDI graphics inputs.
Also available are Chroma/Luma keyers, 4 Upstream and 1 Downstream keyer, Color/Pattern generators and more.
The included ATEM Software Control Panel provides control over the unit and connected compatible HyperDeck recorders and other devices.

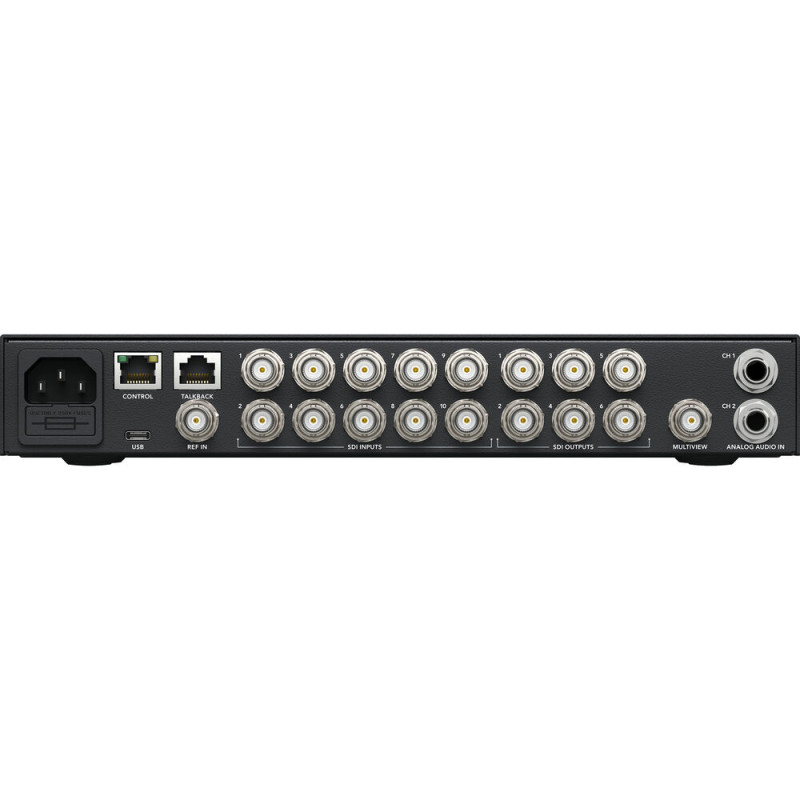

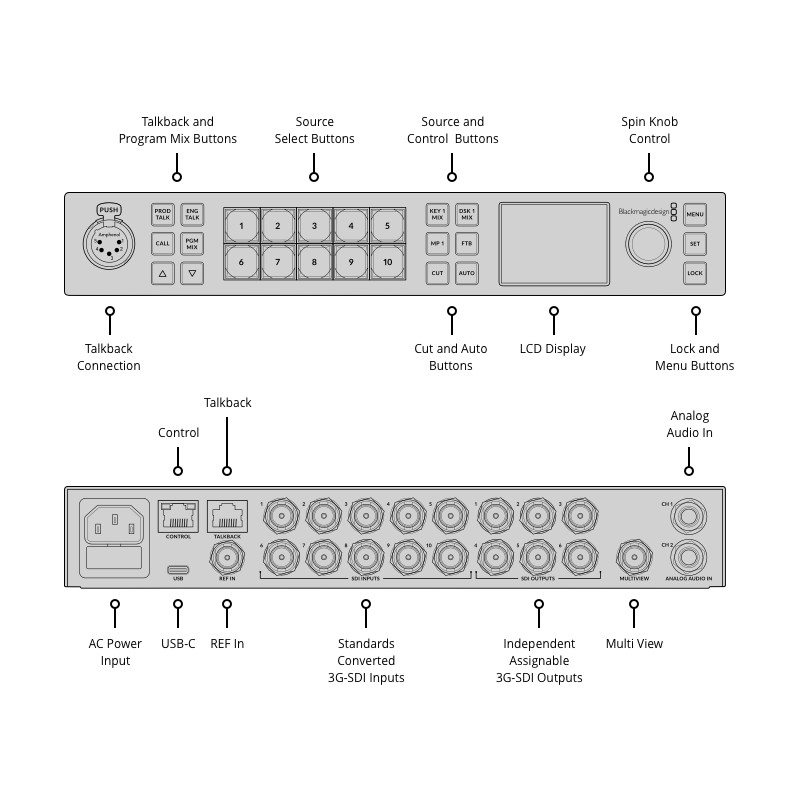

Inputs
3G/HD-SDI: 10x BNC
Audio: 2x 1/4" TRS stereo
Reference: 1x BNC
Exits
3G/HD-SDI: 6x BNC + 1x USB-C (USB Video) (Program)
Auxiliary: 1x BNC
Programmable: 1x BNC
Multiview: 1x BNC, 1x HDMI
Others
1x BNC Blackburst, Reference, Tri-Level Sync Input
1x RJ45 Control
1x RJ45 Talkback Input/Output
1x XLR 5-Pin Talkback Input/Output
Incoming video:
SDI (10-Bit 4:2:2)
1080p @ 23.98/24/25/29.97/30/50/59.94/60 fps
1080i @ 50/59.94/60 fps
720p @ 50/59.94/60 fps
Output video:
SDI (10-Bit 4:2:2)
1080p @ 23.98/24/25/29.97/30/50/59.94/60 fps
1080i @ 50/59.94/60 fps
720p @ 50/59.94/60 fps
SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B
Video Sampling: 4:2:2, 10-Bit
Color: 10-Bit
Color space: REC 709
Audio mixer: 28-channel, Level and Peak metering, Master gain control, 6 band parametric EQ, Dynamics including Expander, Gate, Compressor, Limiter
Upstream keyers - 4; Downstream keyers - 1; Advanced Chroma keyers - 4; Linear/Luma keyers - 5; Transition Keyer (Stinger/DVE) - 1/1
Leary: up to 7
Generators: Pattern: 5, Color: 2
Media Player
Players: 2
Media Pool Still Image Capacity: 20
Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG, TIFF
Channels: Fill and Key for Each Media Player
Media Pool Clip Capacity: 2x 1080p60 (with Fill and Key / Shared Pool)
Media Pool Video File Format: TGA Sequence
Media Player Clip Length:
1080 HD: 200 Frames
720 HD: 400 Frames
Media Pool Audio File Format: WAV, MPE, AIFF
Compatibility: MacOS 11.11 Big Sur, Mac 12.0 Monterey or later, Windows 10 or 11
Consumption: 36 W
Dimensions: 27.9 x 17.63 x 4.42 cm
Weight: 1.87 kg
