Description

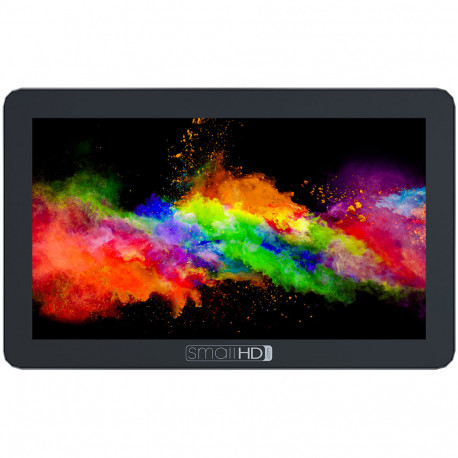

SmallHD 5.5 "FOCUS OLED SDI is a monitor with 1920 x 1080 OLED touch screen and the ability to power selected DSLR and mirrorless cameras. The high brightness of 350 cd / m² allows good visibility even in bright daylight, which allows trouble-free operation with all its functions .
This multifunction monitor is powered by a single Sony L battery and can supply power to select camera models with the appropriate adapter cable.

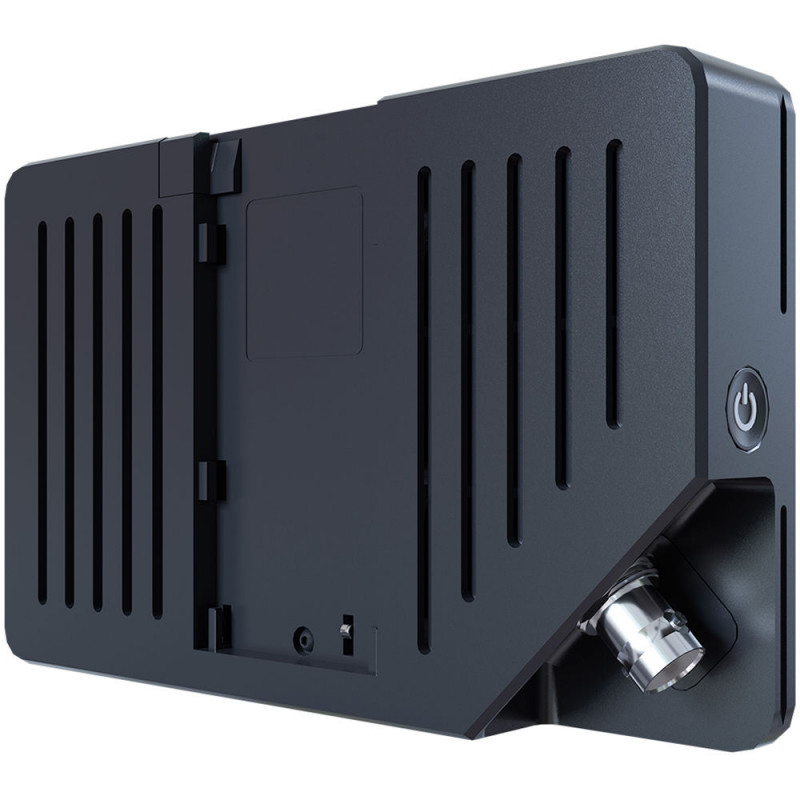

The case of SmallHD 5.5 "FOCUS OLED SDI is equipped with one SDI input, SD card slot, 3.5mm headphone jack and 3 1/4" -20 sockets for mounting accessories. The set includes a 180 ° tilt arm for mounting the monitor to the accessory case or camera tripod thread.
Display diagonal: 5.5 "/ 14.0 cm
Ratio: 16: 9
Viewing angle: 160 °
Max. brightness: 350 cd / m2
Contrast: 60000: 1
Color: 8-Bit (16.7 million colors)
PPI: 400 ppi
Color Gamut: 105% NTSC
Real-Time LUT Monitoring: SDR
Functions: Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
I / O
Video: 1x BNC (3G-SDI) input
Audio: SDI built-in; 1x 1/8 "/ 3.5mm Line In / Headphone Out
Power supply: 1x Barrel Out
Other: 1x USB 2.0 (Micro-USB)
Supported formats:
Video:
SDI (10-Bit 4: 2: 2 YCC)
1080p: 50/60
1080i: 60
480i: 29.97
576i: 50
SDI (8-Bit 4: 4: 4/4: 2: 2 RGB, YCC)
1080p: 24/25/30/60
1080i: 50/60
1080PsF: 24/25
720p: 50/60
Dimensions: 8.6 x 2 x 14 cm
Weight: 255 g
Box contents
Mounting arm SmallHD FOCUS 180 Degree Tilt Arm Mount
Screen protector
SmallHD Thin BNC Cable (60 cm)
4x cable clamp
