Camera Blackmagic Design URSA Broadcast G2

Code:102020066
URSA Broadcast G2
URSA Broadcast G2 URSA Broadcast G2
  • Compact and lightweight broadcast camera for live productions B4 / Canon EF bayonet
  • Video: Blackmagic RAW, ProRes 4K 3840 x 2160 60fps reduced from 5.3K, bRAW 6K 6144 x 3456 50fps
  • Audio: ProRes 2 channels 24-Bit 48 kHz LPCM
  • 4 "touch screen
  • Built-in ND filter (2/4/6)
  • 400/3200 dual native ISO
  • SDI output
  • 2 x XLR input
  • 3.5mm headphone output
  • 2x USB-C 3.1 video i / o + data
Price: 9 159,00 BGN

Description

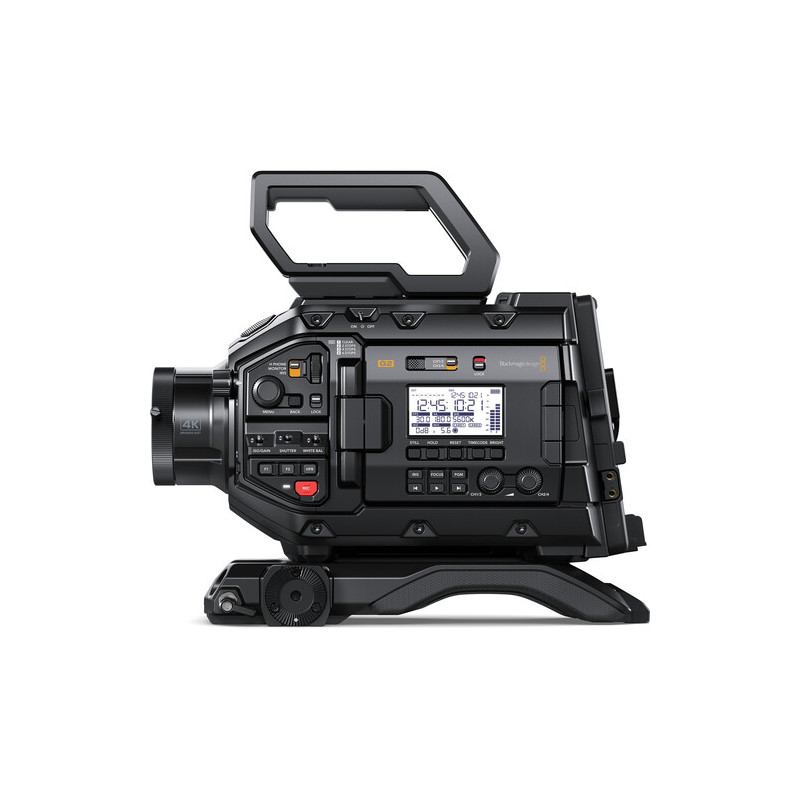

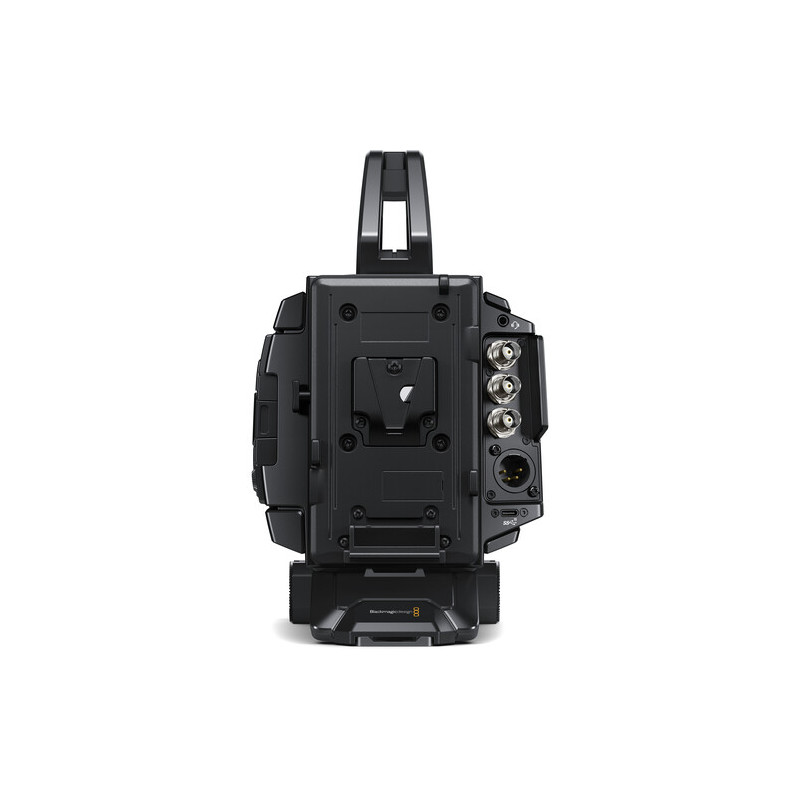

Blackmagic URSA Broadcast G2 is a camera that is designed to work in both traditional and online broadcast productions. The design of the camera is 3 in 1 - 4K broadcast camera, 4K studio camera or 6K cinema camera. In addition to streaming, it is possible to record video on SD UHS-II or CFast 2.0 cards, as well as on an external hard drive via USB-C interface. Supported video formats are the most common H.264, H.265, ProRes or Blackmagic RAW. The Blackmagic URSA Broadcast G2 also has the option of changing the bayonet, which makes it a very versatile camera for any work scenario.

Blackmagic URSA Broadcast G2 is a compact 4K broadcast camera, specially developed for recording live broadcasts. The Super 35mm sensor also allows you to capture 6K video in movie camera mode.

The camera can be controlled via all Blackmagic Design ATEM devices equipped with an SDI connector.

The body of the camera is made of magnesium, which guarantees stability, and a 4-inch touch screen with HuD support for maximum monitoring and control, while supporting 3D LUT for reviewing the image.

The Blackmagic URSA Broadcast G2 offers an ISO range from 100 (-12 dB gain) to 25,600 (+36 dB gain) and is optimized to efficiently control image noise and grain while maintaining the full dynamic range of the sensor. The main native ISO value is 400, suitable for studio shooting, and the secondary - 3200, usable in low light conditions.

The 6K sensor ( 6144 x 3456 ), combined with 5th generation Blackmagic color science, provides an image like a digital movie camera, and with the built-in DaVinci Resolve YRGB color corrector, the images are better than those of regular broadcast cameras.

In addition to a touch screen, Blackmagic URSA Broadcast G2 is equipped with a set of buttons and controllers that allow quick and convenient adjustment of brightness, contrast, focus peaking, zebra, LUTs, etc., and the buttons can be set various functions.


Sensor: 6144 x 3456 (6K) , ISO 100 - 25 600, 64.62dB dB signal-to-noise (for 4K)
Bayonet: B4 / Canon EF
Video connectors: 1x SDI output
Audio connectors: 2x XLR, 1x 1/8 "/ 3.5 mm TRRS Headphone / Microphone input / output
Others: 2x USB Type-C USB 3.1 Gen 1
Video recording: Blackmagic RAW 12-Bit: 6144 x 3456 (6K) @ 23.98 / 24/25 / 29.97 / 30/50 fps (65 to 483 Mb / s)
6144 x 2560 (6K) @ 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps (60 to 359 Mb / s)
ProRes:
3840 x 2160p @ 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps reduced from 5.3K
1920x1080p @ 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60/120 fps reduced by 2.7K
Audio recording: ProRes: 2-Channel 24-Bit 48 kHz LPCM
Power supply: External 12V DC 100W or V-mount battery
Mounting: accessories 2x 1/4 "-20,
Dimensions: 27.81 x 25.22 x 15 cm
Weight: 3.55 kg

Blackmagic URSA Broadcast G2 scheme

Blackmagic URSA Broadcast G2 dimensions

Box contents

Blackmagic Design Ursa Broadcast G2

Blackmagic Design Studio Camera 4K Plus - Mft

Sunshade
Bayonet cap
Power supply
Set of plates for tally indicator
15mm LWS tile mounting

4K B4 lens mount installed

B4 bayonet cap

EF bayonet with cap

VLock Battery Plate installed

URSA 12V 100W power supply

URSA Mini Shoulder Pad

URSA Mini top handle & rubber stopper

Viewfinder mounting plate

2 x 1/4 inch baseplate screws

2 x long 1/4 inch top handle screws

2 x short 1/4 inch top handle screws

8 x EF Mount screws

4 x VLock plate spare screws

Welcome wallet with QR code for camera software download

DaVinci Resolve Studio wallet

DaVinci Resolve Studio activation key
