Description

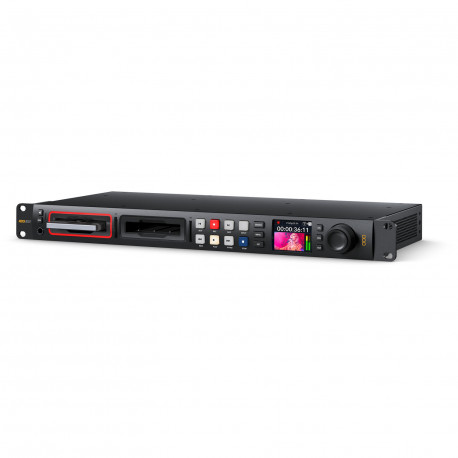

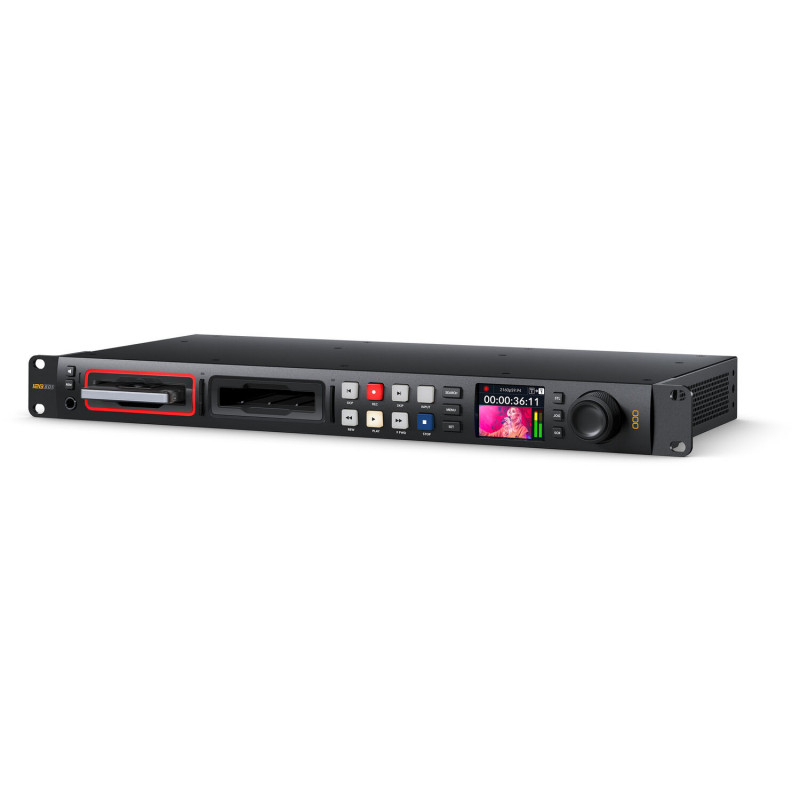

Blackmagic Design HyperDeck Studio 4K Pro is a professional broadcast deck for recording, playback and video monitoring up to DCI / UHD 4K 30p, which is an electronic version of the classic tape decks.
Blackmagic Design HyperDeck Studio 4K Pro is equipped with 12G-SDI input and two 12G-SDI outputs, loop-through SDI output and a special SDI output for monitoring, as well as HDMI input and output. All ports support video up to DCI 4K and automatically detect SD, HD and 12G-SDI format.
The recording of uncompressed (ProRes or DNxHD) or H.264 10-bit 4: 2: 2 video is done through two SSD slots and two SD card slots or by recording on external media via USB-C, and the port can be also used for streaming source to computer.

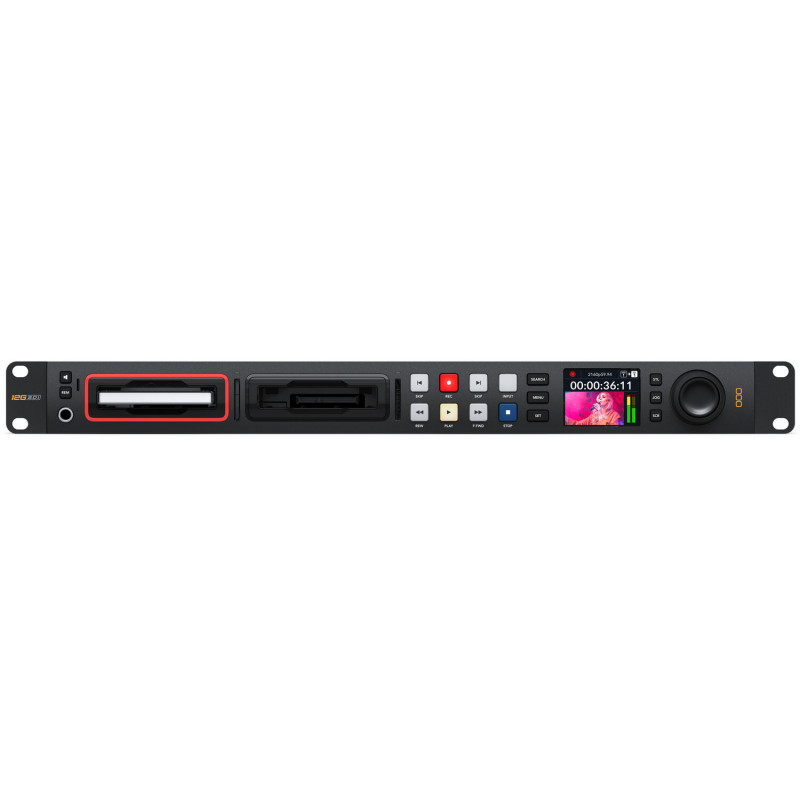

The controls of the Blackmagic Design HyperDeck Studio 4K Pro include a set of illuminated buttons and a rotary selector on the front panel, which also has a color display for direct monitoring, including for color spaces Rec.2020 and Rec.709.
Blackmagic HyperDeck Studio 4K Pro has a 1 RU metal housing, designed for installation in crabs for convenient use in PTS, in the field, in the studio, etc.
Timecode, reference and sync generators allow the connection of multiple HyperDeck Studio devices for ISO recording and editing of multi-camera footage, as well as the simultaneous transmission of multi-screen walls.
The dual memory slots of Blackmagic HyperDeck Studio 4K Pro allow for continuous continuous recording and real-time memory replacement. Each slot is equipped with a status indicator. H.265 allows up to 58 hours of 2160p60 UHD video recording on 1TB of memory. The USB Type-C port gives the option to use external media, as well as the connection of Blackmagic MultiDock 10G with four SSD slots.
The Blackmagic HyperDeck Studio 4K Pro offers Fill and Key outputs for broadcast animations, supporting ProRes 4444 HD files, and the USB-C port provides a PC connection for direct HD video to any video software.
SDI and HDMI inputs automatically detect HDR standards and tag files with the correct HDR information, static metadata PQ and HLG formats are treated according to the ST2084 standard. It is also possible to load 3D LUT to the monitoring output.
HyperDeck Studio 4K Pro accepts professional multi-channel SDI audio signal for recording up to 16 channels in real time. It is possible to monitor the metrics for all channels.
The FTP client on the deck allows fast file transfer, and a convenient and easy text protocol is used for remote control, which can be used by applications such as Telnet. Traditional remote control via RS-422 is also available.

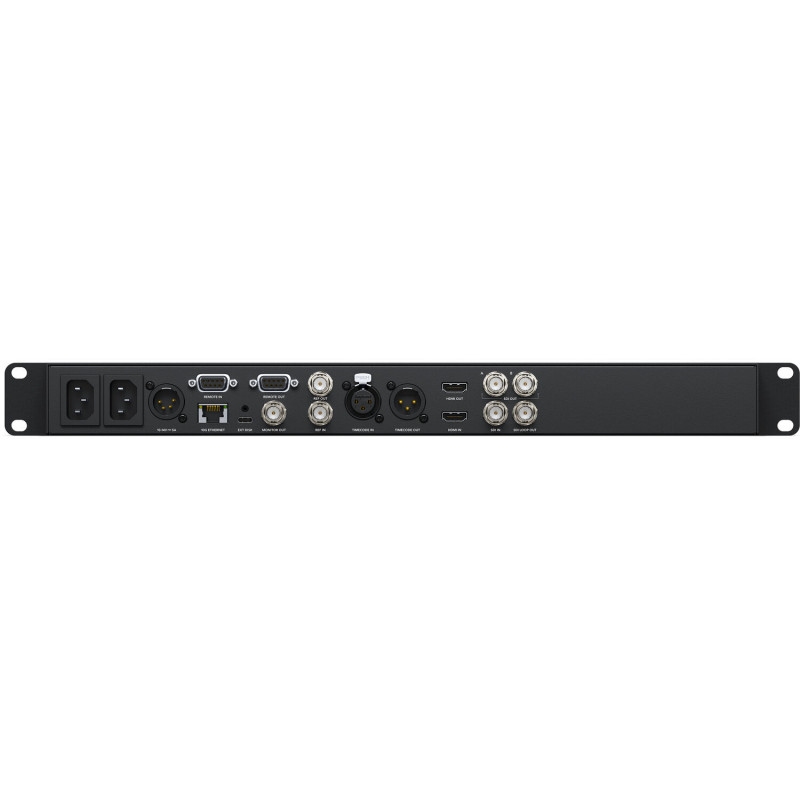

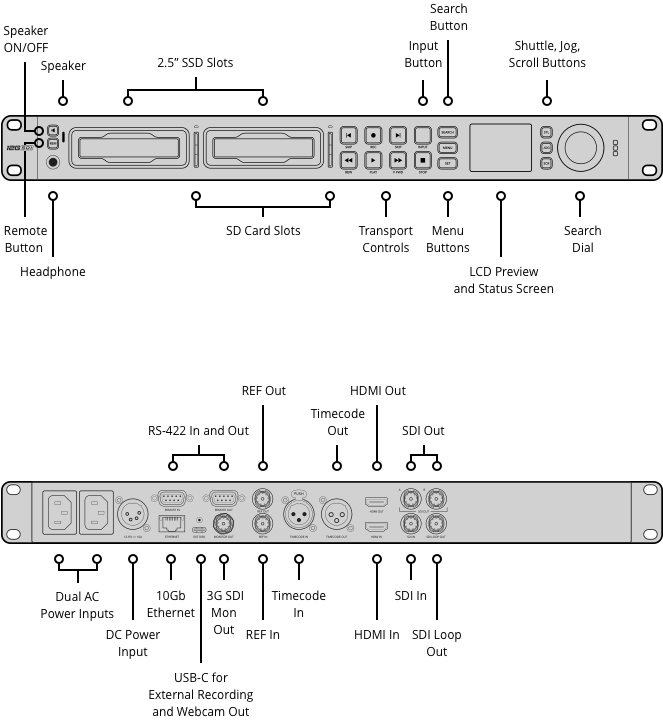

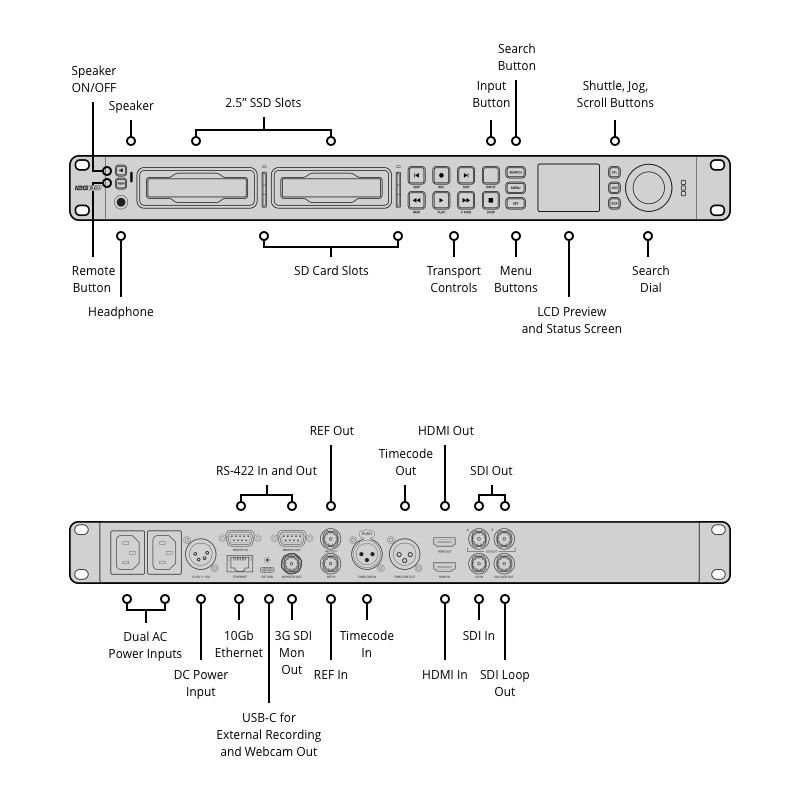

Video input: 1x BNC 12G-SDI, 1x HDMI 2.0
Video output: 1x BNC 12G-SDI; 1x BNC SDI Loop-Through, 1x SDI Monitor Output; 1x HDMI 2.0
Built-in audio input: 16 SDI / HDMI channels, output: 8 SDI / HDMI channels
Audio output: 1x 1/4 "headphone jack; mono speaker
Network: 1x RJ45 1 Gb / s
Reference input / output: 1x BNC
Timecode input / output: 1x BNC
Remote control: 1x RS-422 input / output
Memory: 2x SSD 2.5 "SATA 3Gb / s; 2x SD UHS II
Video
DCI / UHD 4K 2160p: 30 / 29.97 / 25/24 / 23.98
2K 1440p: 30 / 29.97 / 25/24 / 23.98
1080p: 60/50/30 / 29.97 / 25/24 / 23.98
1080PsF: 30 / 29.97 / 25/24 / 23.98
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50
NTSC / PAL
525i 59.94
625i 50
480p60 and 576p50 via HDMI only
SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084 and SMPTE 2108-1
SDI metadata: HD RP188 and closed captioning CEA ‑ 708, HDR metadata via SDI
Video sampling: 4: 2: 2 YUV
Color: 10-bit
Color space: REC 601, REC 709, REC 2020 + 3D LUTS on SDI Monitor Out
Audio sampling: 48 kHz, 24-bit
Supported codecs: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime for all formats up to 2160p30. Playback on: ProRes 4444 QuickTime up to 1080p60 with Auto Routing of Fill and Key via SDI A and B outputs, DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps, DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 30 fps, H.264 SDI 4: 2: 2 10-Bit, H.264 High 4 : 2: 0 8-Bit, H.264 Medium 4: 2: 0 8-Bit, H.264 Low 4: 2: 0 8-Bit for all Progressive formats up to 1080p60
Compatibility: macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10, 64-Bit
Dimensions: 48.3 x 23.6 x 4.4 cm
Weight: 2.5 kg
