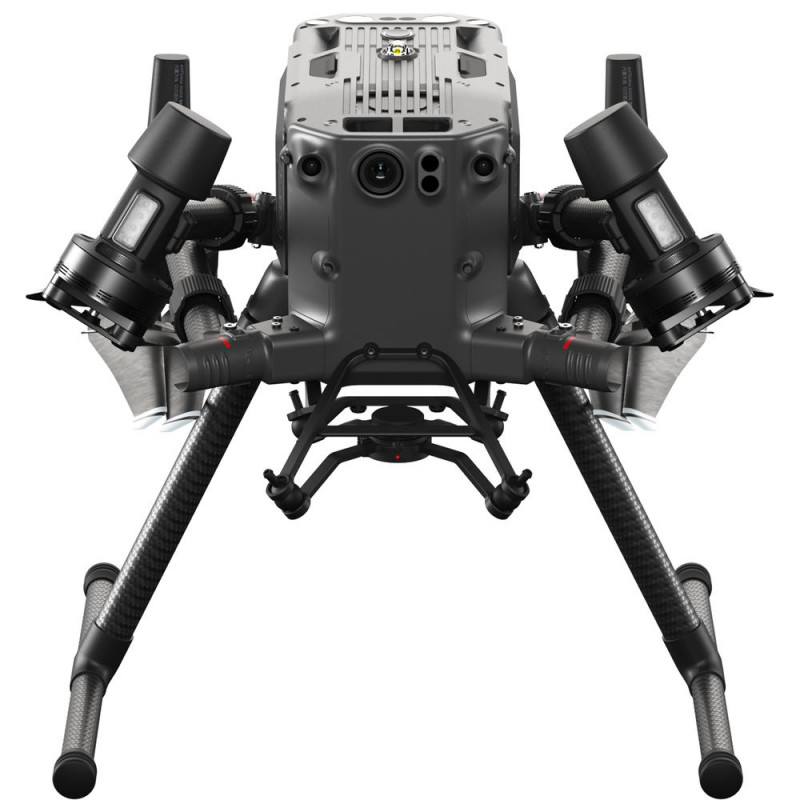

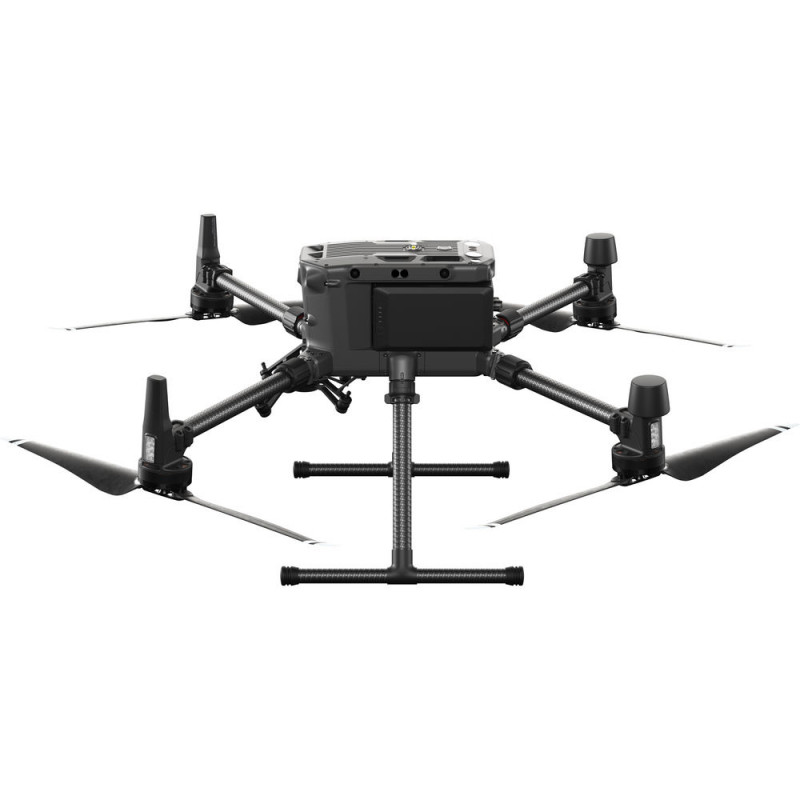

Drone DJI Matrix 300 + RTK

Description

The drone is equipped with a built-in RTK (Real-Time Kinematic) module, which provides better resistance to magnetic interference caused by metal structures and thus provides a more stable flight.

DJI Matrice 300 is resistant to moisture and dust (IP45) and withstands temperatures from -20 to 50 ° C. The maximum flight time is up to 55 minutes, and the maximum distance at which the drone can send an FHD video signal is 15 km.

Obstacle detection and positioning system with sensors in six directions

DJI Matrice 300 is equipped with dual-vision and ToF sensors with a range of over 3 m, aimed in six directions for maximum good positioning of the aircraft and protection of objects, people and animals.

OcuSync Enterprise

The all-new OcuSync Enterprise system delivers 3-channel FHD video up to 15km, automatically switching between 2.4 and 5.8 GHz for more reliable flight in high-interference environments, and AES-256 encryption provides maximum data transfer security .

Three payload configurations

DJI Matrice 300 allows you to choose between three different configurations for attaching cameras - a single camera at the bottom, two cameras - one at the bottom and top, and three cameras - two at the bottom and one at the top.

Waypoints 2.0

The drone allows the creation of up to 65,535 points by assigning multiple actions to each point for one or more payload configurations, as well as planning the flight route to reach the points more efficiently.

Smart Pin and Track

Smart Pin allows you to select an object with one click, the coordinates of which the drone calculates. The coordinates are superimposed on the view from the cameras via an AR icon, and the new location is automatically shared with another remote controller or online platforms such as DJI FlightHub.

Smart Track identifies and tracks moving objects with an automatic zoom that keeps the subject visible, and the current location of the subject is constantly monitored and shared with another remote controller or online platforms such as DJI FlightHub.

AI Spot-Check

In automated flights, AI Spot-Check recognizes objects from previous flights and ensures their constant framing.

Primary Flight Display

The DJI Matrice 300 remote controller is equipped with a new main display that provides flight and navigation information - altitude, speed, wind speed, wind direction, direction, trajectory, PinPoint information and more. A separate map shows nearby obstacles.

UAV Health Management System

The integrated UAV Health Management system shows the current status of all drone systems, message logs and manuals for troubleshooting and maintenance of the drone, as well as flight logs, flight duration and more.

Pilot and FlightHub

The Pilot and FlightHub applications ensure that the drone is fully utilized and included in a group with other drones.

SDK customization

DJI Matrice 300 allows SDK customizations related to the payload (integration of various devices such as speakers, sensors, etc.), positioning system, UAV Health Management System, mobile applications and more.

ADS-B Airsence

The drone is equipped with an ADS-B (Automatic Dependent Surveillance – Broadcast) Airsence system for detecting nearby aircraft with ADS-B transponders and a beacon.

Zenmuse compatibility

DJI Matrice 300 is compatible with DJI Zenmuse XT2, XT S, Z30, H20 and H20T cameras and gimbals

Aircraft

Weight: 3.6 kg with propellers and one gimbal, without batteries
Dimensions: folded: 420 x 430 x 430 mm; unfolded: 670 x 430 x 810 mm; diagonal: 895 mm
Payload: up to 2.7 kg
Maximum lifting speed: 6 m / s
Maximum descent speed: 7 m / s
Maximum flight altitude: 7000 m above sea level
Maximum flight duration: 55 min
Maximum speed: 23 m / s
Wind resistance: up to 15 m / s
Maximum angle of inclination: 30 °
Maximum rotation speed: 300 ° / s
Operating environment: -20 ° C to 50 ° C
Operating frequency: 2.4 GHz / 5.8 GHz
GNSS: GPS, GLONASS, BeiDou, Galileo
Battery: LiPo 12S TB60, 5935 mAh, 52.8 V

Vision System

Sensor range: 0.7 to 40.0 m
Forward range: 65 ° (horizontal), 50 ° (vertical)
Range down: 65 ° (front-back), 50 ° (latitude)
Backward range: 65 ° (horizontal), 50 ° (vertical)
Working environment: surface with a clean pattern at more than 15 lux
Infrared sensors: 0.1 to 8.0 m with more than 10% reflection from the subject

Remote controller

Frequency: 2.4 GHz (2,400 - 2,484) / 5.8 GHz (5,725 - 5,850)
Range: up to 8 km
Transmitter power: 29.5 dBm (2.4 G) / 28.5 dBm (5.8 G) / 12.5 dBm (5.8 G)
Battery: LiPo, 4290 mAh
