Description
Hollyland Cosmo 2000 HDMI / SDI Wireless Video Transmission System allows wireless transfer of HDMI / SDI video signal up to 1080p60 at a distance of up to approx. 600 m with a delay of only 1 ms.

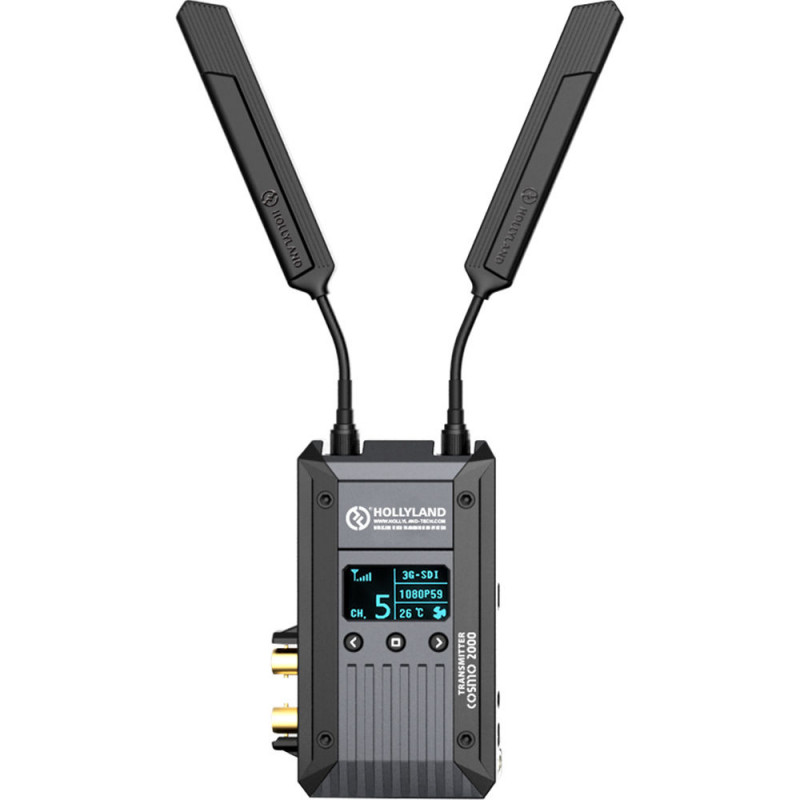

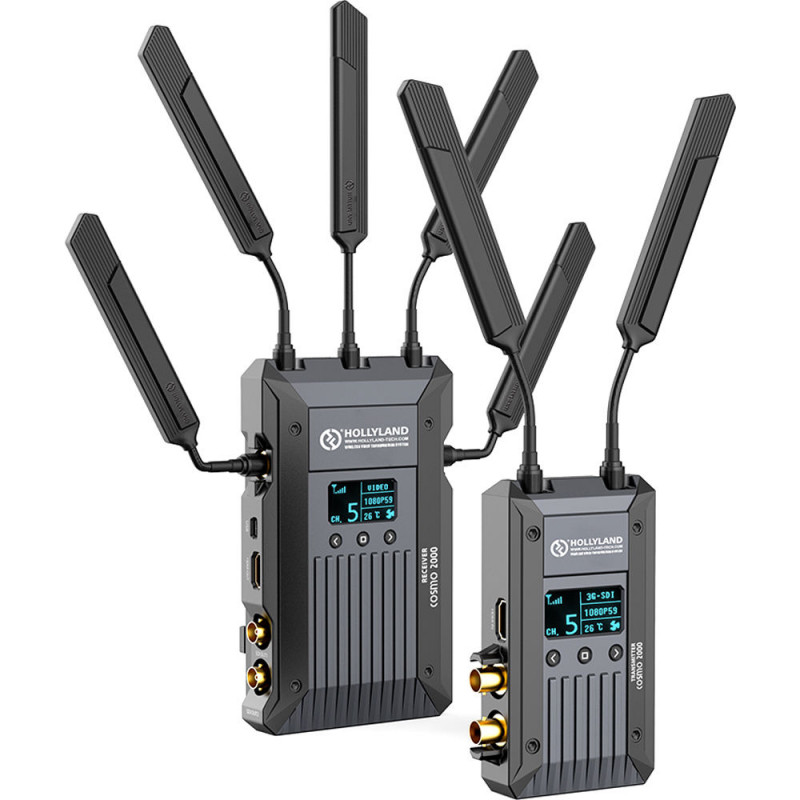

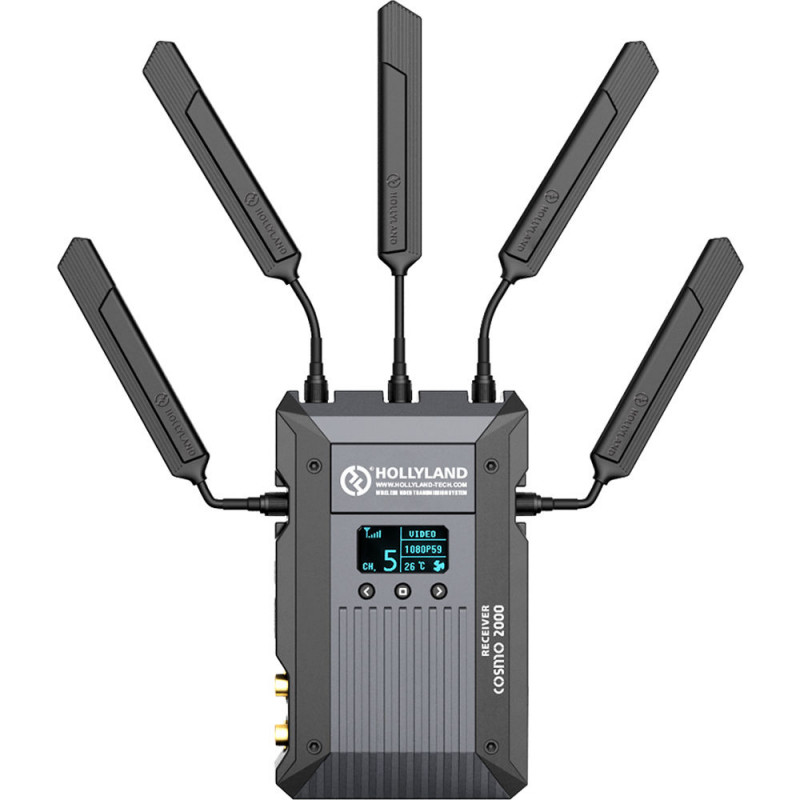

The system transmitter has HDMI and 3G-SDI inputs, as well as a 3G-SDI Loop output, and the receiver has HDMI and two 3G-SDI outputs. The transmitter is equipped with 2 RP-SMA antennas, and the receiver - with five antennas of the same type for the most stable signal, which is encrypted - receivers that are intended as recipients can not receive a pure signal, even if set to the same frequency.
Hollyland Cosmo 2000 is software optimized to work with ARRI ALEXA Mini.
The transmitter can only be powered by a permanent power supply with a 4-pin LEMO connector, while the receiver can also be powered by an external battery. A Mini-USB port for upgrade is available.
Video connectors:
Transmitter: 1x HDMI Type A input, 1x BNC (3G-SDI / HD-SDI / SD-SDI) input, 1x BNC (3G-SDI / HD-SDI / SD-SDI) Loop output
Receiver: 1x HDMI Type A output, 2x BNC (3G-SDI / HD-SDI / SD-SDI) output
Audio: HDMI / SDI 2-Channel (24-Bit 48 kHz), 1/8 "/ 3.5 mm audio input on the transmitter
128-Bit AES encryption
Frequency: 5.1 to 5.9 GHz
RF Power: <18 dBm
RF Sensitivity: -75 dBm
Supported video formats:
1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1080i / 720p @ 50, 59.94, 60 fps
576p @ 50 fps
480p @ 60 fps
Dimensions: 11.7 x 6.9 x 2.5 cm transmitter (without antennas); 15.7 x 10.2 x 2.5 cm receiver (without antennas)
Weight: 312 g transmitter; 519 g receiver
Box contents
Transmitter Hollyland Cosmo 2000 Transmitter
Receiver with Gold Mount Battery Plate
2x 5 GHz antenna for the transmitter
5x 5 GHz antenna for the receiver
1x 5 GHz backup antenna
2x MushHollyland Cosmo 2000room Transmitter Antenna
Magic Arm
Crab Clamp
2x D-Tap - 4-Pin LEMO power cord
Hard case
