Description

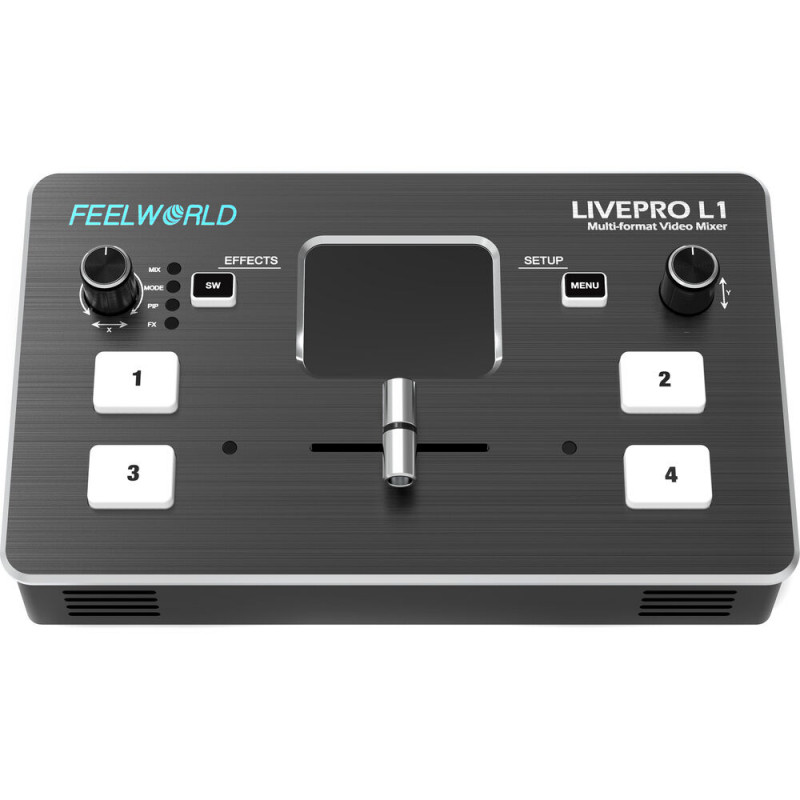

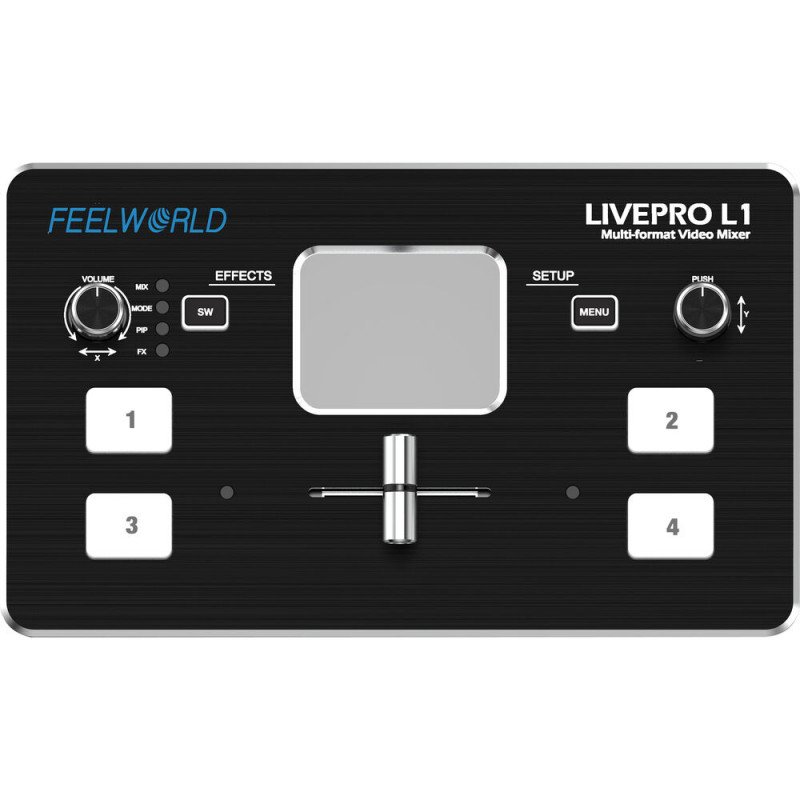

Feelworld LIVEPRO L1 is a compact multi-format switch and audio-video mixer for Full HD multi-camera live broadcast, which connects up to 4 devices via HDMI inputs.
Feelworld LIVEPRO L1 allows direct control via its own control panel or advanced options via PC, via optional software.
The built-in audio mixer emits the audio signal from the 3.5 mm input into the video signal from the HDMI inputs.

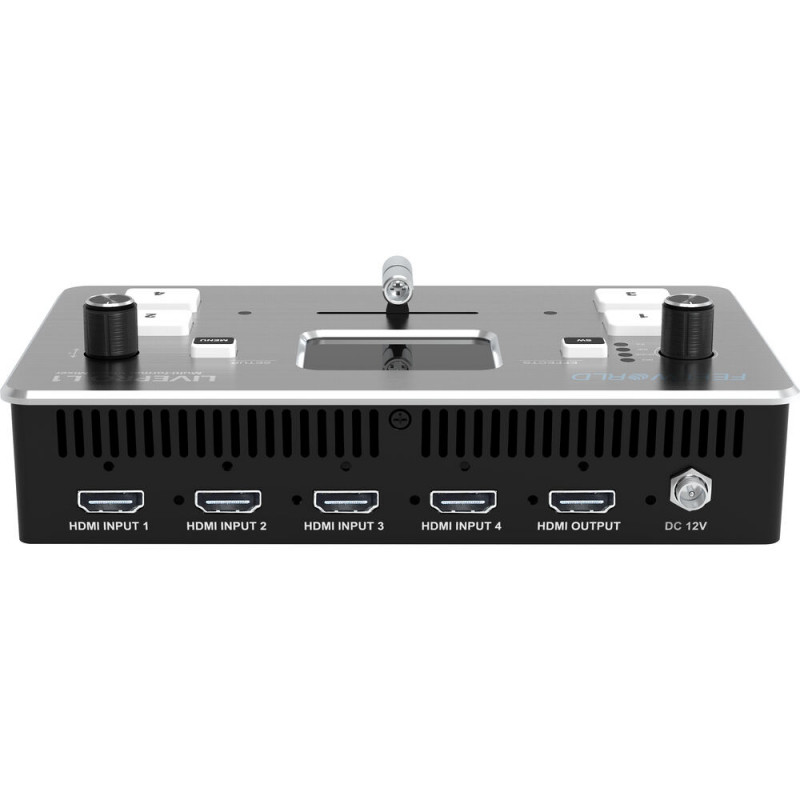

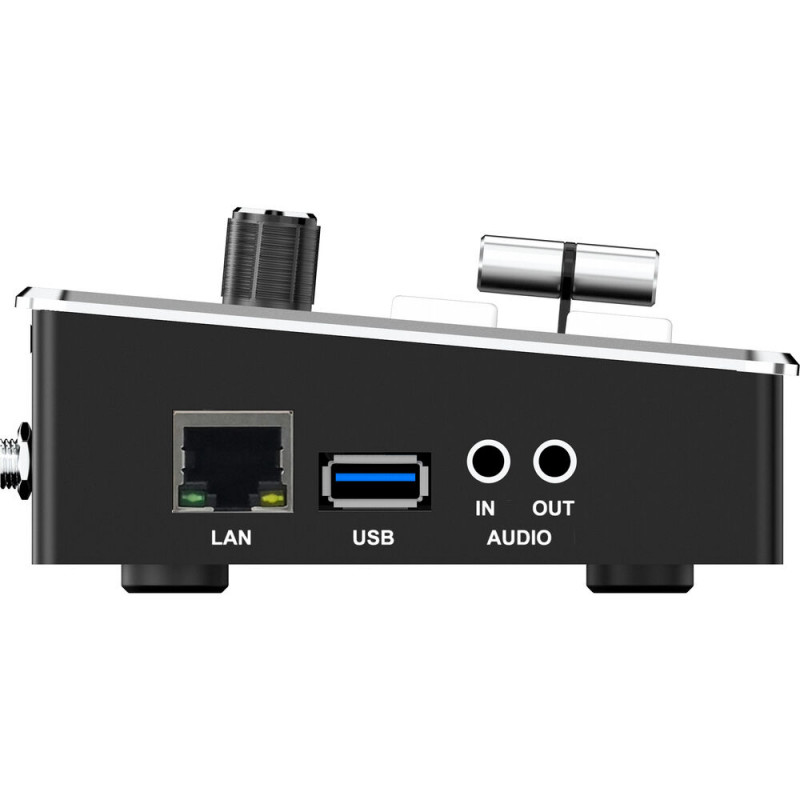

In addition to the four HDMI inputs and one HDMI output, USB and RJ45 LAN outputs are available, which allow for live streaming via a computer. The HDMI output supports PGM out with up to six sources.
The built-in 2-inch display allows simultaneous monitoring of up to 4 of the input HDMI signals and supports Picture-in-Picture, DSK and PTZ control with optional software.
Supported resolution (in / out): up to 1080p60
Auto Cut and 14 manually controlled transitions with T-bar
UVC-compliant USB out for live streaming
Support for built-in audio via HDMI or built-in 3.5mm audio input
3.5mm audio output (analog audio)
Video in:
1080p: 23.98 / 24/25/30/50/60 fps
1080i: 50/60 fps
720p: 50/60 fps
FWXGA (1366 x 768): 60 fps
SXVGA (1280 x 1024): 60 fps
UXGA (1600 x 1200): 60 fps
WUXGA + (1680 x 1050): 60 fps
WXGA (1280 x 800): 60 fps
WXGA + (1440 x 900): 60 fps
XGA (1024 x 768): 60 fps
Video out:
1080p: 60 fps
720p: 60 fps
FWXGA (1366 x 768): 60 fps
WUXGA + (1680 x 1050): 60 fps
WXGA + (1440 x 900): 60 fps
SXGA (1280 x 1024): 60 fps
WXGA (1280 x 800): 60 fps
XGA (1024 x 768): 60 fps
Size: 18.5 x 11 x 3.9 cm
Weight: 648 g
Box contents
Power adapter
USB cable
