Description

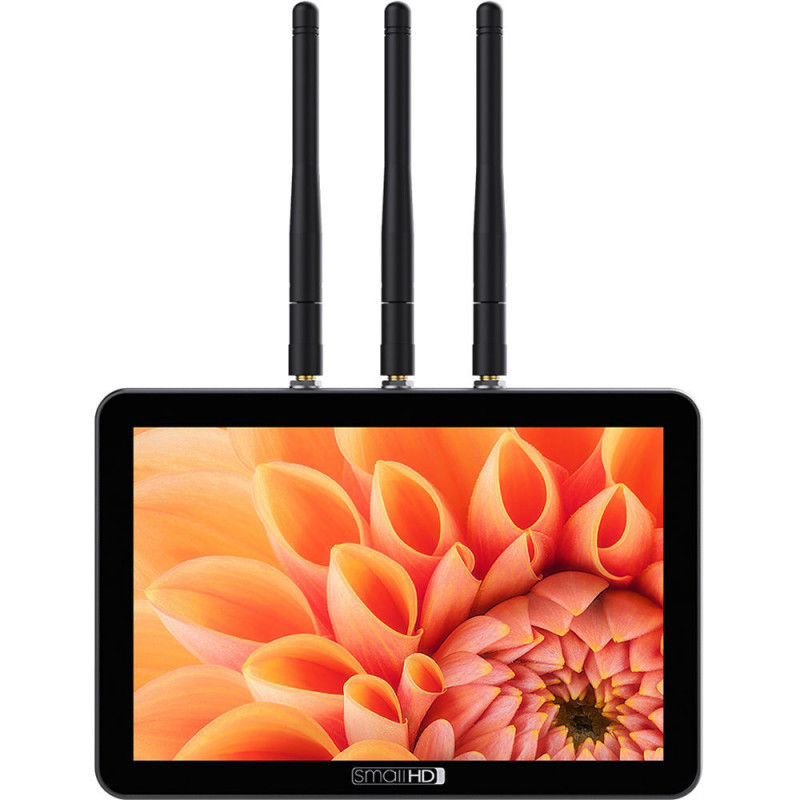

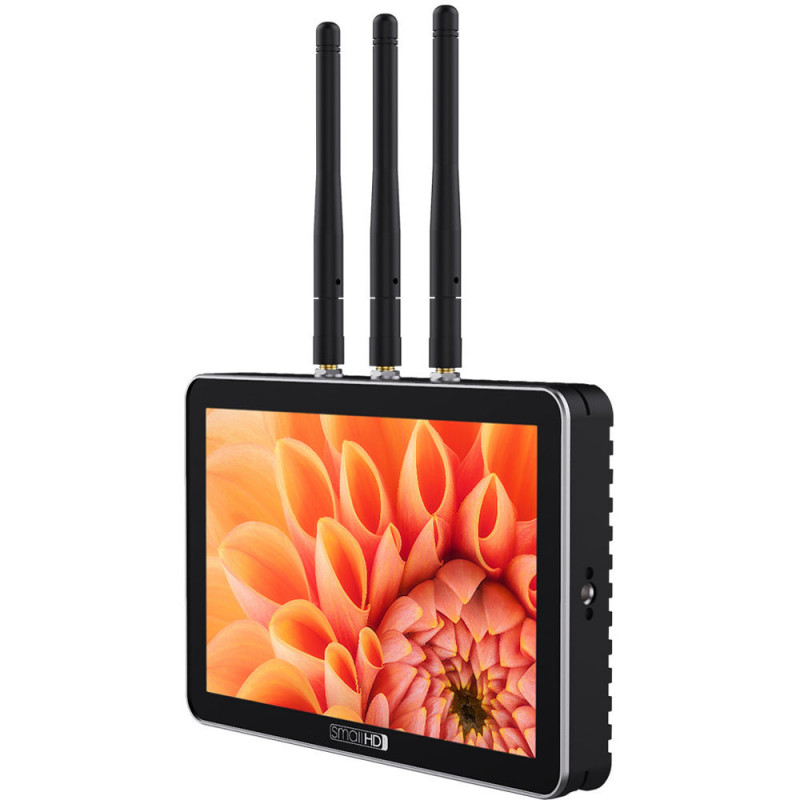

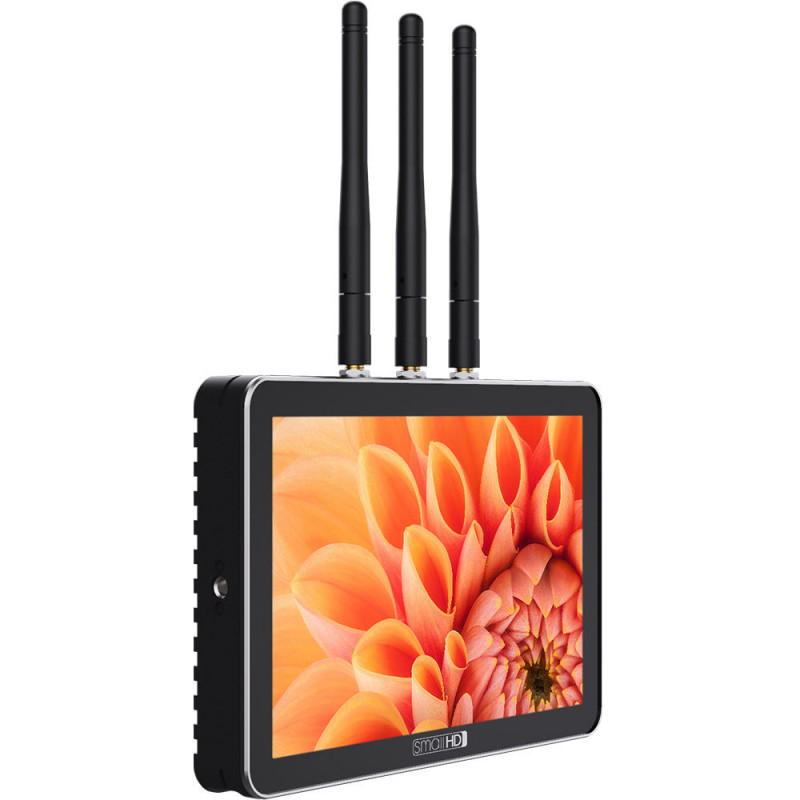

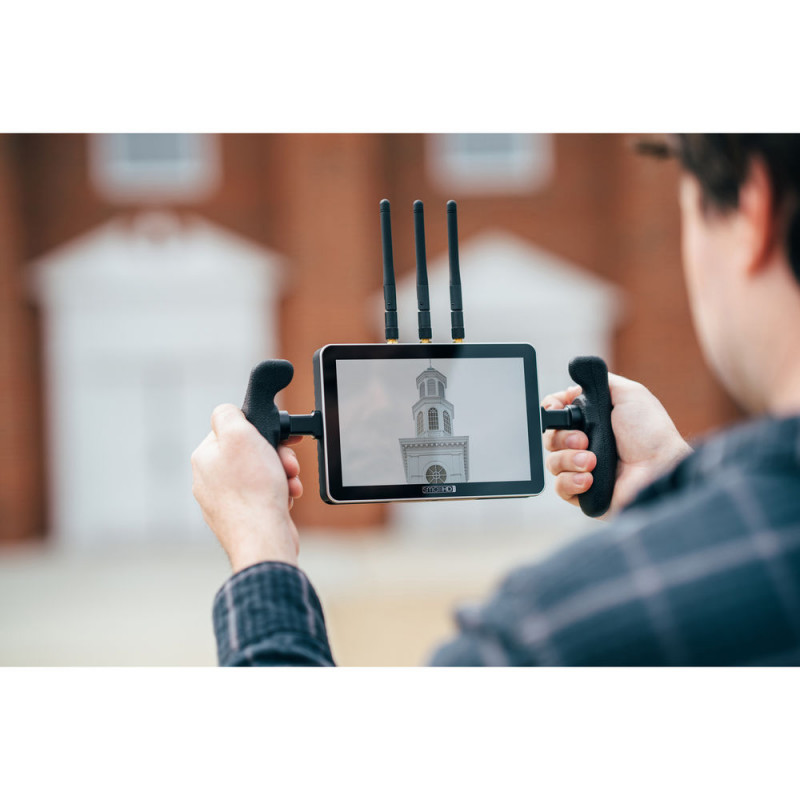

The SmallHD FOCUS 7 Bolt 500 RX combines a 7 "monitor with a 1920 x 1200 touch IPS LCD panel and 10-bit processing and the Teradek Bolt 500 wireless receiver. Using the built-in receiver, the monitor can receive up to 1080p60 video from Teradek Bolt 500, Bolt 500 transmitters LT or Bolt 500 XT, as well as the SmallHD FOCUS Bolt 500 TX at a distance of up to 150 m in direct view.The monitor supports up to 4K UHD video via micro HDMI.

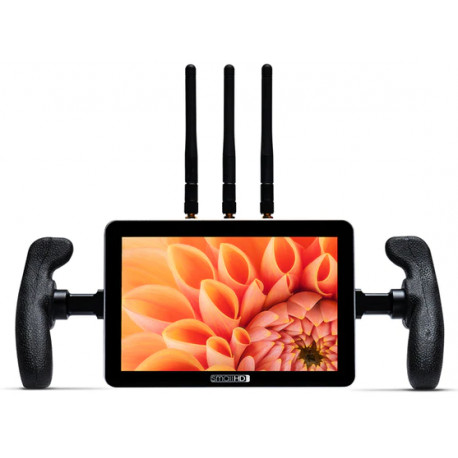

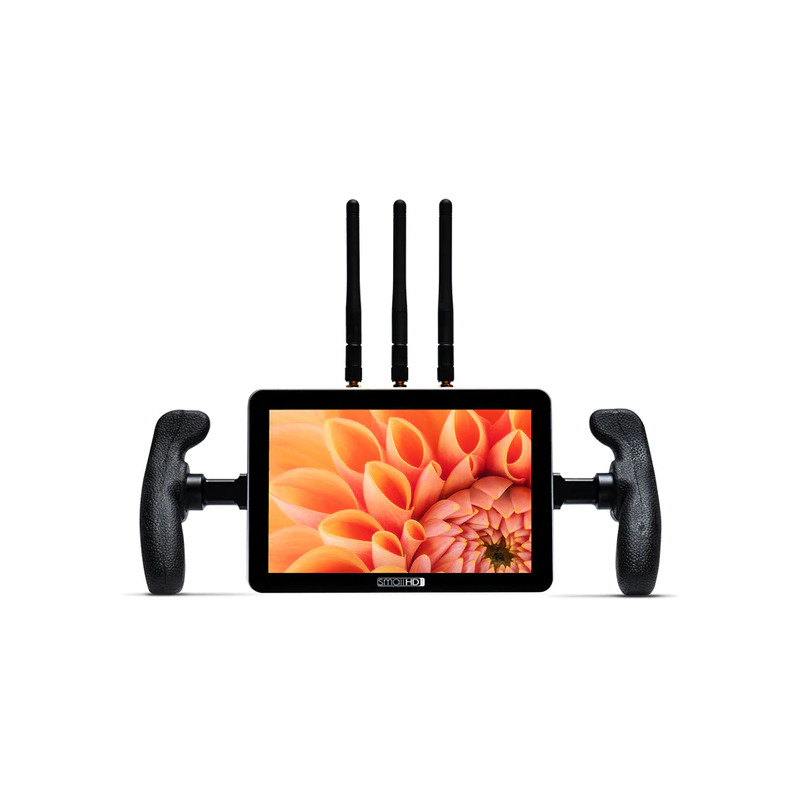

The included rubber handles and neck strap allow easy and comfortable carrying on the ground, and the high brightness of 1000 cd / m² allows for trouble-free operation in bright daylight.
OS3 offers an intuitive interface that, combined with the touchscreen, allows seamless navigation. Instead of the standard menus, the various functions can be implemented via up to 12 different pages with easy transition from one to another.

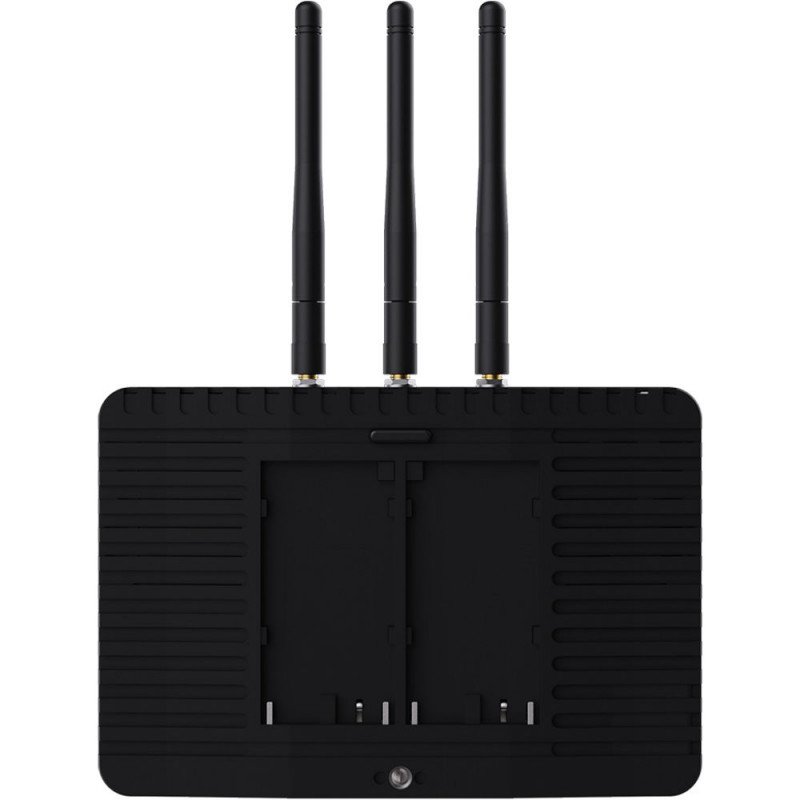

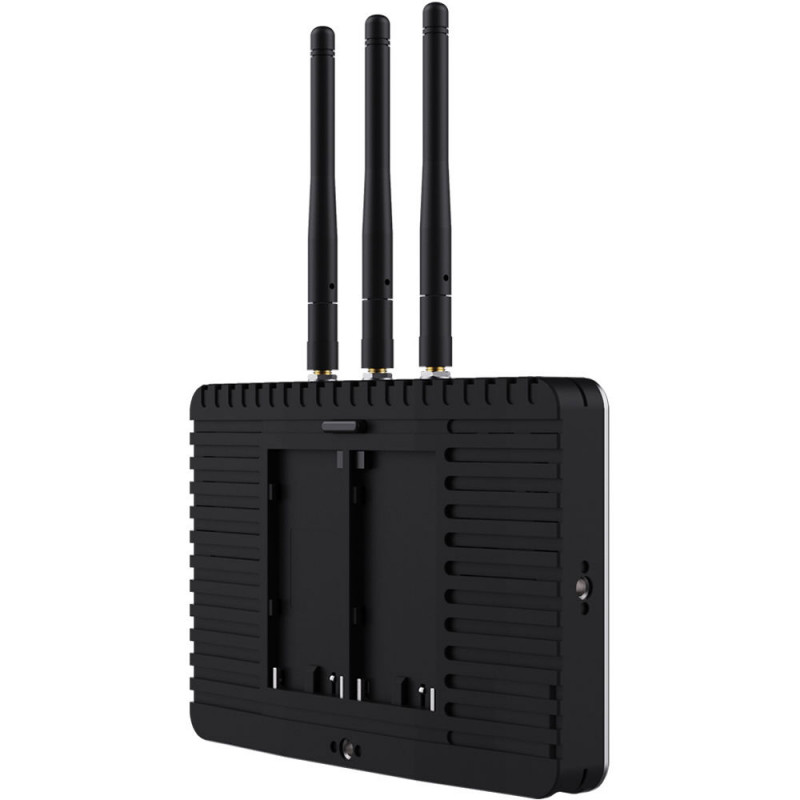

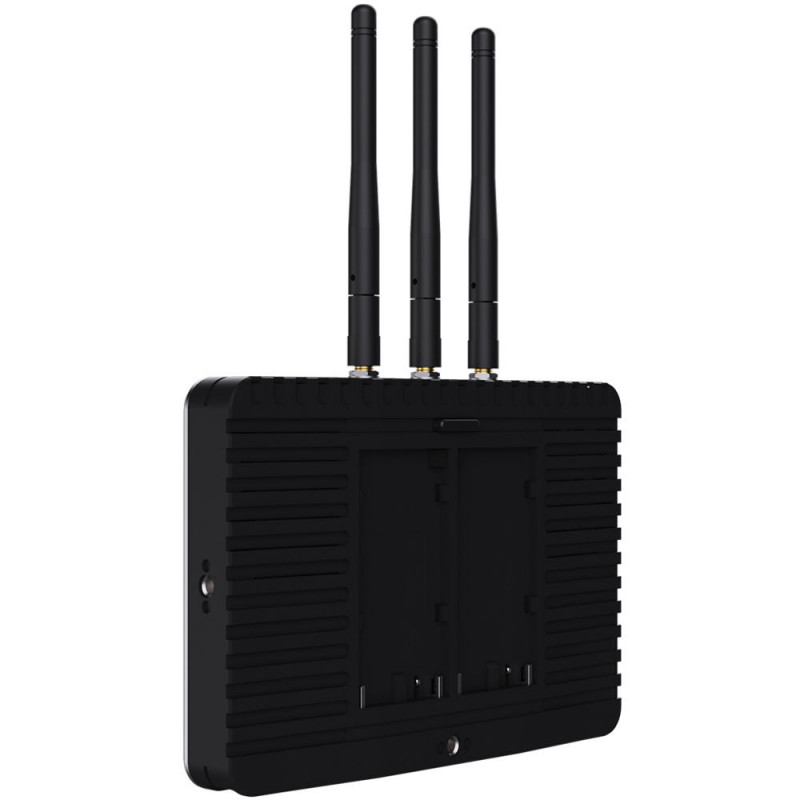

The SmallHD FOCUS 7 Bolt 500 RX is powered by two Sony L batteries and can supply power to select camera models with the appropriate adapter cable. The slots allow real-time battery replacement. It is equipped with an HDMI input 3.5mm headphone jack, SD card slot and 3 1/4 "-20 sockets for mounting accessories.
The features of the SmallHD FOCUS 7 Bolt 500 RX include:
2x and 4x pixel zoom with pinch zoom
Set and custom ratios of the parties
DSLR Scale (Canon 5D Mk II, Canon 7D)
Custom scale (underscan only)
Anamorphic correction 1.33x, 1.5x, 1.66x, 2.0x
Automatically / manually rotate and rotate the image
Cross-conversion
Focus assistant (colors) and focus picking with adjustment
False Color: Spectrum, ARRI-style and with tinctures
Zebra: Dual, with setting
Waveform
RGB parade
Histogram: Luma and RGB
Static image
Custom LUTs, LUT import via USB / SD card
Audio metrics up to 8 channels
and others.
Display diagonal: 7.0 "/ 17.8 cm
Ratio: 16: 9
Viewing angle: 160 °
Max. brightness: 1000 cd / m2
Contrast: 1000: 1
Color: 10-Bit (1.07 billion colors)
PPI: 323 ppi
Color Gamut: 75% DCI-P3
Functions: False Color, Focus Peaking, Histogram
Pixel-to-Pixel Zoom, RGB Parade, Waveform, Zebra, Vectorscope and others.
I / O
Video: 1x HDMI Type A input
Audio: HDMI built-in; 1x 1/8 "/ 3.5mm Headphone output
Power supply: 1x Barrel Out
Other: 1x USB 2.0 (Micro-USB)
Supported video formats:
HDMI (8- / 10- / 12-Bit):
UHD 4K: 30 / 29.97 / 24 / 23.98
1080p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
1080i: 120 / 119.88 / 100/60 / 59.94 / 50
720p: 120 / 119.88 / 100/60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
576p: 200/100/50
480p: 240 / 239.76 / 120 / 119.88 / 100/60 / 59.94
NTSC: 240 / 239.76 / 120 / 119.88 / 100/60 / 59.94
PAL: 200/100/50
Wireless receiver:
Delay: <1 ms (0.001 sec)
Video:
1080p: 60 / 59.94 / 50/30 / 29.97 / 24 / 23.98
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50
576p: 50
576i: 50
480i: 60 / 59.94
Audio: 48 kHz, 24-Bit PCM
Wi-Fi: 5 GHz, AFS, AES-128
Working distance: up to 150 m in line of sight
Box contents
Rubberized handles
Belt
Charger
Screen protector
Micro HDMI - HDMI cable
