Description

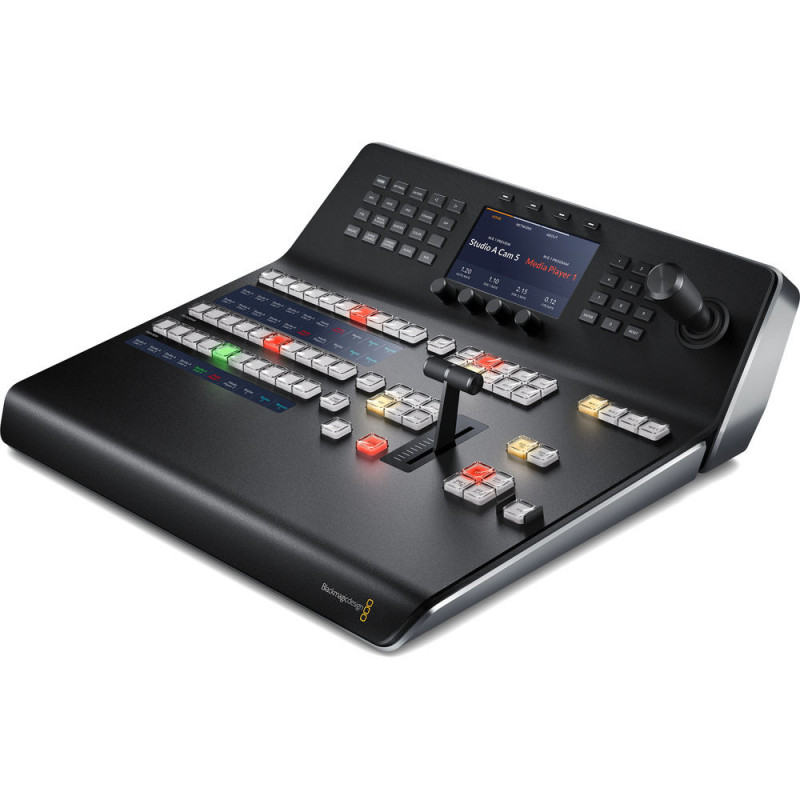

Blackmagic Design ATEM 1 M / E Advanced Panel is a full-featured compact hardware control panel for Blackmagic ATEM sweatshirts. It connects to sweatshirts via Ethernet and provides manual tactile control, which is essential in broadcast.

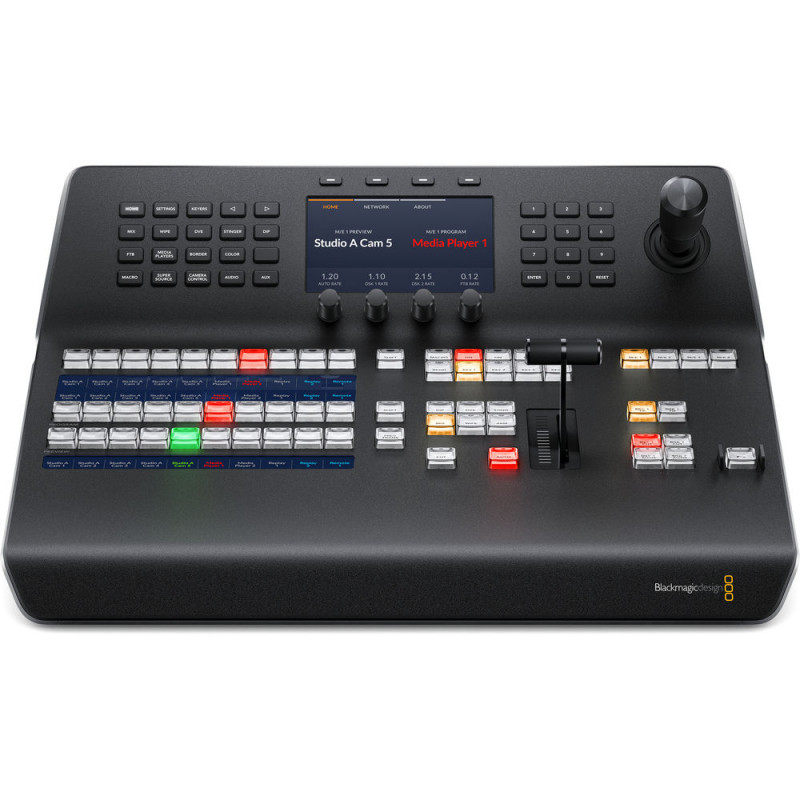

The intuitive control interface consists of an information display surrounded by soft menu buttons and rotating encoders.
In addition to the main display of the Blackmagic Design ATEM 1 M / E Advanced Panel, an individual LCD is available for each programmable button to indicate the set function, and in addition, different colors can be set on the backlit buttons. The buttons themselves have a curve to minimize the possibility of wrong pressing.

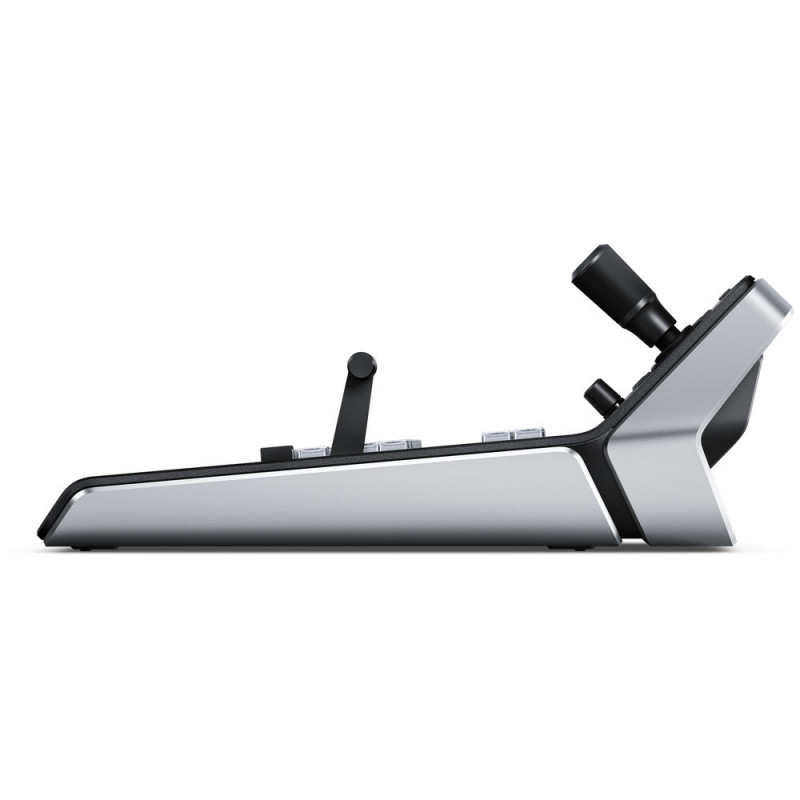

Dynamic real-time controllers are available in the form of a single 3-axis joystick and a large fader bar. Use the joystick to remotely control PTZ cameras or effects, and the T-bar to adjust transitions and more.

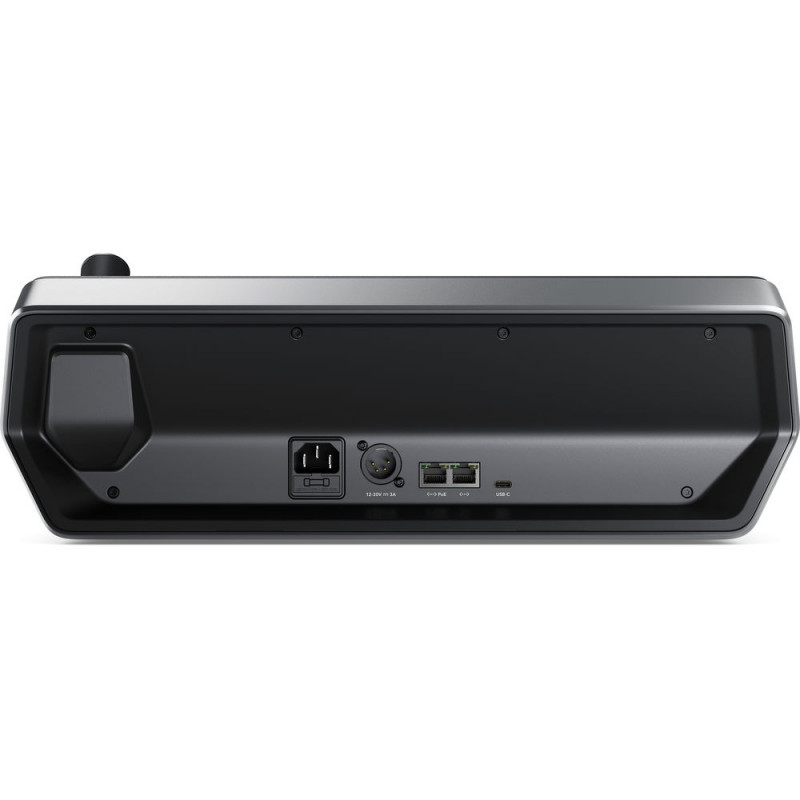

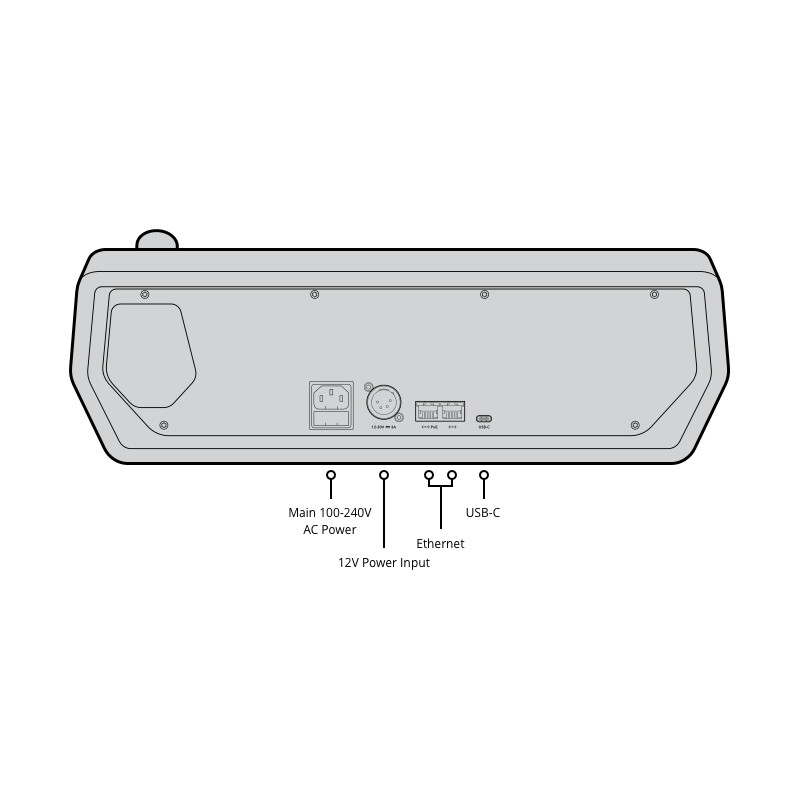

At the back of the Blackmagic Design ATEM 1 M / E Advanced Panel are two Ethernet ports, a USB port for firmware updates and power inputs. Use the IEC input to connect to the mains and the 4-pin XLR 12V input to DC power.
Compatible OS:
macOS 10.14 Mojave, 10.15 Catalina or later
Windows 10, 64-bit
2x Ethernet RJ45, 10/100/1000 BaseT with loop
1x USB Type-C (Firmware Upgrade)
10x Input buttons (20x with Shift)
10x Direct Cross Points
20x Shifted Cross Points
3 lines with 24 characters LCD Crosspoint Label
DSK Transition Selectors: Auto, Cut, Tie / Preview
4x On-Air Indicators
1x Preview Transitions
20x Menu Controls
10x Dedicated Macro Buttons
Destination Bus
Source Bus
Controllers:
1x 3-axis joystick
1x numeric keypad
1x Fader Bar
Power supply:
Redundant Power
45 W
Size: 38.9 x 43 cm
Weight: 5.7 kg
