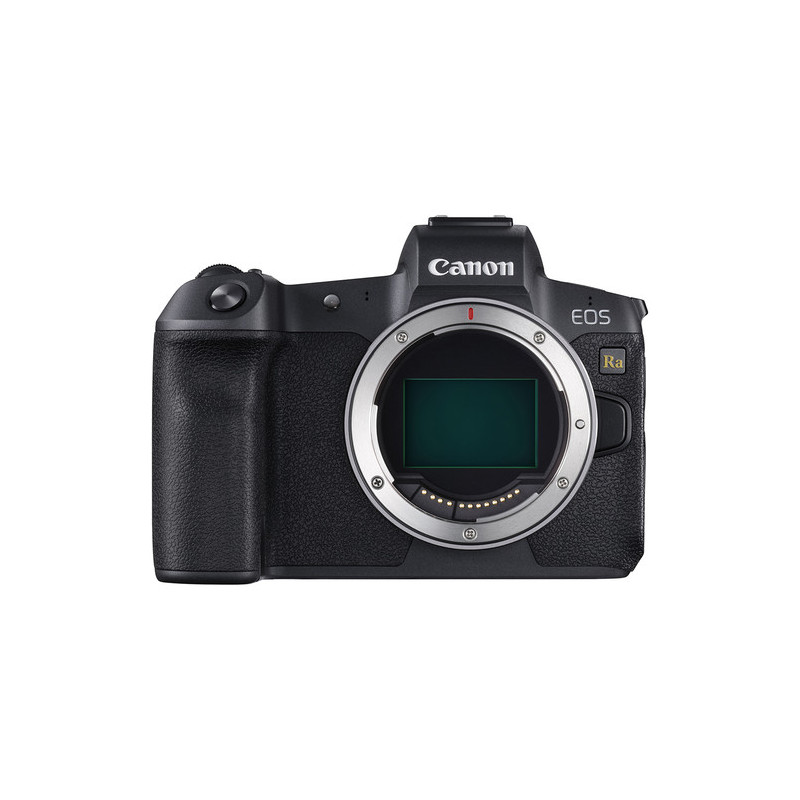

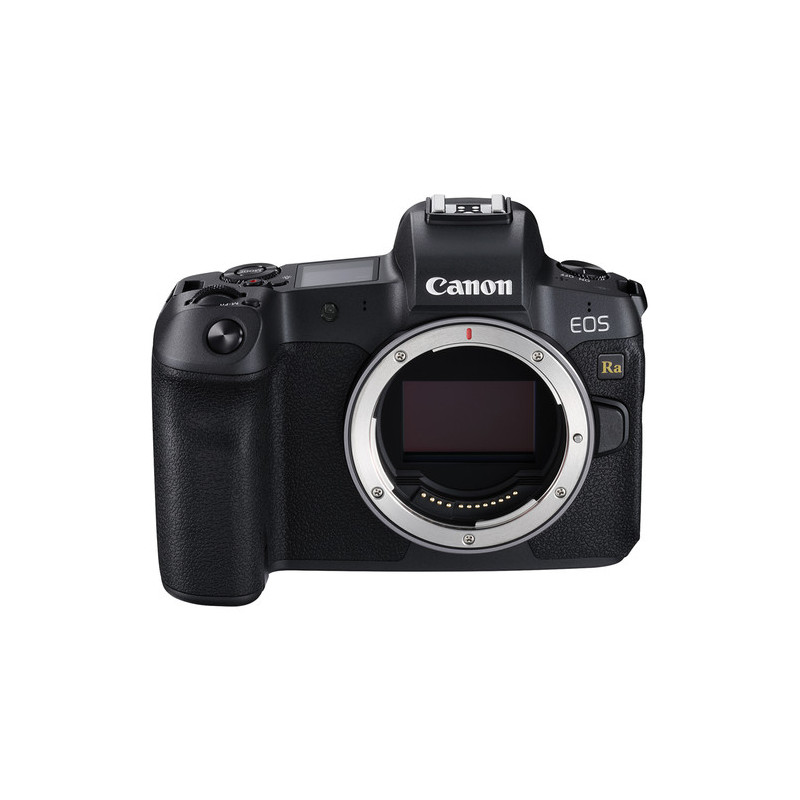

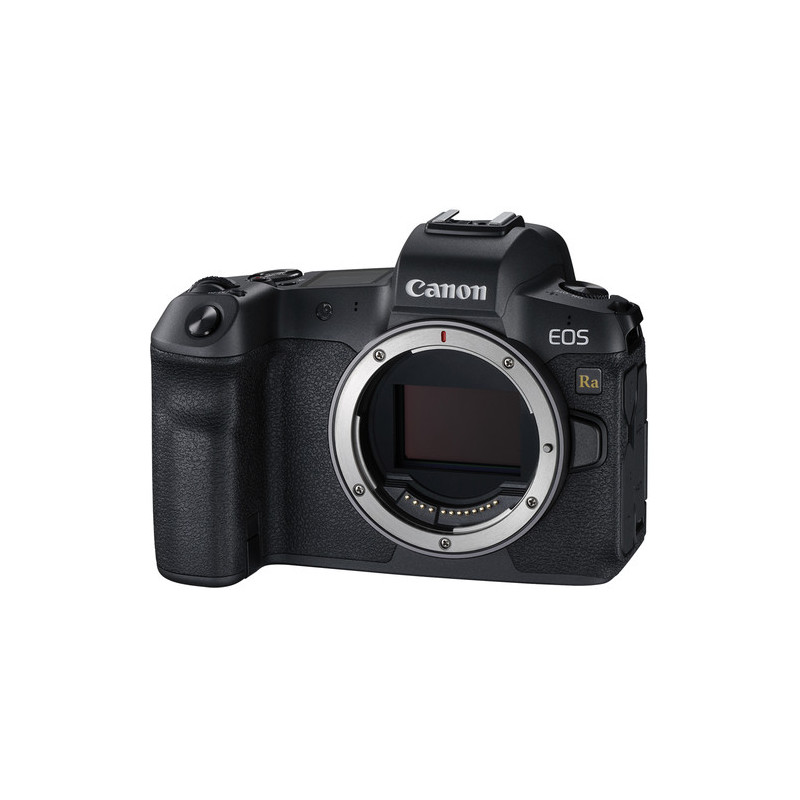

Camera Canon EOS Ra Body

Code:100024170
Canon EOS Ra Body
Canon EOS Ra Body Canon EOS Ra Body Canon EOS Ra Body Canon EOS Ra Body
  • Especially suitable for astrophotography
  • Optical IR cut filter of the sensor
  • 30x magnification in Live View mode
  • 30.3MP (CMOS Bayer RGB)
  • Full-Frame (36 x 24mm)
  • 4K UHD (3840x2160) 30p
  • 3 690 000t. (0.71x) OLED viewfinder
  • 5,655 point hybrid AF
  • Canon RF Compatibility
  • 8fps at 30.3MP
  • 1 / 8000s Max. speed
  • 1 / 200s X-speed
  • 1x SD / SDHC / SDXC (UHS-II)
  • 100-40000 ISO (50-102400)
We can't offer you this product at the moment. - View other similar products

Description

The Canon EOS Ra is designed specifically for capturing the starry sky. This is a modified version of the original mirrorless camera with interchangeable optics Canon EOS R, which includes an optical infrared filter in front of the sensor for quality astrophotography of distant nebulae and other astronomical phenomena.

By adding this special filter, the EOS Ra provides approximately 4-fold improved transmission and sensitivity to H-alpha (656.28nm) wavelength to display nebulae and other objects without unwanted infrared contamination for greater color neutrality.

In addition to the IR-Cut filter, a 30x magnification setting has been added in Live View for improved focusing accuracy on distant subjects when working with the viewfinder or display. With the exception of these two differences, the Canon EOS Ra and EOS R offer the same set of basic features to create high resolution and well-detailed images.

Characteristics

Sensor 36 x 24 mm CMOS sensor 3: 2
Effective Pixels Approx. 30.3 megapixels
Vibration Reduction ...
Picture Resolution JPEG: Aspect Ratio 3: 2 (L, RAW, C-RAW) 6720 x 4480, (M1) 4464 x 2976, (S1) 3360 x 2240, (S2) 1696 x 1280 1.6x (crop) (L) 4176 x 2784, (S2) 2400 x 1600 Aspect Ratio 4: 3 (L) 5952 x 4480, (M1) 3968 x 2976, (S1) 2976 x 2240, (S2) 2112 x 1600 Aspect Ratio 16: 9 (L) 6720 x 3776 , (M1) 4464 x 2512, (S1) 3360 x 1888, (S2) 2400 x 1344 Aspect Ratio 1: 1 (L) 4480 x 4480, (M1) 2976 x 2976, (S1) 2240 x 2240, (S2) 1600 x 1600
File Formats JPEG: 2 RAW compression options: RAW, C-RAW and Dual Pixel RAW (14 bit, original Canon RAW, 3rd edition) Compatible with Exif 2.31 and Design rule for Camera File system 2.0 Compatible with Digital Print Order Format [DPOF] version 1.1
Lenses
Lens Mount RF (EF and EF-S lenses can be mounted via Mount Adapter EF-EOS R, Control Ring Mount Adapter EF-EOS R, Drop-In Filter Mount Adapter EF-EOS R. EF-M lenses are not compatible)
Compatible Lenses All RF lenses (EF and EF-S via lens adapters)
Focusing
AF Phase difference detection system with capture sensor (Dual Pixel CMOS AF)
AF Mode AF with single frame Servo AF
AF Zones Automatic selection: face + tracking Manual selection: 1-point AF (AF frame size can be changed) Manual selection: AF point extension, 4 points (top, bottom, left, right) Manual selection: AF point Extend the surrounding Manual selection: Zone AF (all AF points divided into 9 focus areas) Manual selection: AF on a large area (vertical) Manual selection: AF on a large area (horizontal)
Viewfinder
Viewfinder Type 0.5-inch OLED color EVF 3.69 million dots (1280 x 960)
Viewfinder Coverage Approx. 100%
Viewfinder Magnification Approx. 0.76x
Diopter Adjustment –4 to +2 m-1 (diopter)
Display
Display Screen 8.01 cm (3.15 ") Clear View LCD II, approx. 2.1 million dots Capacitive method with menu control, settings for quick control, playback and zoom. Select AF point for photos and movies, for taking still images is possible with a touch trigger.
Playback (1) Single image (2) Single image with information (2 levels) Basic - shooting information (shutter speed, aperture, ISO and image quality) Detailed - shooting information (shutter speed, aperture) aperture, ISO, image measurement, file quality and size), lens information, brightness and RGB histogram, white balance, image style, color space and noise reduction, optical lens correction, GPS information, IPTC information ( 3) Group of 4 images (4) Group of 9 images (5) Group of 36 images (6) Group of 100 images (7) Skip between images (1, 10 or 100 images, date, folder, video, photos, protected images, category) (8) Video editing (9) RAW processing (10) Category
Exposure
ISO Automatically 100 - 40 000 (in 1/3 step or whole step) ISO can be expanded to L: 50, H1: 51 200, H2: 102 400
Shutter Electronically controlled shutter in the focal plane and indications of a silent CMOS sensor
Shutter Speed 30-1 / 8000 s (every 1/2 or 1/3 step), Unlimited exposure (Full shutter speed range. The available range varies depending on the shooting mode.)
Light Metering Real-time with sensor sensor, measurement in 384 zones. (1) Evaluation measurement (related to all AF points) (2) Partial measurement (approx. 6.1% in the center of the viewfinder) (3) Point measurement: point measurement in the center (approx. 2.7% in the center of the viewfinder) ) No spot measurement available at AF point (4) Center-weighted average EV-3 - 20 (at 23 ° C, ISO100, with evaluation measurement)
Exposure Modes Photos; Intelligent Scene Auto Mode, AE with Flexibility Priority, AE Program, AE with Shutter Priority, AE with Aperture Priority, Manual, Unlimited Exposure and Custom (x3) Movie: Intelligent Scene Auto Mode, Program with AE, AE with shutter priority, AE with aperture priority, manual, unlimited exposure and custom (x3)
Continuous Shooting Max. Approx. 8 fps speed is supported for 100 JPEG, 47 RAW, 78 C-RAW images456 Max. 5 fps with AF tracking
White Balance AWB (Atmospheric Priority / White Priority), Daylight, Shade, Cloudy, Tungsten, White Fluorescent Light, Flash, Custom, Color Temperature Adjustment White Balance Adjustment: 1. Blue / Amber +/- 9 2 Magenta / green +/– 9 +/- 3 levels in increments of one level 3, 2, 5 or 7 frames per wedge at one shutter release Selective correction blue / amber or magenta / green
Flash
Flash Control E-TTL II automatic flash, manual metering
Flash Modes ...
Flash Compensation +/– 3 EV in 1/3 step with EX Series Speedlites
Max Sync Speed 1/200 s
Hotshoe Yes
Video
Video Format MP4 video: 4K (16: 9) 3840 x 2160, Full HD, HD MPEG4 AVC / H.264 variable (average) bit rate, audio: linear PCM
Compression MP4 video: 4K (16: 9) 3840 x 2160, Full HD, HD MPEG4 AVC / H.264 variable (average) bit rate, audio: linear PCM 4K - YCbCr4: 2: 0 (8 bit) / HD - YCbCr4: 2: 0 (8 bit)
Video Resolution 4K (16: 9) 3840 x 2160 (29.97, 25, 24, 23.98 fps) intraframe or interframe7 Full HD (16: 9) 1920 x 1080 (59.94, 50, 29.97, 25 , 23,98 fps) Full frame (16: 9) 1920 x 1080 HDR (29,97, 25 fps) Full HD (16: 9) 1920 x 1080 (29,97, 25) light, interframe HD (16: 9) 1280 x 720 (119.9, 100 fps) in-frame compression
Sound Built-in stereo microphones (48 Khz, 16 bit x 2 channels)
Others
USB SuperSpeed USB 3.1, USB C connector
HDMI HDMI mini output (Type C, HDMI-CEC compatible)
Audio Input external microphone input / line input (stereo minijack)
Audio output headphone jack (stereo minijack)
Wi-Fi Wireless LAN (IEEE802.11b / g / n) (2.4 GHz only) with Bluetooth8 support Supported features - EOS Utility, smartphone, web upload, wireless printing
Bluetooth ...
Battery Pack Lithium-ion rechargeable battery LP-E6N (included) / LP-E6
Power Adapter Battery charger LC-E6E (included), AC adapter AC-E6N and DC connector DR-E6, AC adapter kit ACK-E6N / ACK-E6, car charger CBC-E6, USB power adapter PD -E1
Size 135.8 x 98.3 x 84.4 mm
Weight Approx. 580 g (660 g with card and battery)
Memory Card Type 1x SD / SDHC / SDXC and UHS-II
Dust Reduction EOS built-in cleaning system
Picture Modes Light tone priority Automatic brightness optimization (4 settings) Noise reduction during prolonged exposure High speed noise reduction at ISO (4 settings) (photo and video) Optical lens correction: - Peripheral lighting correction, chromatic aberration, distortion correction (during / after still images, video only) - Diffraction correction, digital lens optimization (during / after still images) Resize to M, S1, S22 Crop: JPEG images can be cropped (3: 2, 4: 3, 16: 9, 1: 1 ratios) - 45 selectable crop sizes, 11% to 95% (diagonal) - Switch between vertical and horizontal crop orientation - Image Alignment - The cropping frame can be moved by touch screen operations RAW image processing3 Multiple HDR exposure

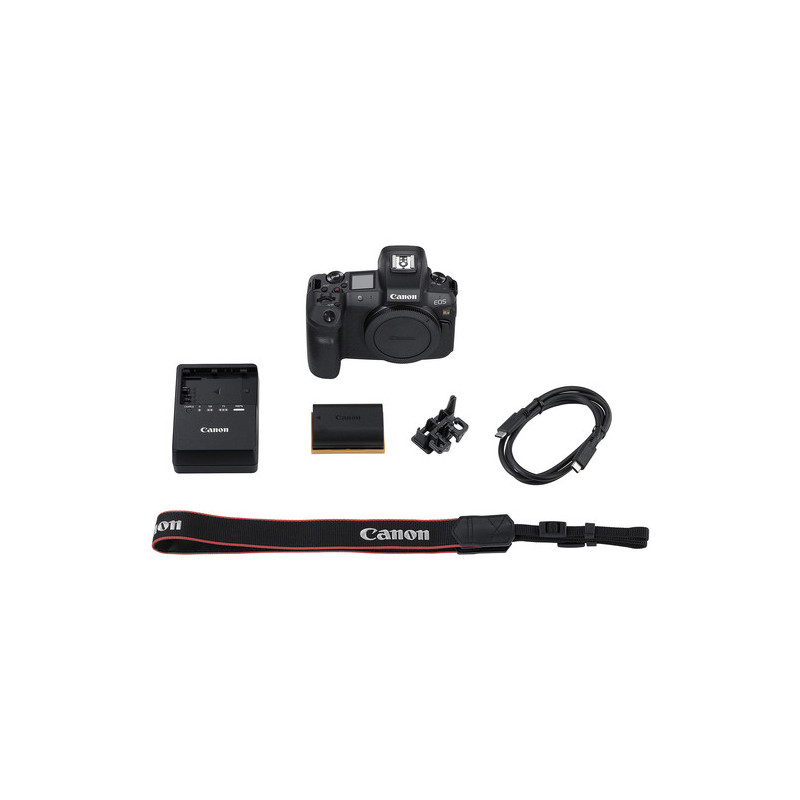

Box contents

Canon Eos Ra Body

RF-5 body cap
Belt
Battery charger LC-E6E
LP-E6N battery
Power cable
IFC-100U interface cable
