Description
Characteristics
| PANEL | |
| Type | LCOS reflective display, TFT active matrix |
| Size and number | 0.71 ”diagonal (15.4 mm x 9.6 mm), 3 panels |
| Image Ratio | 0.67361111111111 |
| Real resolution | 1920 x 1200 (WUXGA), 2 304 000 pixels |
| optics | |
| Lamp type | 330W NSHA |
| F / number and focal length of the lens | F1.89 - F2.65; f = 23.0 - 34.5mm (RS-IL01ST lens) |
| Increase and control | 1.5x motorized |
| Focus control | Motorized |
| Lens shift | Vertical: 3.5: 6.5 to 10.5: -0.5 (-15% to + 55%), motorized Horizontal: 4: 6 to 6: 4 (+/- 10%), motorized |
| IMAGE AND AUDIO | |
| Brightness | 5000 lumens (4000lm in silent mode) |
| Uniformity of brightness | 0.88 |
| Contrast ratio | 1000: 1 (full on / full off) |
| Projection distance | 1.3 m - 29.0 m (3.2 m - 4.8 m for 100 "image, RS-IL01ST lens) |
| Screen size | 40 "- 600" (86 x 54 cm - 1292 x 808 cm) |
| Digital zoom | 1x - 12x |
| Correction range for trapezoidal distortion | Vertical: + 20 ° to -11 ° Horizontal: +/- 20 ° |
| Digital RGB compatibility | WUXGA / UXGA / WSXGA + / SXGA + / WXGA + / WXGA / SXGA / XGA / SVGA / VGA |
| Analog RGB compatibility | WUXGA / UXGA / WSXGA + / SXGA + / WXGA + / WXGA / SXGA / XGA / SVGA / VGA |
| Digital video scanning system | 1080p / 1080i / 720p / 576p / 480p |
| Component video scanning system | 1080p / 1080i / 720p / 576p / 576i / 480p / 480i |
| Video / S-Video color system | PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM |
| Scanning frequency | Horizontal: 15 - 75 kHz, Vertical: 50 - 85 Hz, Clock: 162 MHz |
| Projection modes | Standard, Presentation, Dynamic, Bright Photos, Photo / sRGB, Video, Movie, Custom (with 5 preset modes) |
| Improve images | 12-bit digital gamma correction |
| Built-in speaker | 5.0 W RMS, mono |

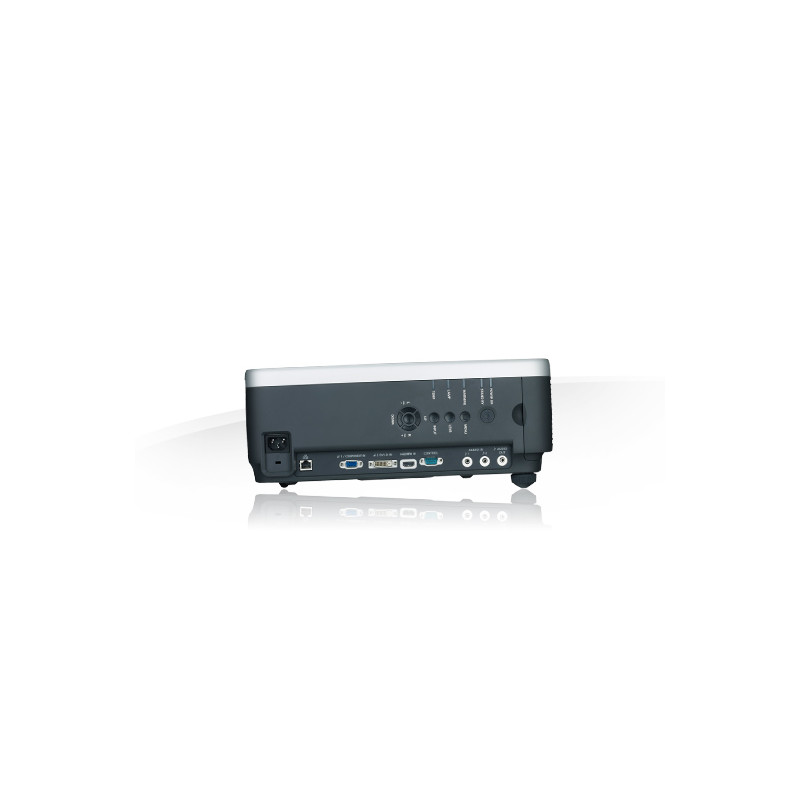

| PORTS AND CONNECTORS | |
| Digital RGB input | DVI-D 24-pin |
| Digital video and audio input | HDMI V1.3 (with Deep Color) |
| Analog RGB input | Mini D-Sub with 15 pins (component via optional adapter cable) |
| Audio Input 1 | 3,5 mm stereo mini jack |
| Audio Input 2 | 3,5 mm stereo mini jack |
| Audio output | 3.5 mm stereo mini jack (variable level) |
| Service port / Projector management | Mini D-Sub 9 output |
| Network port | RJ-45 |
| MECHANISMS | |
| Front lifting gear | Two rotating feet, 6 ° maximum image lift |
| NOMINAL VALUES | |
| Dimensions (W x L x H) | 380 mm x 170 mm x 430 mm |
| WEIGHT | 8.5 kg (without lens) |
| Power | 100 V - 240 V AC, 50/60 Hz |
| Power consumption | Normal mode: 450 W / Silent mode: 365 W / Standby: 1.7 W / Standby (LAN off): 0.35 W |
| Noise level | Normal mode: 40 dBA / quiet mode: 36 dBA |
| Working environment | from + 5 ° C to + 35 ° C |
| Storage environment | -10 ° C to + 60 ° C |
