Description

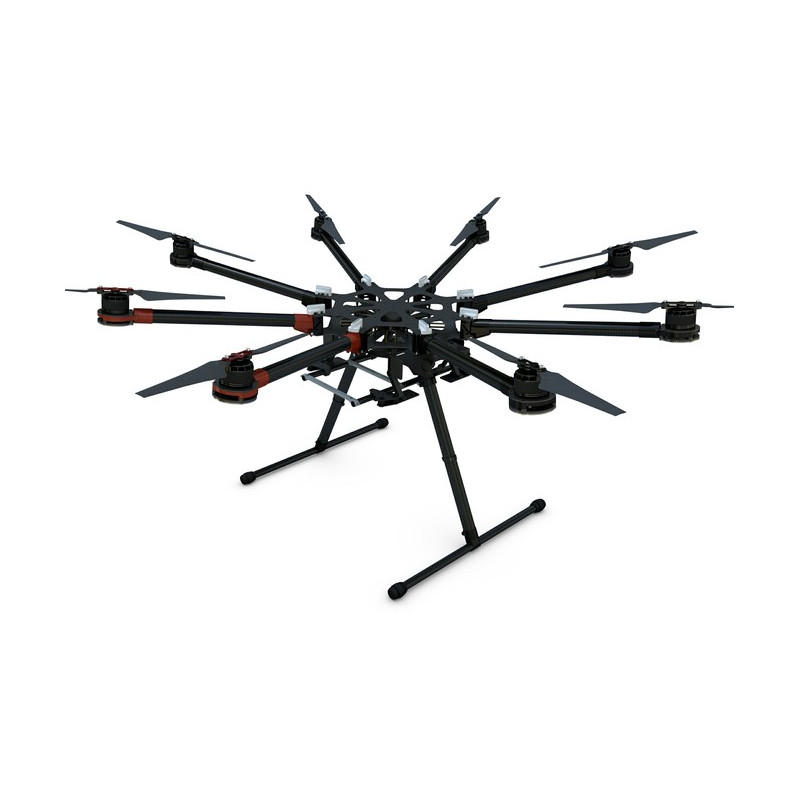

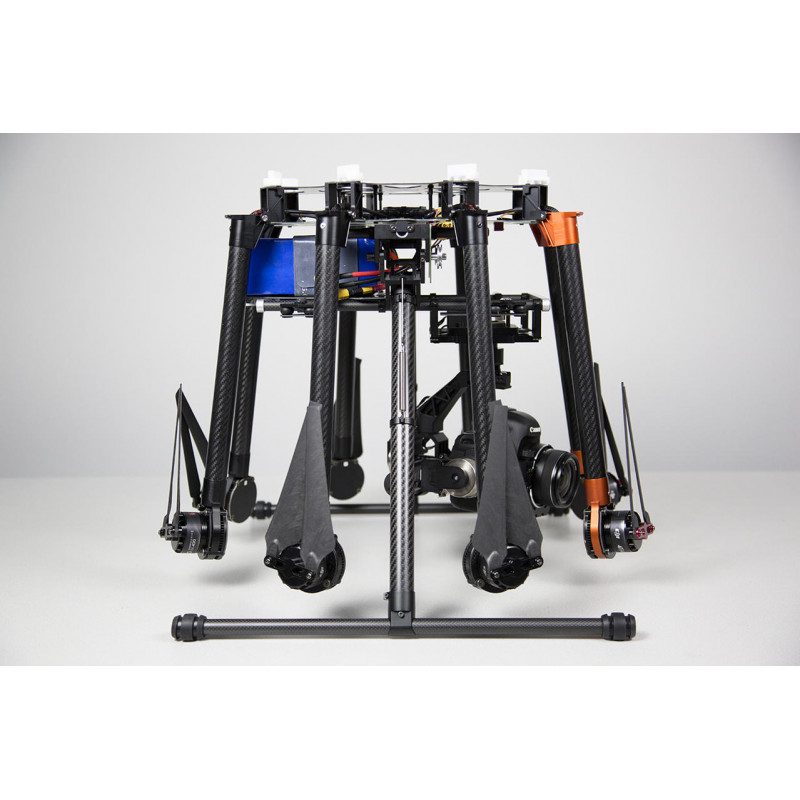

The latest model of the DJI octocopter - Spreading Wings S1000 + The S1000 + is a fully upgraded platform that takes the best of the S900 and makes it an exceptional octocopter that has no competition in precision and flight safety. The S1000 + is professional-oriented and can fly seamlessly with digital cameras like the Panasonic GH4 / GH3, or the Zenmuse Z15 (GH4) gyro stand, respectively. With the Spreading Wings S1000 + you get the most powerful brushless DJI motors as well as their corresponding ESC controllers.Specifications
Frame
Size diagonally
1045 mm
Shoulder length
386 mm
Weight on one arm (including motor, fin and controller)
325 gr
Diameter of the central platform
337 mm
Center platform weight (including legs and servo)
1330 gr
Foot sizes
460 mm (length) × 511 mm (width) × 305 mm (height)
Engines
Dimensions of the stator
41 x 14 mm
KV
400 rpm
Maximum power
500W
Weight (with cooling fan)
158 gr
Motor controllers
Working current
40A
Signal frequency
30Hz ~ 450Hz
PWM frequency
8KHz
Weight (with radiator)
35 g
Perks
Material
reinforced plastic
Dimensions
15 × 5.2 inches
Weight per blade
13 gr
Flight
Maximum flight weight
11 kg
Total weight
4.4 kg
Battery
LiPo 6S capacity 10000mAh-20000mAh
Maximum consumption
4000W
Power required in flight
1500W (at 9.5 kg flight weight)
Flight time
15 minutes (with 15000mAh battery and weighing 9.5 kg)
Ambient temperature
from -10 ° C to +40 ° C
Empowerment
With controller A2
Basic: Roll 120%, Pitch 120%, Yaw 120%; Attitude: Roll 170%, Pitch 170%, Vertical 120%
With WooKong-M controller
Basic: Roll 130%, Pitch 130%, Yaw 120%; Attitude: Roll 180%, Pitch 180%, Vertical 120%
Compatible DJI equipment
Controllers
A2 & WooKong-M
Gyro-stabilized camera stands
Zenmuse Z15, Z15-GH4 (HD), Z15-GH3, Z15-BMPCC, Z15-5D, Z15-5D III HD
System for transmitting HD video in online mode
DJI Lightbridge
Telemetry system
iOSD MARK II
A2 Flight Controller
GPS-Pro Compass
High-sensitivity IMU (inertia measurement module) with integrated anti-vibration system
2.4GHz DR16 built-in receiver
Supports DJI D-BUS adapter
Dual CAN bus system
9 types of multicopter and custom multicopter scheme
Flexible adjustment of input channels
Different flight modes with automatic switching
Power management module
Advanced Fail-Safe features and automatic return / automatic landing
Single engine failure protection
Intelligent chassis control
Intelligent Orientation Control (IOC)
Bluetooth module and new smartphone app
Ground control station with 50 control points
Compass error warning
Supports optional DJI devices
Box contents
Dji S1000 Premium Octocopter + A2 Controller + Zenmuse Z15 Gh4-Hd Stand
Octocopter flying platform DJI S1000 +
DJI Flight Controller WooKong-M
Zenmuse Z15 HG4-HD Professional Stand for Digital Camera
Eight ESC 40A OPTO pieces
Eight 4114 PRO electric motors
Eight propellers
Landing Gear
Octocopter flying platform DJI S1000 +
DJI Flight Controller WooKong-M
Zenmuse Z15 HG4-HD Professional Stand for Digital Camera
Eight ESC 40A OPTO pieces
Eight 4114 PRO electric motors
Eight propellers
Landing Gear
