| Sensor | APS-C format (22.3 x 14.9mm) 18.7 megapixel CMOS sensor |
| Effective resolution | 18.0 megapixels |
| ADC | 14-Bit |
| Color space | Adobe RGB, sRGB |
| Image format | RAW: RAW (14bit, Canon original RAW 2nd edition), JPEG: Fine, Normal (Exif 2.30 compatibility) / Design rule for Camera File (2.0); RAW + JPEG: High resolution RAW + JPEG |
| Resolution when recording images | RAW: (RAW) 5184x3456; JPEG 3: 2: (L) 5184x3456, (M) 3456x2304, (S1) 2592x1728, (S2) 1920x1280, (S3) 720x480JPEG 4: 3: (L) 4608x3456, (M) 3072x2304, (S1) 2304x1728, (S2) ) 1696x1280, (S3) 640x480JPEG 16: 9: (L) 5184x2912, (M) 3456x1944, (S1) 2592x1456 (S2) 1920x1080, (S3) 720x400JPEG 1: 1: (L) 3456x3456, (M) 2304x2304, (S1 ) 1728x1728, (S2) 1280x1280, (S3) 480x480 |
| Video recording | MOV [Video: H.264 + Sound: Linear PCM] 1920 x 1080 (29,97, 25, 23,976 fps) 1280 x 720 (59,94, 50 fps) 640 x 480 (30, 25 fps) |
| Record sound | Linear PCM |
| Compatible with lenses | All EF and EF-S lenses |
| Bayonet | Canon EF / EF-S mount |
| Equivalent focal length ratio to Laika frame format (36 x 24mm) | 1.6x (APS-C) |
| Image stabilization | Yes (with Canon IS lenses) |
| Type | TTL-CT-SIR with CMOS sensor; 9 AF points (f / 5.6 with cross center AF point, additional sensitivity at f / 2.8) |
| Work modes | Intelligent single frame AFAFNext object AF; Focus point selection: Automatic selection, manual selection |
| Pre-lifting the mirror | Yes |
| Light sensitivity | ISO 100 - 6400 in 1 EV increments with an extension to H (approx. 12800) in 1 increments |
| Shutter type | Focusing shutter with vertical stroke and electronic control |
| Shutter speed | 30-1 / 4000 s (in 1/2 or 1/3 steps), Unlimited exposure (Full shutter speed range. Available range varies depending on shooting mode.) |
| Light meter | TTL maximum aperture measurement with 63-zone SPC system (1) Estimated measurement (at each AF point) (2) Partial centering (approx. 9% of viewfinder) (3) Spot metering (approx. 4 % of viewfinder in center) (4) Center priority averaged range: EV 1-20 (at 23 ° C with 50mm f / 1.4 ISO100 lens) |
| Exposure modes | Intelligent Scene Auto Mode, No Flash, Creative Auto, Portrait Photo, Landscape Photo, Close-up, Sports Scene, Night Portrait, Video, AE Program, AE Priority Aperture, AE Aperture Priority, Manual, A- DEP |
| White balance | Automatic, Daylight, Shadow, Cloudiness, Tungsten, White Fluorescent Light, Flash, Custom. White Balance Correction: 1. Blue / Amber +/- 92. Magenta / Green +/- 9 +/- 3 levels in one level step3 frames per wedge at one shutter releaseSet Correction Blue / Amber or Magenta / Green |
| Top number (m) | 13 m at ISO 100 |
| Ready shot templates | Intelligent Scene Auto Mode, No Flash, Creative Auto, Portrait Photo, Landscape Photo, Close-up, Sports Scene, Night Portrait, Video, AE Program, AE Priority Aperture, AE Aperture Priority, Manual, A- DEPLight PriorityAutomatic Brightness Optimization (4 settings) Long Noise ReductionLong noise reduction at high ISO sensitivity (4 settings) Auto lens vignetting mode Mode Ground Zone + (Atmosphere Shooting, Shooting by lighting or scene type) Creative filters (Grainy black and white, Soft focus, Toy camera, Thumbnail effect, Fish-eye effect) - Playback only |
| Flash control | E-TTL II with EX Series Speedlite flash, multi-flash wireless control |
| Built-in flash | Auto, Manual flash, Built-in Speedlite transmitter |
| Synchronous shutter speed | 1/200 s |
| Contact for external flash | Yes - standard Hot Shoe |

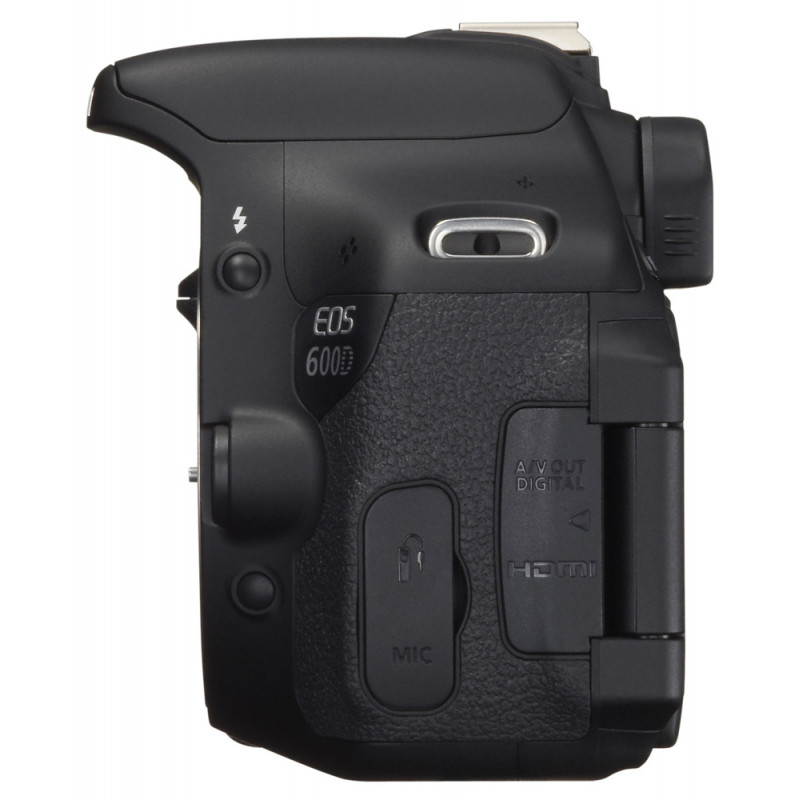

| Interface | Video output (PAL / NTSC) (integrated with USB port), HDMI mini output (HDMI-CEC compatibility), External microphone (3.5mm stereo mini jack) |

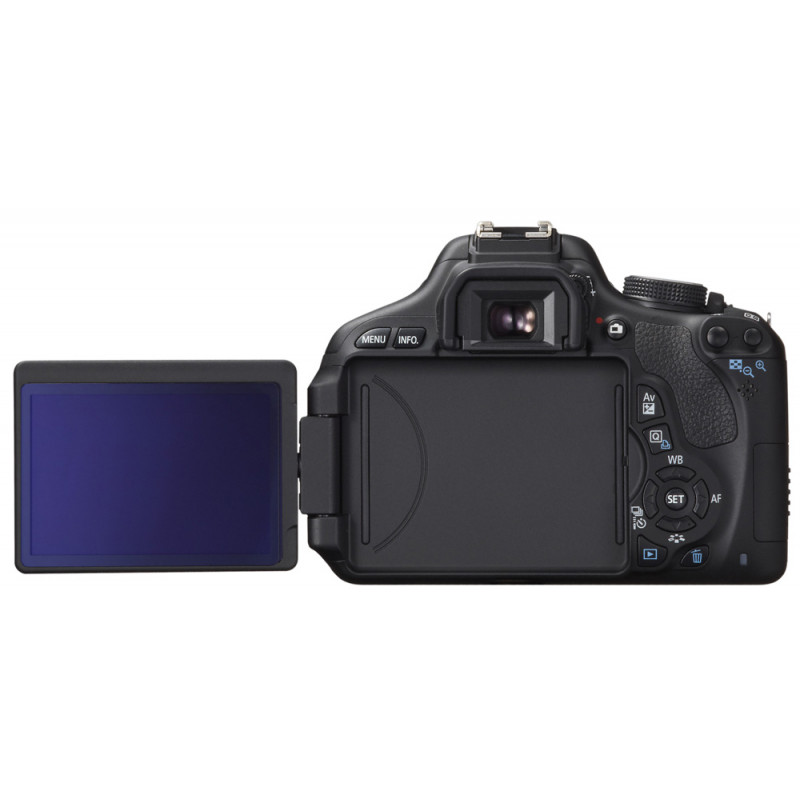

| Display | 7.7 cm (3-inch) movable, approx. 1,040,000 dots TFT LCD with 170 ° viewing angle, approx. 100% frame coverage and brightness control |
| Serial pictures | Max. Approx. 3.7fps for approx. 34 JPEG images, 6 RAW images |
| Self-timer | 2s, 10s + remote, 10s + photo series 2-10 |
| Status display | None |
| Internal memory | None |
| Compatible storage media | SD (Secure Digital), SDHC and SDXC |
| Battery | Li-ion LP-E8 with four levels of charge checking |
| Remote control | RS-60E3 remote trigger, RC-6 remote control and more. - optional |
| Dimensions | 133.1 x 99.5 x 79.7 mm |
| WEIGHT | 570g (with battery and card) |
